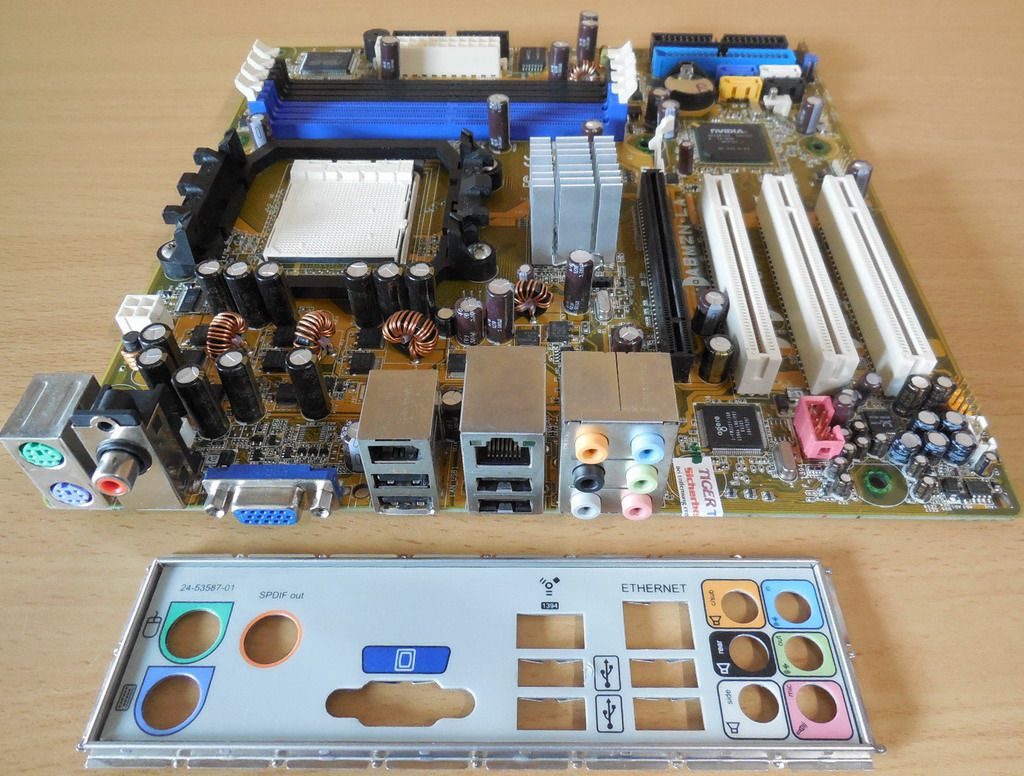

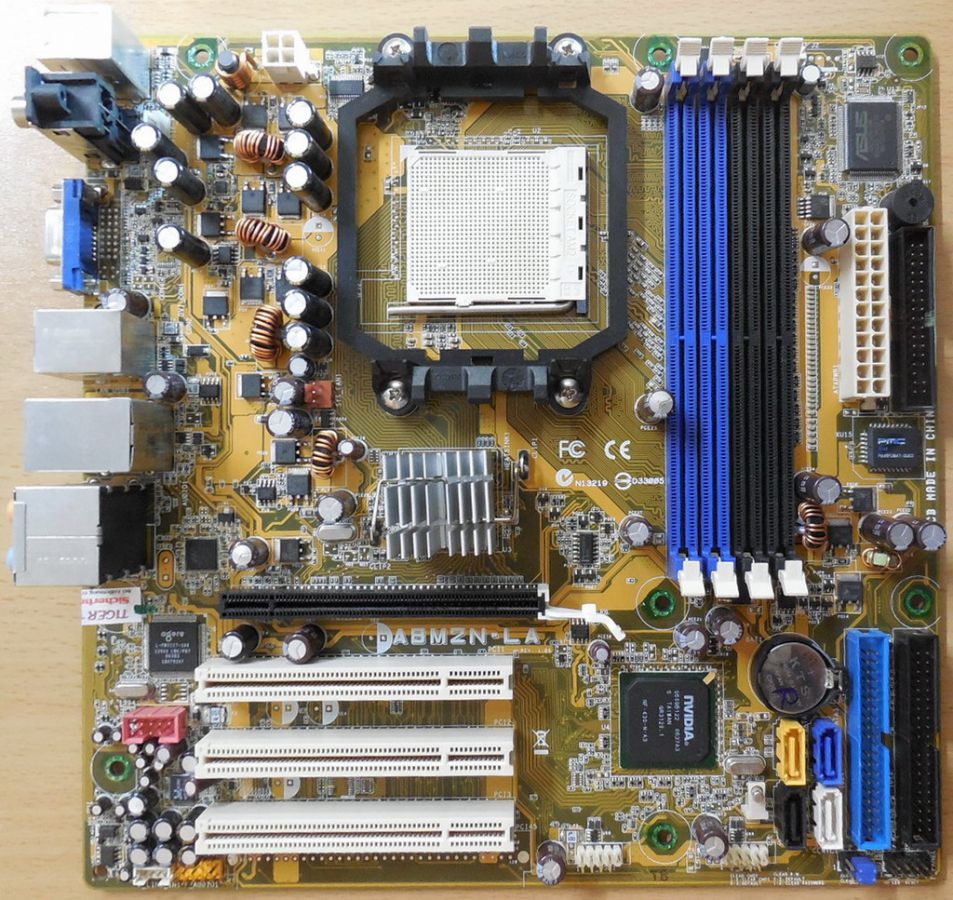

Asus A8M2N-LA Rev 1.06 Mainboard +Blende Sockel AM2 HP NodusM 5188-5622* m861

Asus A8M2N-LA Rev 1.06 Mainboard + Blende Sockel AM2 HP NodusM 5188-5622

Technische Daten

Motherboard manufacturer's name: ASUS A8M2N-LA Rev 1.06

HP/Compaq name: NodusM-GL8E

CPU/Processor

Socket AM2 AMD Athlon 64 / Athlon 64 X2 up to 5200+ / AMD Sempron

Front-side bus (FSB)

2000 MegaTransfers/second

Chipset

GeForce 6150 LE chipset

BIOS features

Award brand system BIOS

Keyboard combination to used to enter BIOS: F1

Form factor

Micro-ATX: 9.6 in X 9.6 in

Memory

Four 240-pin DDR2 DIMM sockets

Supports PC 4200 (533 MHz) and PC2 5300 (667 MHz) DDR2 DIMMs non-ECC memory only, unbuffered

Maximum HP/Compaq approved memory is 4 GB

Expansion slots

Three PCI

One PCI Express x16 graphics

Video graphics

Integrated

Serial ATA

4 x SATA-150 connectors

Onboard Audio

Built-in ALC888 High Definition 8-channel audio

Onboard LAN

10/100 Marvell 88EC031

Back I/O ports

Figure 2: Back I/O panel

1 x PS/2 keyboard(purple)

1 x PS/2 mouse (green)

1 x SPDIF coaxial out

1 x Sub-D VGA

1 x IEEE 1394

1 x RJ-45 Network (LAN)

4 x USB 2.0

Audio: Center/Subwoofer (yellow orange)

Audio: Rear Speaker Out (black)

Audio: Line In (light blue)

Audio: Line Out (lime)

Audio: Microphone(pink)

Audio: Side Speaker Out (gray)

Internal Connectors

1 x 24-pin ATX power connector

1 x 4-pin ATX power connector

2 x PATA connectors

4 x SATA connectors

1 x floppy drive connector

2 x 12V Fan connectors for CPU fan and PC fan

1 x 9-pin header for power button, reset button, power LED, and HDD LED

1 x SPDIF output header

1 x front line input connector

1 x 9-pin audio header for headphone-out and microphone-in

2 x USB headers supporting 4 additional USB 2.0 ports or devices

1 x 1394a header

One jumper for resetting BIOS settings

One jumper to disable BIOS password checking

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
