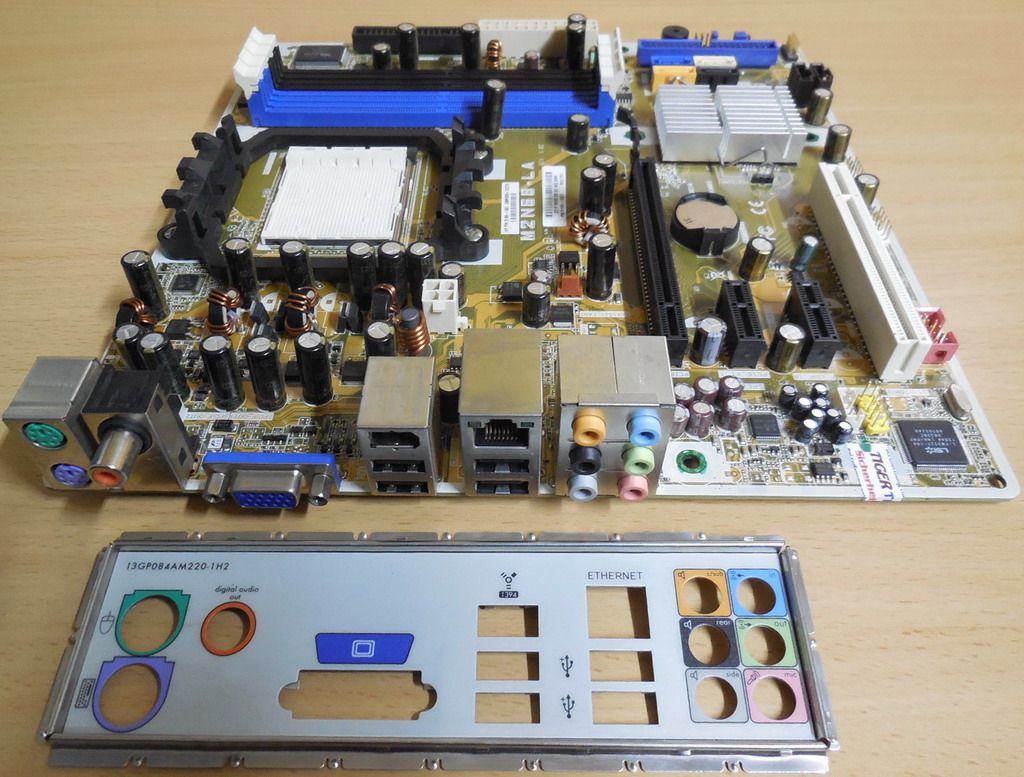

Asus M2N68-LA Rev 3.02 Mainboard +Blende Sockel AM2+ HP Narra3 5189-1661* m755

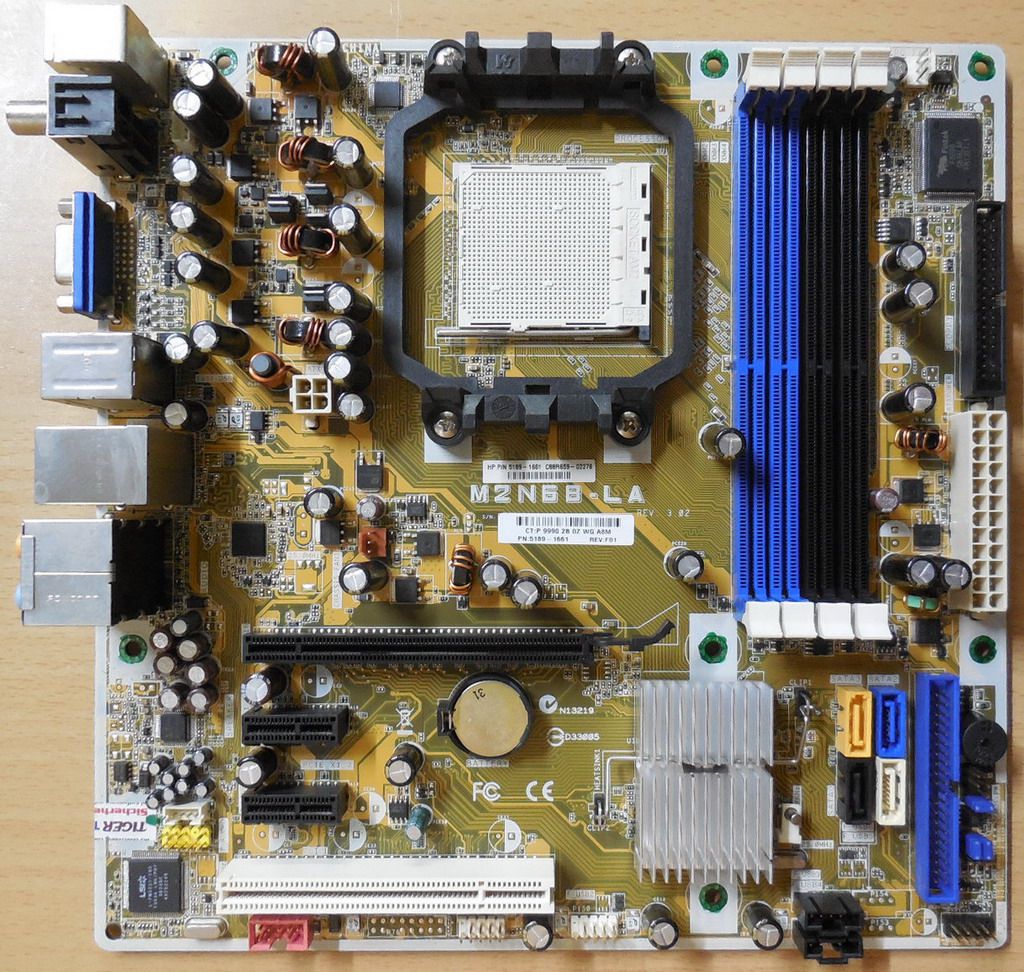

Asus M2N68-LA Rev 3.02 Mainboard + Blende alias HP Narra3-GL8E PN: 5189-1661 Sockel AM2+

Technische Daten

ausgebaut aus einem HP/Compaq SR5000 PC. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.

Manufacturer's motherboard name: Asus M2N68-LA (rev 3.02)

HP/Compaq name: Narra3-GL8E

Form Factor

Micro-ATX; 24.4 cm (9.6 inches) x 24.4 cm (9.6 inches)

Chipset

NVIDIA GeForce 6150SE nForce 430

Front-side bus speed

2000MT/s (2.0 GT/s)

Processor upgrade information

Socket type AM2+

Motherboard supports the following processor upgrades

Phenom with Quad Core (Agena) technology (AM2+) up to 9600 (up to 95 watt)

Athlon 64 X2 with Dual Core technology X2 up to 5600+ (up to 89 watt)

Athlon 64 less than 4000+

Sempron less than 3800+

Memory upgrade information

Dual channel memory architecture

4 x 240-pin DDR2 DIMM sockets supporting 2GB DDR2 DIMMs each

Supported DIMM types are PC2-5300 (667 MHz) and PC2-6400 (800 MHz) Non-ECC memory only, unbuffered

Supports up to max. 8GB on 64 bit PCs. Supports up to max. 4GB* on 32 bit PCs.

*32 bit PCs cannot address a full 4.0 GB of memory

Video

Integrated graphics using nVidia GeForce 6150SE

Up to 256MB (with 512MB or more PC memory)

Also supports PCI Express x16 graphics cards*

*Integrated video is not available if a graphics card is installed.

Audio

Integrated Realtek ALC888S Audio CODEC

8 channel High-Definition Audio

Network

10-Base-T Ethernet LAN Integrated into motherboard

Realtek RTL8201N Technology with Data transfer speeds up to 10/100Mb/s

Expansion Slots

1 x PCI Express x16

2 x PCI Express x1

1 x PCI

I/O Ports

Back I/O ports

Figure : Back I/O panel

PS/2 mouse (green)

PS/2 keyboard (purple)

SPDIF coaxial out

Video Graphics Adapter

IEEE 1394

RJ-45 Network (LAN)

Audio: Center/Subwoofer (yellow orange)

Audio: Rear Speaker Out (black)

Audio: Line In (light blue)

Audio: Line Out (lime)

Audio: Microphone (pink)

Audio: Side Speaker Out (gray)

4 x USB 2.0

Internal Connectors

1 x 24-pin ATX power connector

1 x 4-pin ATX power connector

1 x PATA connector (IDE)

4 x SATA connectors

1 x Floppy Drive connector (FDD)

2 x 3-Pin 12v FAN connectors for CPU FAN and PC FAN

1 x 9-Pin header for power button, reset button, power LED, and HDD LED

1 x SPDIF Digital Audio Output header

1 x front line input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)

1 x 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)

4 x USB headers supporting 6 additional USB 2.0 ports or devices

1 x 1394a header

1 x Intel High-Definition Audio/Modem Link (not used by HP)

1 x Jumper for resetting BIOS settings

1 x Jumper to disable BIOS password checking

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
