Asus M2N68-VM Rev2.01G Mainboard +Blende AMD Sockel AM2+ AM2 DDR2 VGA HDMI* m757

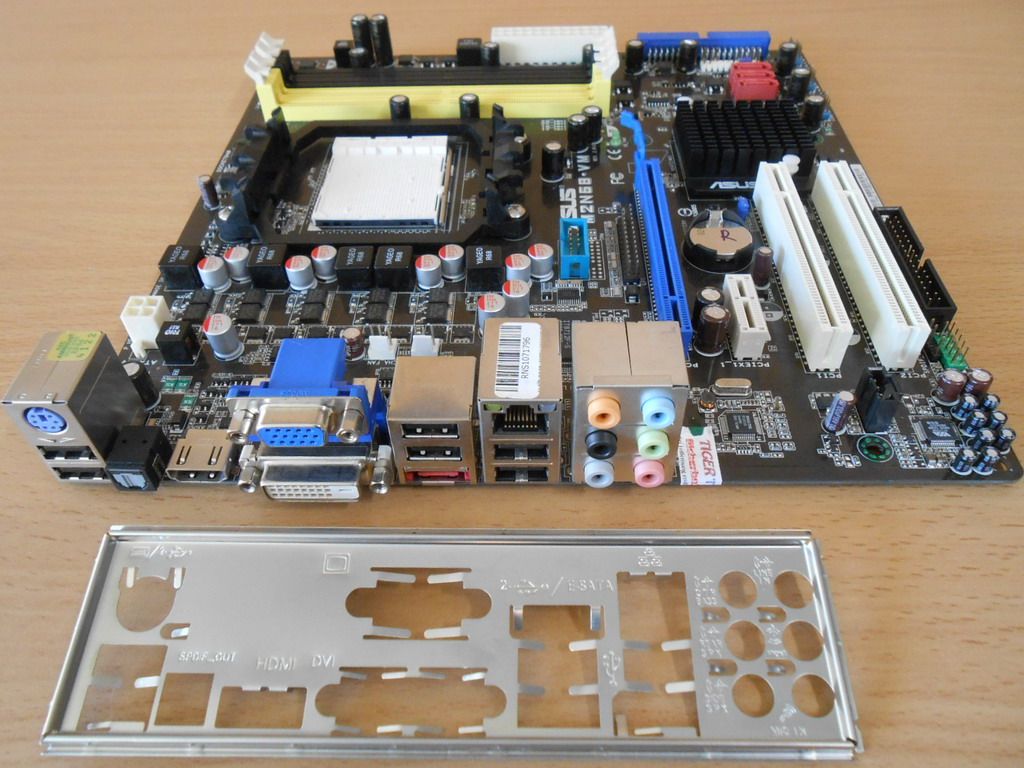

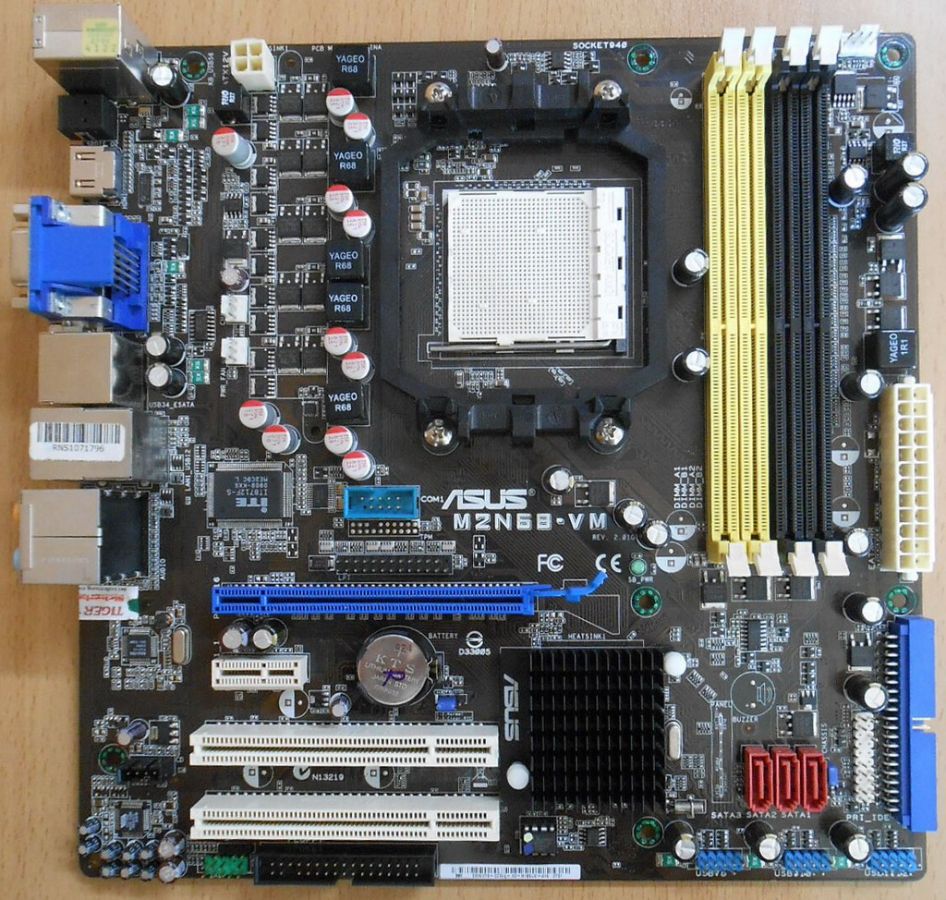

Asus M2N68-VM Rev 2.01G Mainboard + Blende

AMD Sockel AM2+ AM2 DDR2 VGA DVI HDMI

Technische Daten

Prozessor / CPU

Socket AM2+ / AM2 Processors

Athlon64 / Athlon64 FX / Athlon64 X2 / Sempron / Phenom FX / Phenom

AMD Cool 'n' Quiet™ Technology

AMD64 architecture enables simultaneous 32-bit and 64-bit computing

Support 45nm Phenom™ II CPU

Chipsatz

NVIDIA GeForce 7050PV / nForce 630a

System Bus

2000/1600 MT/s

Arbeitsspeicher

4 x 240-pin DIMM, max. 8 GB, DDR2 1066*/800/667/533 ECC, Non-ECC, Un-buffered Memory

Dual Channel memory architecture

*DDR2 1066 is supported by AM2+ CPU only

**Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)

***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Grafik

Integrated Nvidia® Geforce®7 Series Shader model 3.0 DirectX 9 graphics processor

Maximum shared memory of 256 MB

Supports RGB with max. resolution 1920 x1440 (@70Mhz*32bpp/75Mhz*16bpp)

Supports DVI-D with max. resolution 1920 x1200 (@60Mhz)

Supports HDMI™ Technology with HDCP compliant with max. resolution 1920 x 1080p*

*Due to the chipset limitation, only MPEG 2 & WMV Offload can support HD format 1920 x 1080p.

*When playing HD DVD and Blu-ray disc the suggested system configuration above: DDR2 800 1GB*2 /Athlon 64 X2 4400+/Graphic shared memory 256MB/Purevideo HD support.

Dual VGA output support: RGB & DVI / RGB & HDMI

* Due to the chipset limitation, simultaneous output for DVI and HDMI is not supported.

Erweiterungsschächte

1 x PCIe x16 (blau)

1 x PCIe x1

2 x PCI

Speichersystem

1 x UltraDMA 133/100

3 x SATA 3 Gb/s ports Support RAID 0,1,5,10,JBOD

1 x External Serial ATA 3.0 Gb/s (SATA On-the-Go)

ATAPI support, AHCI mode

LAN

PHY Gigabit LAN

Audio

VT1708B High Definition Audio 8 -Channel CODEC

Supports Anti Pop Funtion and Vista Basic

Supports S/PDIF out interface, Jack-detect and multi-streaming

USB-Schnittstellen

12 x USB 2.0 Schnittstellen (6 an der Gehäuserückseite, 6 intern)

ASUS Unique Features

ASUS Express Gate:

1. Access the Internet in 5-second* boot time without entering Windows

2. A built-in OS offers instant fun platform for Internet and Instant Messenger!

3. Friendly Picture Manager Interface

* The actual boot time is subject to hardware configurations and product models.

ASUS Quiet Thermal Solution:

- ASUS Q-Fan

ASUS EZ DIY:

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

Other: ASUS MyLogo 2

Overclocking Features

SFS (Stepless Frequency Selection) from 200MHz to 300MHz at 1MHz increment

Adjustable CPU Voltage at 0.05V increment

ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports

1 x PS/2 Keyboard port

1 x Optical S/PDIF Out

1 x HDMI

1 x DVI

1 x D-SUB

1 x External SATA

1 x RJ45 port

6 x USB 2.0/1.1

8-Channel Audio I/O

Internal I/O Connectors

3 x USB 2.0 connector supports additional 6 USB 2.0 ports

1 x Floppy disk drive connector

1 x LPT connector

1 x COM connector

3 x SATA connectors

1 x IDE connector for two devices

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x Front panel audio connector

1 x S/PDIF Out connector

1 x Chassis Intrusion connector

1 x CD audio in connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX +12V Power connector

1 x System Panel connector

BIOS

8 Mb Flash ROM; AMI BIOS; PnP; DMI 2.0; WfM 2.0; SM BIOS 2.4

Manageability

WfM 2.0, DMI 2.0, WOR by Ring, PME Wake Up,WO_USB,WO_KB/MS

Formfaktor

9.6 " x 9.6 " ( 24.4 cm x 24,4 cm )

uATX Formfaktor

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
