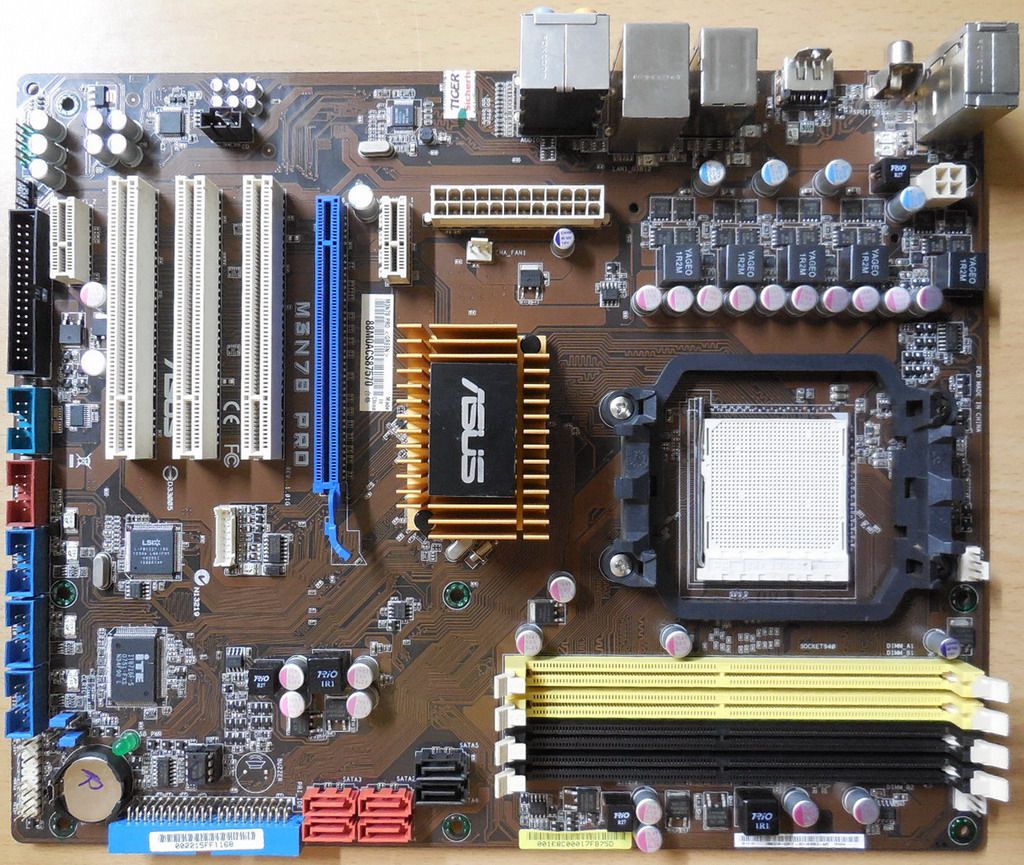

Asus M3N78 PRO Rev 1.01G Mainboard +Blende AMD Sockel AM2+ HDMI VGA DDR2* m992

Asus M3N78 PRO Rev 1.01G Mainboard + Blende AMD Sockel AM2+ HDMI VGA DDR2

Technische Daten

Hersteller       Asus

Model       M3N78 PRO Rev 1.01G

CPU

AMD Socket AM2+ / AM2 Phenom™ FX / Phenom™ / Athlon™ / Sempron™ Processors

AMD Cool 'n' Quiet™ Technology

AMD Live!™ Ready

Support CPU up to 140W

Support 45nm Phenom™ II CPU

Chipsatz

NVIDIA® GeForce™ 8300

FSB

Up to 5200 MT/s HyperTransport™ 3.0 interface for AM2+ CPU

2000/1600 MT/s for AM2 CPU

Memory

4 x DIMM, Max. 8 GB, DDR2 1066/800/667 ECC, Non-ECC, Un-buffered Memory

Dual Channel memory architecture

*Due to AMD CPU limitation, DDR2 1066 is supported by AM2+ CPU for one DIMM per channel only.

**Refer to the Asus Website or the user manual for Memory QVL (Qualify Vendor List)

***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Slots

1 x PCI Express™ x16 slot (Supports PCIe 2.0/1.0 Architecture)

2 x PCI Express™ x1 slot

3 x PCI 2.2 slots

VGA

Integrated NVIDIA GeForce® 8 Series GPU

Hybrid SLI™ Support (supports Windows Vista only)

Supports HDMI™ Technology with max. resolution up to 1920 x 1200

Supports DVI with max. resolution up to 1920 × 1200 @ 60 Hz

Supports D-Sub with max. resolution up to 1920 × 1440 @ 75 Hz

HDMI/DVI/RGB Support

Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0

Supports PCIe 2.0/1.0 Architecture

Maximum shared memory of 512MB

Storage

by NVIDIA® GeForce 8300

1 x UltraDMA 133/100/66/33

6 x SATA 3 Gb/s ports (Use SATA1-4 for IDE mode.)

NVIDIA® MediaShield™ RAID Support RAID 0, 1, 0+1, 5, JBOD

High Definition Audio

Realtek® ALC1200 8-Channel High Definition Audio CODEC

Coaxial S/PDIF out ports at back I/O

Support Jack Detection and Multi-streaming

LAN

NVIDIA Gigabit MAC

Realtek® 8211CL Gigabit PHY featuring AI NET2

IEEE 1394

LSI® FW322 controller supports 2 x 1394a ports

USB

Supports up to 12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features

ASUS Express Gate       Web browser, file downloading and uploading (File downloading and uploading through USB devices only); Further free features upgradable

ASUS Quiet Thermal Solution       ASUS AI Gear 2; ASUS AI Nap; ASUS Q-Fan 2; 4+1 Phases ASUS Power Design

ASUS Crystal Sound       ASUS Noise Filter

ASUS EZ DIY       ASUS Q-Connector; ASUS Q-Shield; ASUS EZ Flash 2

Overclocking Features

Intelligent overclocking tools       AI Overclocking (intelligent CPU frequency tuner); ASUS AI Booster Utility

Precision Tweaker       vDIMM: 8 -step DRAM voltage control; vCore: Adjustable CPU voltage at 0.0125V increment; vChipset 4-step Chipset voltage control

SFS (Stepless Frequency Selection)       FSB tuning from 200MHz to 600MHz at 1MHz increment; Memory tuning from 533MHz up to 1066MHz; PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment

Overclocking Protection       ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS MyLogo2™

Uses 100% All High-quality Conductive Polymer Capacitors!

Interne Steckplätze

1 x AAFP Front Panel Audio connector

1 x CD audio in connector

1 x Chassis intrusion connector

1 x 4-pin CPU fan connector

1 x 3-pin Chassis fan connector

1 x 3-pin Power fan connector

6 x SATA connectors

1 x IDE connector

1 x Floppy disk drive connector

3 x USB2.0 connectors for 6 additional USB2.0 ports

1 x IEEE1394a connector

1 x Serial port (COM1) connector

1 x S/PDIF Out connector

1 x 10-pin VGA connector for D-Sub module

1 x Clear CMOS Jumper

1 x System panel connector

1 x 24-pin ATX power connector

1 x 4-pin ATX 12V power connector

Externe Anschlüsse

1 x PS/2 keyboard port

1 x Coaxial S/PDIF Out port

1 x HDMI port

1 x LAN (RJ-45) port

1 x IEEE1394a port

6 x USB 2.0 ports

8-channel Audio I/O

BIOS

8 Mb Flash ROM; DMI 2.0; PnP; WfM 2.0; SM BIOS 2.5; Award BIOS; ACPI 2.0; ASUS EZ Flash 2

Formfaktor

ATX Form Factor; 12 inch x 9.6 inch (ca. 30.5cm x 24.4cm)

Lieferumfang

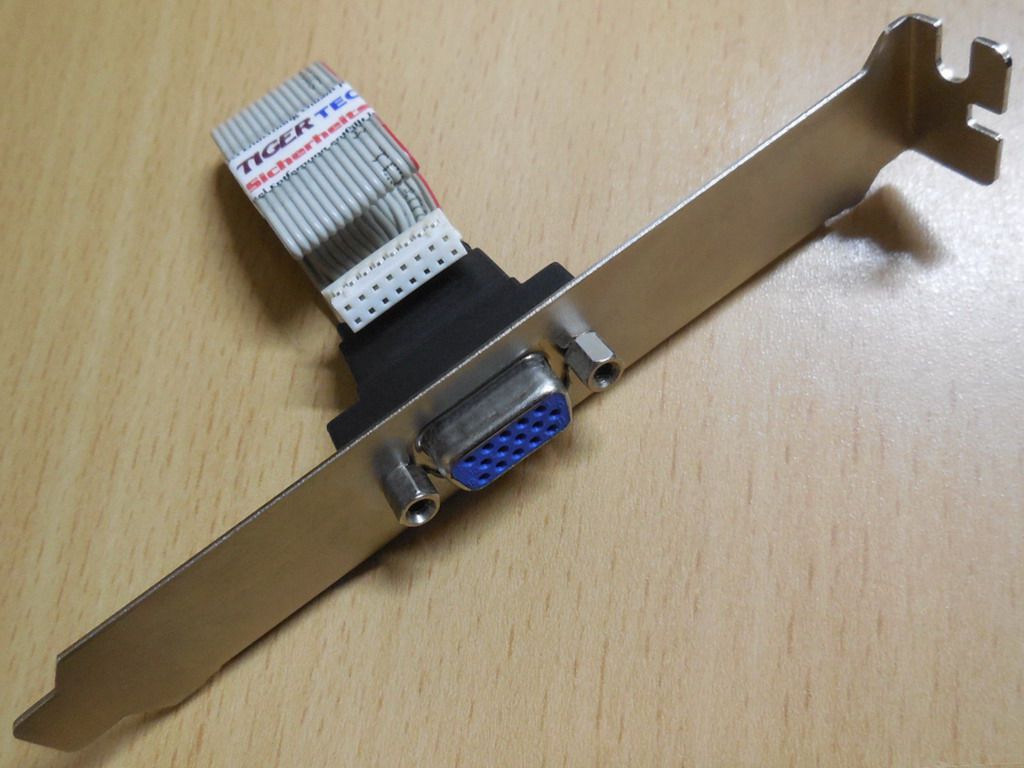

Das Mainboard, ATX-Blende und VGA Slotblende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
