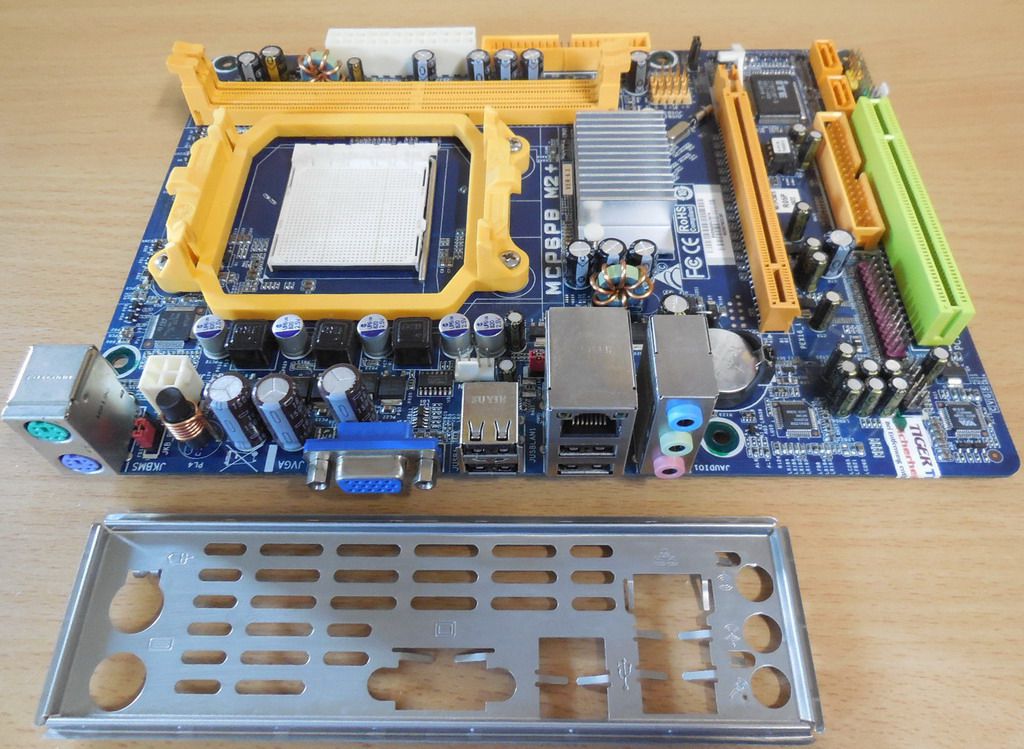

Biostar MCP6PB M2+ Ver 6.3 Mainboard +Blende Sockel AM2+ AM2 VGA DDR2 LAN* m931

Biostar MCP6PB M2+ Ver 6.3 Mainboard + Blende Sockel AM2+ AM2 VGA DDR2 LAN

Technische Daten

CPU SUPPORT

AMD Phenom™ II X4 Processor, AMD Phenom™ II X3 Processor, AMD Phenom™ II X2 Processor

AMD Phenom™ X4 Processor, AMD Phenom™ X3 Processor

AMD Athlon™ II X4 Processor, AMD Athlon™ II X3 Processor, AMD Athlon™ II X2 Processor

AMD Athlon™ X2 Dual-Core Processor

AMD Athlon™ 64 X2 Dual-Core Processor, AMD Athlon™ 64 FX Processor, AMD Athlon™ 64 Processor

AMD Sempron™ Processor

HT

Support HT 2G

Chipset

NVIDIA GeForce 6150 / nforce430a

MEMORY

Support Dual Channel DDR2 533/667/800 MHz

2 x DDR2 DIMM Memory Slot

Max. Supports up to 4GB Memory

INTEGRATED VIDEO

NVIDIA GeForce 6150 GPU, On Board Graphic Max. Memory Share Up to 512MB (Under OS By Turbo Cache)

EXPANSION SLOT

1 x PCI-E x16 Slot

1 x PCI Slot

STORAGE

2 x SATA II Connector

1 x IDE Connector

Support SATA RAID: 0,1

LAN

Realtek RTL8201CL - 10/100 PHY

AUDIO CODEC

VIA VT1708B 6-Channel HD Audio

USB

4 x USB 2.0 Port

2 x USB 2.0 Header

REAR I/O

1 x PS/2 Mouse

1 x PS/2 Keyboard

4 x USB 2.0 Port

1 x VGA Port

1 x LAN Port

3 x Audio Jacks

INTERNAL I/O

2 x USB 2.0 Header

2 x SATA II Connector (3Gb/s )

1 x IDE Connector

1 x Floppy Connector

1 x Front Audio Header

1 x Front Panel Header

1 x CPU Fan Connector (4-pin)

1 x System Fan Connector (3-pin)

1 x Printer Port Header

1 x 24-pin ATX Power Connector

1 x 4-pin CPU Power Connector

1 x CMOS Jumper

1 x JKB Power Jumper

1 x JUSB Power Jumper

DIMENSION

Micro ATX Form Factor Dimension: 23.5cm X 17cm ( W x L )

OS SUPPORT

Support Windows XP / Vista / 7

FEATURES

Windows 7 Compatible

Supports AM3/AM2+

Supports Solid capacitor

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
