ECS MCP61SM-AM Rev1.0 Mainboard +Blende Sockel AM2 PCIe VGA LAN Audio SATA* m706

ECS Elitegroup MCP61SM-AM Rev 1.0 Mainboard + Blende Sockel AM2 PCIe VGA LAN Audio SATA

Technische Daten

ausgebaut aus einem Acer PC. Bei entsprechenden Vorraussetzungen auch für andere PC´s geeignet.

CPU

AMD Athlon™ 64 AM2 Sockel

AMD Athlon™ 64 X2, Athlon™ 64 oder Sempron Prozessor mit 512KB oder mehr L2 Cache (unterstützt Cool & Quiet Technologie)

Chipset

NVIDIA MCP61S Chipsatz mit 1000MHz FSB

Memory

Dual-channel memory architecture

4 x 240-pin DIMM sockets support DDR2 800/667/533 MHz memory modules

Supports up to 4 GB system memory

VGA

Integrated MCP61S graphics

Expansion slots

1 x PCI Express™ x16 slot

1 x PCI Express™ x1 slot

2 x PCI 2.3 slots

Storage

1 x IDE Ultra DMA 100/66/33

2 x Serial ATA

LAN

NVIDIA nForce® 405 MCP mit Hardware Firewall, 10/100/1000 M/bit Fast Ethernet, Marvell G/bit LAN Chip

High Definition Audio

Realtek® ALC888 8-channel CODEC, 7.1 Audio Unterstützung, 1x SPDIF Out, AC`97

USB

support 8 USB ports

Rear panel

1 x PS/2 keyboard port (purple)

1 x PS/2 mouse port (green)

1 x VGA port

1 x LAN (RJ-45) port

4 x USB 2.0/1.1 ports

1 x COM port (Seriell 16550 FIFO)

1 x Parallel ECP/EPP port

8-channel audio ports

Internal connectors

2 x USB 2.0 connectors support additional USB 2.0 ports

1 x Primary IDE connector

2 x Serial ATA connectors

1 x Floppy port connector

1 x 3-pin CPU fan connector

1 x IRDA connector

1 x 3-pin Power fan connector

1 x 3-pin System fan connector

1 x S/PDIF Out connector

1 x Front Panel connector

1 x Speaker connector

1 x Front panel audio connector

1 x AUX-In connector

1 x COM2 connector

1 x IEEE1394 Firewire connector

1 x 24-pin ATX power connector

1 x 4-pin ATX12V power connector

BIOS features

4MB Flash BIOS

Award PnP BIOS compatible with SM BIOS 2.3

ACPI, SMBIOS 2.3, Green and Boot Block

Provides DMI 2.0, WFM 2.0, WOL, and SM Bus for system management

Form factor

uATX form factor; 9.6 in x 9.6 in (24.5 cm x 24.5 cm)

Lieferumfang

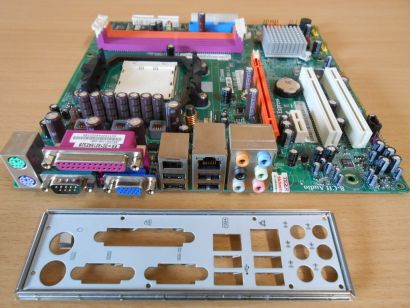

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
