Gigabyte GA-MA770-UD3 AMD AM2+ AM3-PhenomII X6 ATX

Produktbeschreibung

Gigabyte GA-MA770-UD3 AMD AM2+ AM3

AMD Phenom™ II X6 ATX 4x DDR2 Speicher

Mainboard + Blende

Supports new generation of AMD Phenom™ II X6 processors

Ultra Durable 3 Classic Technology with copper cooled quality for lower working temperature
Revolution energy saving design with Easy Energy Saver technology
Supports AMD Phenom™ II/ Phenom™/ Athlon™ series processors
Dual Channel DDR2 1333+ for remarkable system performance
Ultimate graphics performance with PCI-E 2.0 x16 interface
Integrated SATA 3Gb/s with RAID function
Features high speed Gigabit Ethernet and IEEE1394
Home theater quality 8-channel High Definition Audio
Patented DualBIOS with dual hardware BIOS protection
100% 50,000 hours lifespan of Japanese solid capacitors design
Meet European Union ErP(Energy-related Products) requirement

* DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.

Spezifikation

Prozessor

Support for AM3 / AM2+ / AM2 processors (Note1): AMD Phenom™ II X4 processor/ AMD Phenom™ II X3 processor/ AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™processor

Hyper Transport Bus 5200/2000 MT/s

Chipsatz

North Bridge: AMD 770

South Bridge: AMD SB710

Arbeitsspeicher

4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note2)

Dual channel memory architecture

Support for DDR2 1333(OC)/1066(Note 3)/800/667 MHz memory modules

Support ECC memory (Note 4)

Audio

Realtek ALC888 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In/Out

Support for CD In

LAN

Realtek 8111C/D(L) chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (PCIE_16)

(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)

4 x PCI Express x1 slots

2 x PCI slots

Storage Interface South Bridge:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices

Support for SATA RAID 0, RAID 1 and RAID 0+1

iTE IT8720 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394 T.I. TSB43AB23 chip

Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a headers)

USB Integrated in the South Bridge

Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

6 x SATA 3Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In header

1 x S/PDIF Out header

2 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x parallel port header

1 x serial port header

1 x power LED header

1 x chassis intrusion header

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x coaxial S/PDIF Out connector

1 x optical S/PDIF Out connector

8 x USB 2.0/1.1 ports

2 x IEEE 1394a ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O iTE IT8720 chip

H/W Überwachung System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU fan speed control (Note 4)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Betriebssystem Support for Microsoft® Windows Vista/XP

Form Factor ATX Form Factor; 30.5cm x 21.0cm

Get Ready to Unleash the Power of AMD 6-Core CPU

GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

On/Off Charge Technology

GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.

Introduction

the ga-ma770-ud3 introduces revolutionary gigabyte ultra durable 3 classic technology on amd platform with featuring 2 oz copper pcb and further helps to reduce the system temperature and dramatically enhance the performance. based on amd 770 chipset, the ga-ma770-ud3 supports amd the latest 45nm am3 phenom ii, am2+ phenom, and so on multi-core processors, integrated ddr2 memory controller, hypertransport™ 3.0 technology links and pci express 2.0 graphics interface. with the innovative gigabyte easy energy saver technology, the ma770-ud3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.

Supports next generation of 45nm AMD AM3 CPU

This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.

EC AOD-ACC Support

EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive™ utility further than it was previously possible.
* Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
* Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.

AMD OverDrive Support

The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
** The support condition of this utility may vary by models(chipsets).

Ultra Durable 3 – Classic

GIGABYTE Ultra Durable 3 Classic motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable 3 Classic motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, and GIGABYTE patented DualBIOS™ technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.

Dual Channel DDR2 1333+ MHz

<img src='/FileUpload/Features/2/Overview/625.jpg' _fcksavedurl='/FileUpload/Features/2/Overview/625.jpg' _fcksavedurl='/FileUpload/Features/2/Overview/625.jpg'><br><br>Dual Channel DDR2 1333+ MHz

Delivering native support for DDR2 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
* DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.

50,000 Hours Japanese Solid Capacitors

GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.

* 50000 hours of work time is calculated at 85℃ ambient temperature.

EasyTune6

GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.

DualBIOS™ - Patented Dual Hardware BIOS Protection

DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.

Qualified for Windows^® 7

The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft^®, setting the standard for future Windows 7 certified motherboards...more

ErP Lot 6 support

The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.

GIGABYTE innovative technology- Easy Energy Saver

GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.

Lieferumfang

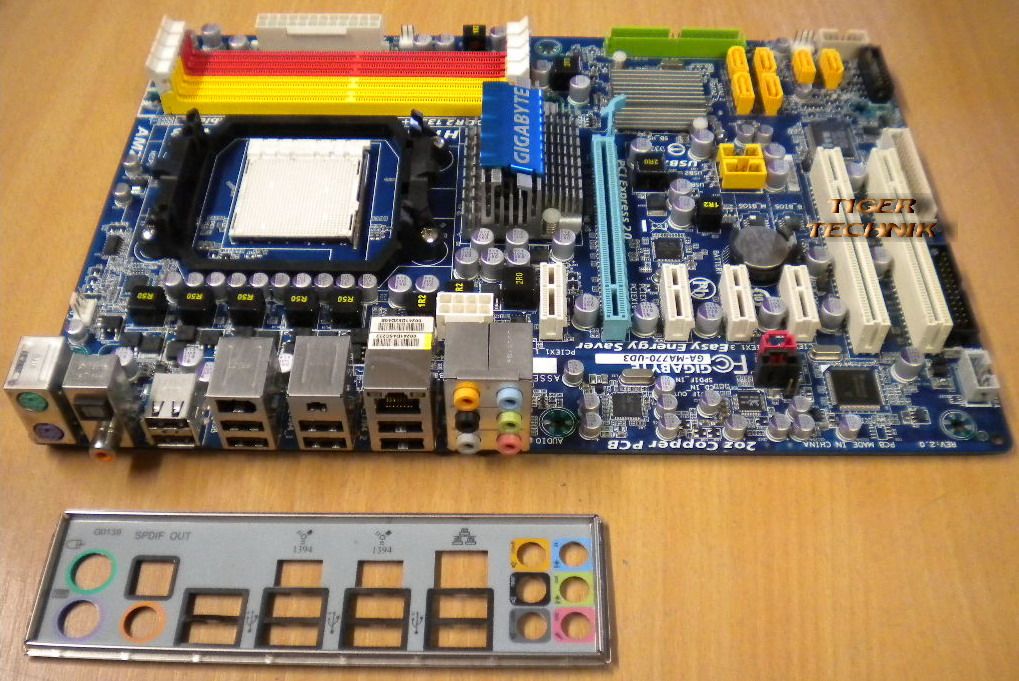

Gigabyte GA-MA770-UD3 Mainboard + Blende - ohne weiteres Zubehör * gebraucht *

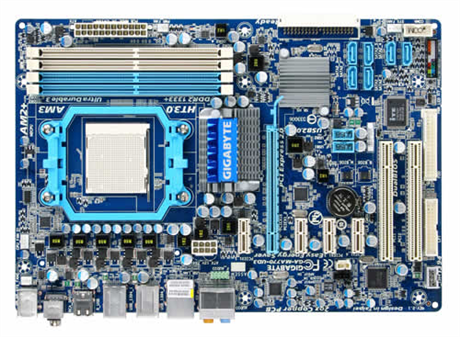

Abbildung ähnlich
