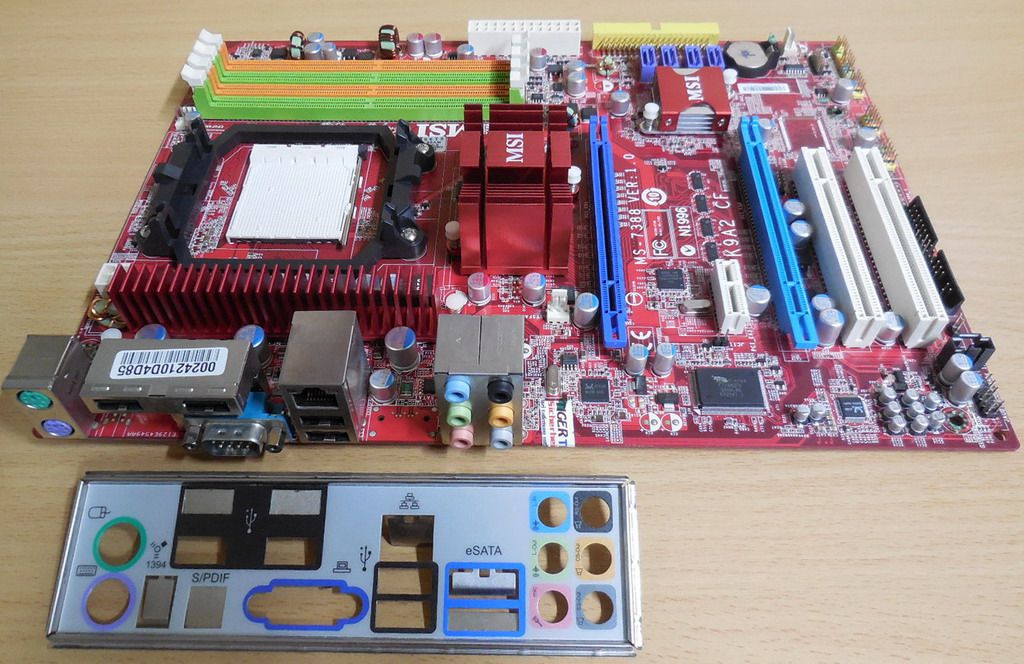

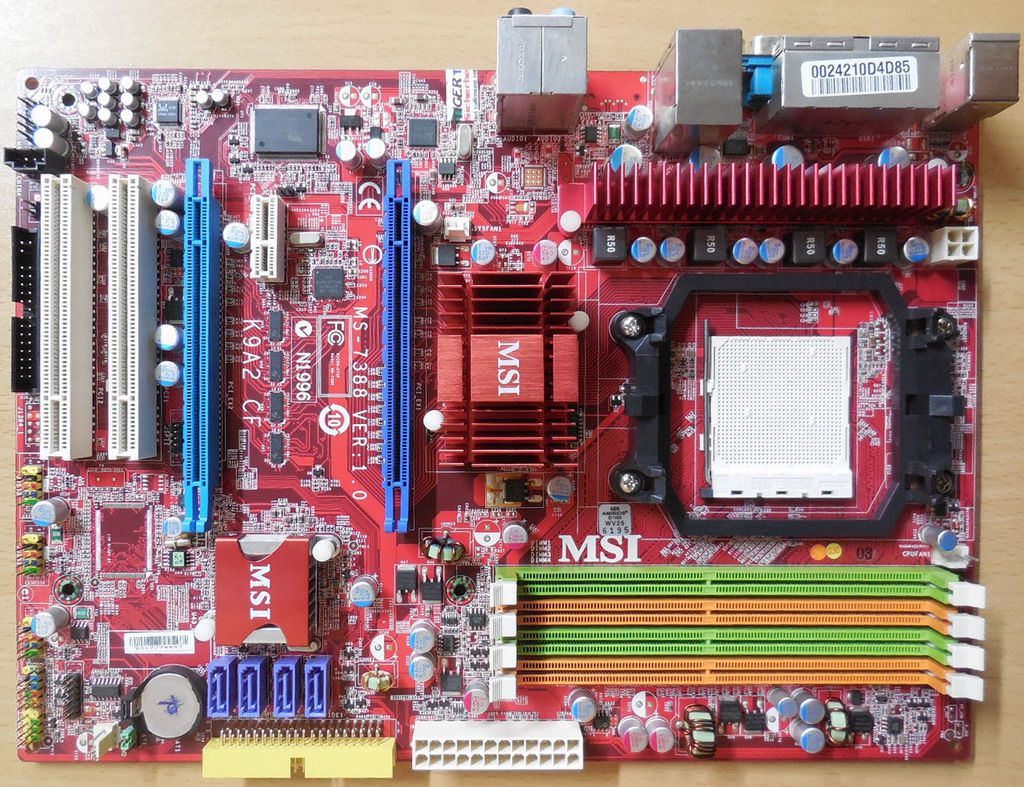

MSI K9A2 CF MS-7388 Ver 1.0 Mainboard +Blende AMD Sockel AM2+ DDR2 PCIe* m180

MSI K9A2 CF MS-7388 Ver 1.0 Mainboard + Blende AMD Sockel AM2+ DDR2 PCIe

Technische Daten

CPU

Sockel AM2 / AM2+

AMD® Phenom / Athlon / Sempron CPU

*Please refer to CPU Support for compatible CPU; the above description is for reference only.

FSB

HyperTransport 3.0 supporting speed up to 2600MHz

- AM2 CPU supports HyperTransport 1.0

- AM2+ CPU supports HyperTransport 3.0

Chipset

AMD® 790X and SB600 Chipset

Main Memory

Supports Dual DDR II 533/667/800

- 4 DDRII DIMMs (240pin / 1.8V)

- Supports a maximum memory size up to 8GB.

Slots

1 x PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V1.0a compliant)

1 x PCI Express x16 slot with x8 operation (PCI Express Bus SPEC V2.0 compliant)

*When 2 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0  to x8/ x8. Do not use the light-blue slot when only one PCI Express x16 card is installed.

1 x PCI Express x1 slot

2 x PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

One IDE port by AMD® SB600

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

- Can connect up to two IDE devices

On-Board SATA

4 SATA II (1~4) ports by AMD® SB600; Supports storage and data transfers at up to 300 MB/s

RAID Function

SATA II 1~4 support RAID 0, 1 and 0+1 mode by AMD® SB600

Audio

Chipset integrated by Realtek® ALC888

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

LAN

Realtek PCI-E GbLAN controller 8111B

- Integrated Fast Ethernet MAC and PHY in single chip

- Supports 10Mb/s, 100Mb/s and 1000Mb/s

- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

ATX 24-pin power connector

ATX 4-pin 12V CPU power connector

CPU (4pin) / 2 x System FAN (3pin) connectors

CD-in connector

Front panel audio connector

Front panel connector

Chassis intrusion switch connector

3 x USB 2.0 connector support additional 6 ports

1 x Floppy disk drive connector

4 x Serial ATA II connectors

1 x ATA133 IDE connector

Clear CMOS jumper

1 x SPDIF-out header

1 x TPM module header

1 x JSPI1 header

Back Panel I/O Ports

1 x PS/2 keyboard

1 x PS/2 mouse

1 x Serial port

4 x USB 2.0 ports

1 x RJ45 LAN jack

6 in 1 audio jack

Dimension

30.5cm(L) x 22.0cm(W) ATX Form Factor

Mounting

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
