Produktbeschreibung

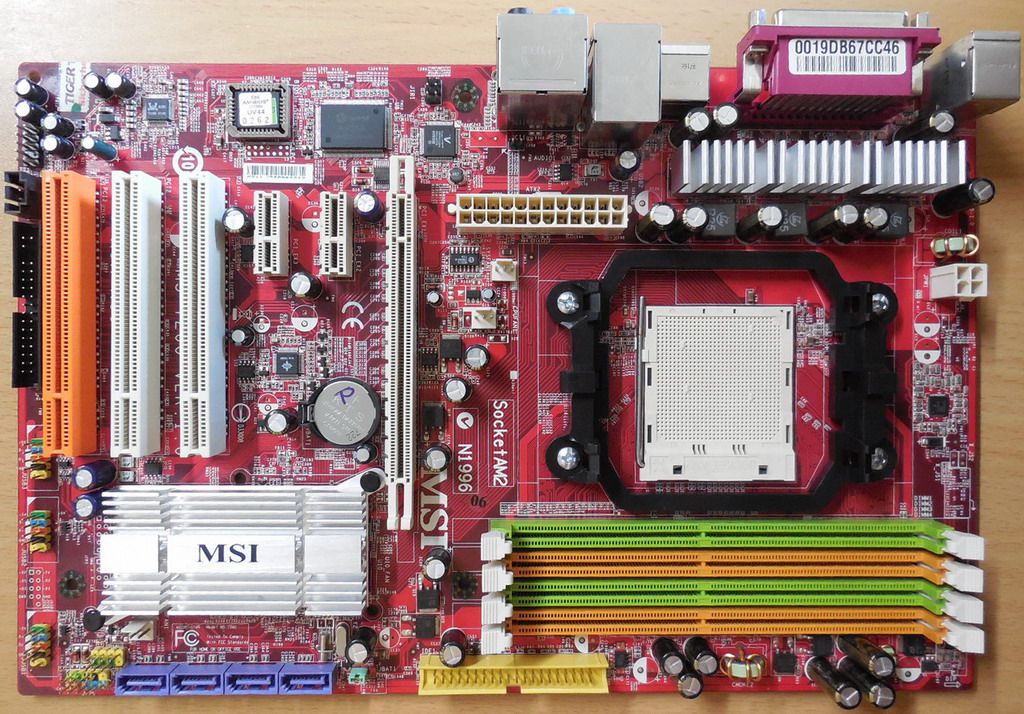

MSI K9N Neo MS-7260 Ver 1.0 Mainboard + Blende AMD Sockel AM2 nForce 550 DDR2
Technische Daten
Processor Support
AMD® Athlon 64 / Athlon 64 X2 & Sempron in the socket AM2 package
(For the latest information about CPU, please visit the MSI Website)
Supported FSB
HyperTransport supporting speed up to 1GHz (2000MT/s)
Chipset
nVIDIA® nForce 550 chipset
Memory Support
DDRII 667/800 SDRAM (4GB Max)
4 DDRII DIMMs (240-pin)
(For the latest information about Memory Support, please visit the MSI Website)
LAN
Supports 10/100/1000 Fast Ethernet LAN by Vitesse VSC8601
Audio
Chip integrated by Realtek® ALC883
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
IDE
1 x IDE port by nForce 550
Supports Ultra DMA 66/100/133 mode
Supports PIO, Bus Master operation mode
SATA
4 x SATA II ports by nForce 550 (Supports storage and data transfers at up to 300 MB/s)
RAID
SATA1~4 supports RAID 0/ 1 or 0+1 mode by nForce 550
Floppy
1 x floppy port (Supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes)
Back panel
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x Serial port
1 x Parallel port supporting SPP/EPP/ECP mode
4 x USB 2.0 Ports
1 x LAN jack (10/100/1000) by Vitesse VSC8601
8-channel audio with 6 flexible audio jacks
On-Board Pinheaders & Connectors
1 x 24-pin ATX connector
1 x 4-pin P4 12V connector
1 x 3-pin CPU FAN connector
1 x 3-pin System FAN connector
1 x 3-pin CPU FAN connector
1 x 3-pin NB FAN connector
1 x IDE connector
4 x SATAII connectors
1 x Floppy FDD connector
1 x IrDA pinheader
3 x USB 2.0 pinheaders
1 x Chassis Intrusion connector
1 x JIR1 IR connector
1 x CD_In connector
1 x JFP1 Front Panel connector
1 x JFP2 Front Panel connector
1 x JFP2 Front Audio Panel connector
1 x CMOS Jumper
Slots
1 x PCI Express x 16 slot
2 x PCI Express x 1 slots
3 x PCI slots, support 3.3V/ 5V PCI bus Interface, includes one orange slot which supports 2 master for MSI special PCI function card (ex. wireless LAN and bluetooth combo card.)
Form Factor
ATX; ca. 20.0 cm X 30.5 cm
Mounting
6 mounting holes
Lieferumfang

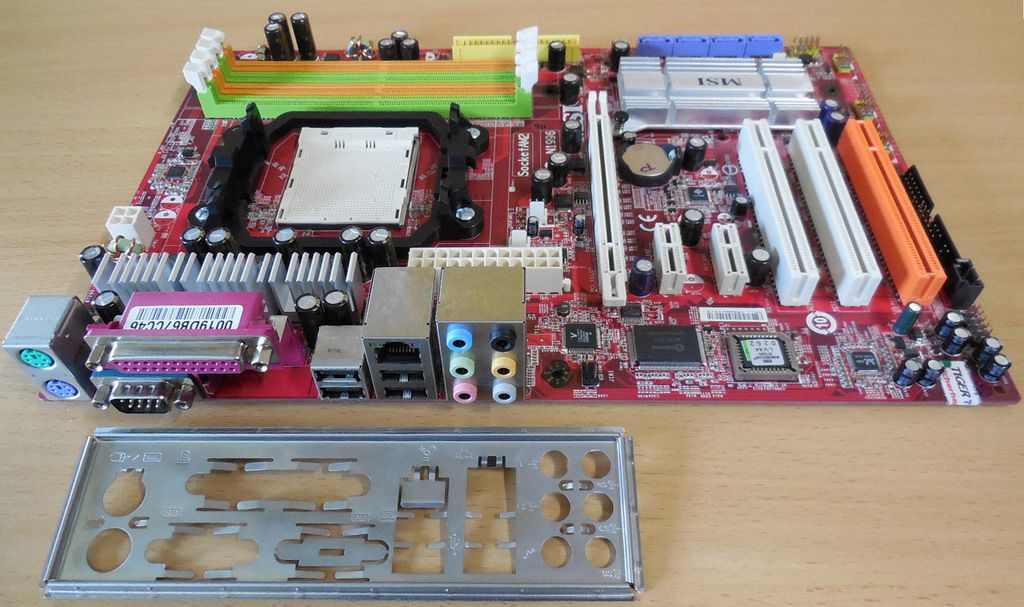

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
