MSI K9N Platinum MS-7250 Ver1.0 Mainboard +Blende Sockel AM2 PCIe Dual LAN* m658

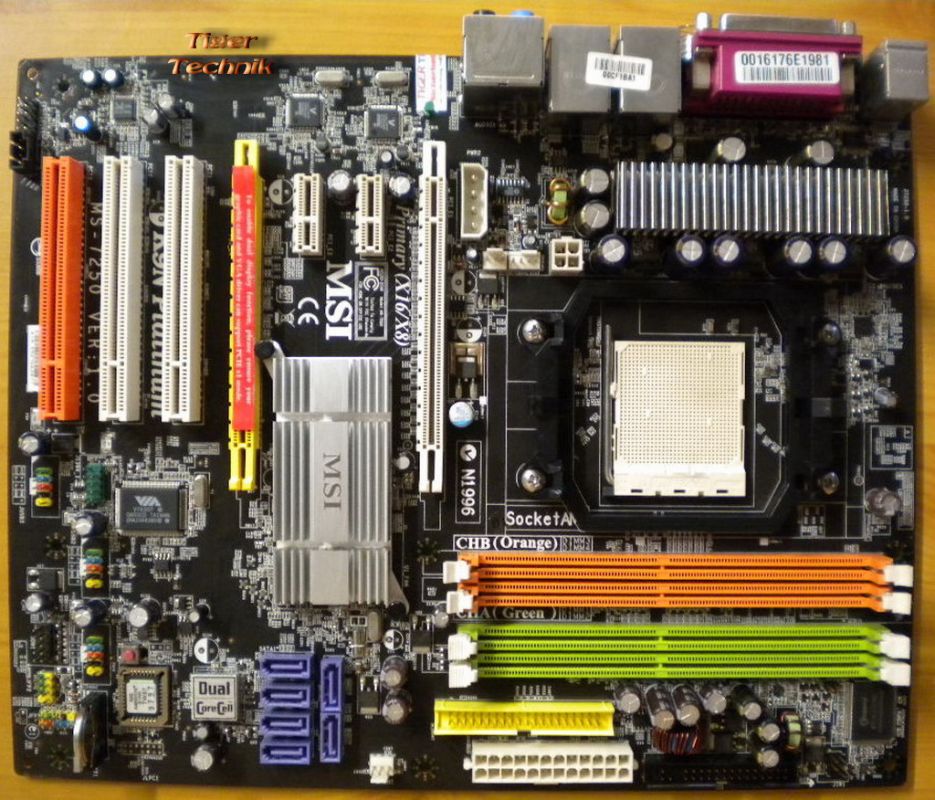

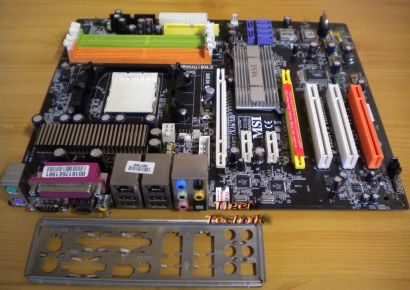

MSI K9N Platinum MS-7250 Ver1.0 Mainboard + Blende

Sockel AM2 DDR2 PCIe Dual LAN

Technische Daten

CPU

- AMD® Athlon 64 X2, Athlon 64, Athlon FX and Sempron in the socket AM2 package.

(For the latest information about CPU, please visit the MSI Website)

FSB

HyperTransport supporting speed up to 1GHz (2000MT/s)

Chipset

nVIDIA® nForce 570 chipset (MCP55Ultra)

RAM

DDRII 533/667/800 SDRAM (8GB Max)

4 DDRII DIMMs (240pin / 1.8V)

LAN

Supports Dual LAN 10/100/1000 Fast Ethernet by Vitesse VSC8601

IEEE1394

- Chip integrated by VIA VT 6307

- Transfer rate is up to 400Mbps

Audio

Chip integrated by Realtek® ALC883

Flexible 8-channel audio with jack sensing

Compliant with Azalia 1.0 Spec

IDE

1 x IDE port by nForce 570

Supports Ultra DMA 66/100/133 mode

Supports PIO, Bus Master operation mode

SATA

6 x SATA II ports by nForce 570

Supports storage and data transfers at up to 300 MB/s

RAID

SATA1~6 supports RAID 0/ 1/ 0+1 or RAID 5 mode by nForce 570

Floppy

1x Floppy port

Supports 1 FDD with 360K,  720K, 1.2M, 1.44M and 2.88Mbytes

Back panel

- 1 x PS/2 mouse port

- 1 x PS/2 keyboard port .

- 1 x Serial port

- 1 x Parallel port supporting SPP/EPP/ECP mode

- 1 x Coaxial SPDIF-out port

- 4 x USB 2.0 Ports

- 2 x LAN jacks (10/100/1000) by Vitesse VSC8601

- 5 x flexible audio jacks.

- 1 x Optical SPDIF-out jack.

- 1 x IEEE1394 Firewire port

On-Board Pinheaders:

- 1 x D-Bracket 2 pinheader

- 1 x IrDA pinheader

- 3 x USB 2.0 pinheaders

- 1 x IEEE1394 Firewire pinheader

Slots:

- 1 x PCI-Express x16 slot (PCI_E1)

- 1 x PCI-Express Lite slot (PCI_E4), compatible with PCI Express x1

- 2 x PCI Express x1 slots

- 3 x PCI slots, support 3.3V/ 5V PCI bus Interface, includes one orange slot which supports 2 master for MSI special PCI function card (ex. wireless LAN and bluetooth combo card.).

Form Factor:

- ATX (24.5 cm X 30.5 cm)

Mounting:

- 9 mounting holes

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
