MSI MS-7283 Ver1.0 Lenovo L-NC51M Mainboard +Blende FRU 41X1344 Sockel AM2* m618

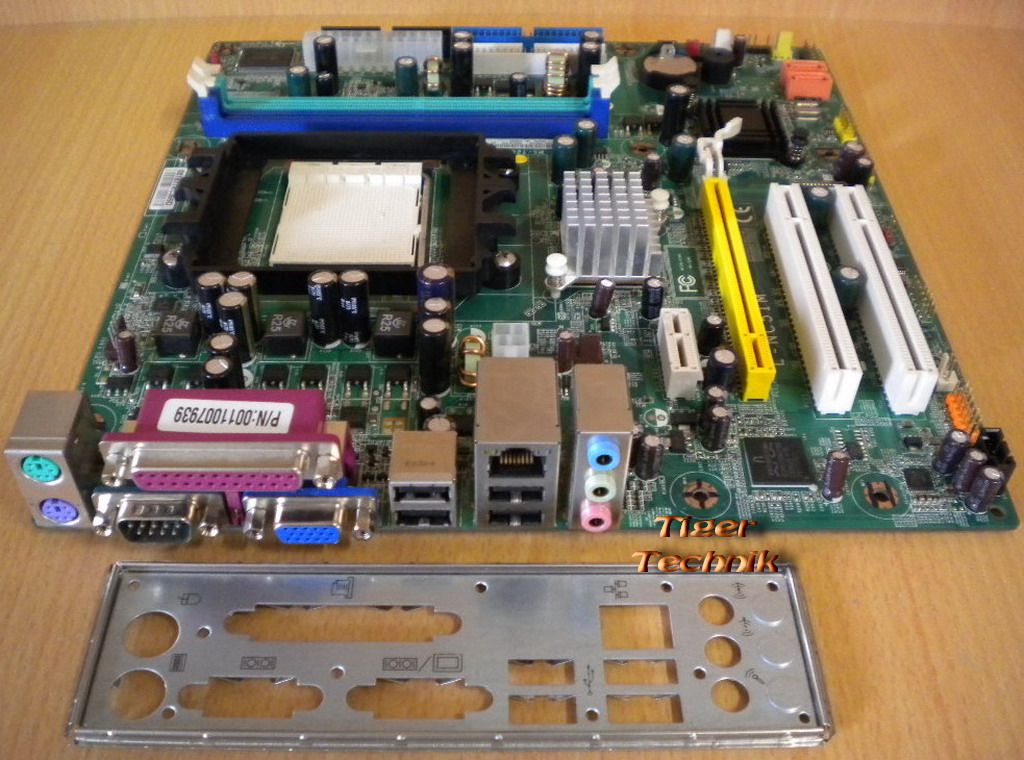

MSI MS-7283 Ver 1.0 Mainboard + Blende

Lenovo Modell L-NC51M / Part No. FRU 41X1344

z.B. für ThinkCentre A60 oder baugleich geeignet

Technische Daten

Lenovo L-NC51M Mainboard, Part No.: FRU 41X1344

CPU/Processor

Socket: AM2

Supports AMD Sempron processor with 128KB or 256KB L2 cache

Supports AMD Athlon 64 processors with 512KB or 1MB L2 cache

Supports AMD Athlon 64 X2 processors with 2x 512KB or 2x 1MB L2 dual core cache

AMD Sempron 3000+ / 3200+ / 3400+ / 3600+

AMD Athlon 64 3000+ / 3200+ / 3500+ / 3800+

AMD Athlon 64 X2 4200+ / X2 4600+ / X2 4800+ / X2 5000+

Front-side bus (FSB)

Supports I/O bus speeds of 1000MHz

Chipset

NVIDIA G51G

AC '97 2.3 Digital controller

Form factor

Micro ATX size

Memory

533MHz (PC2-4200) / 667MHz (PC2-5300) DDR2 (Double Data Rate) dual channel memory support

Two 240 pin DDR2 SDRAM UDIMM sockets - ECC or parity memory is not supported

Support for up to 4 GB of DDR2 SDRAM

Steckplätze

1x PCI Express® X16 Slot, 1x PCI Express® X1 Slot, 2x PCI Slot (32-bit PCI 2.3)

Video graphics

NVIDIA GeForce 6100

Onboard audio

AD1986A CODEC

Front - Microphone-in, line-out

Rear - Line-in, line-out, Microphone-in

Onboard LAN

Integrated Broadcom Gigabit Ethernet

Floppy Disk Drive

One slot, 1.44MB/3 mode 3.5" devices support

SATA Interface + IDE

2 x SATAII ports for 2 SATA Devices

3.0 Gb/s per direction per channel

2 x IDE Port for 4 IDE devices

USB

8 x USB2.0/1.1(Rear 4 ports, Front 4ports)

Buzzer

•One onboard buzzer

Back panel I/O

PS/2 keyboard (purple)

PS/2 mouse (green)

One LPT port

One COM port

One VGA out port

Four USB (2.0)

One RJ-45 networking port (LAN)

Audio ports:

line in (light blue) - line out (lime) - microphone (pink)

Internal connectors

Two IDE connector

One floppy drive connector

One ATX 24-pin power connector

One ATX 4-pin +12v power connector

Two Serial ATA connectors

One CPU fan connector - One PC fan connector - One Sys fan connector

One COM2 connector

One front panel audio connector

One PC panel connector

One CD-In connector

Two USB connectors supporting USB2.0 ports

Power management

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

 Abbildung ähnlich
