MSI MS-7327 Ver 1.1 K9AGM2 Mainboard +Blende Sockel AM2 PCIe DDR2 GbLAN VGA*m874

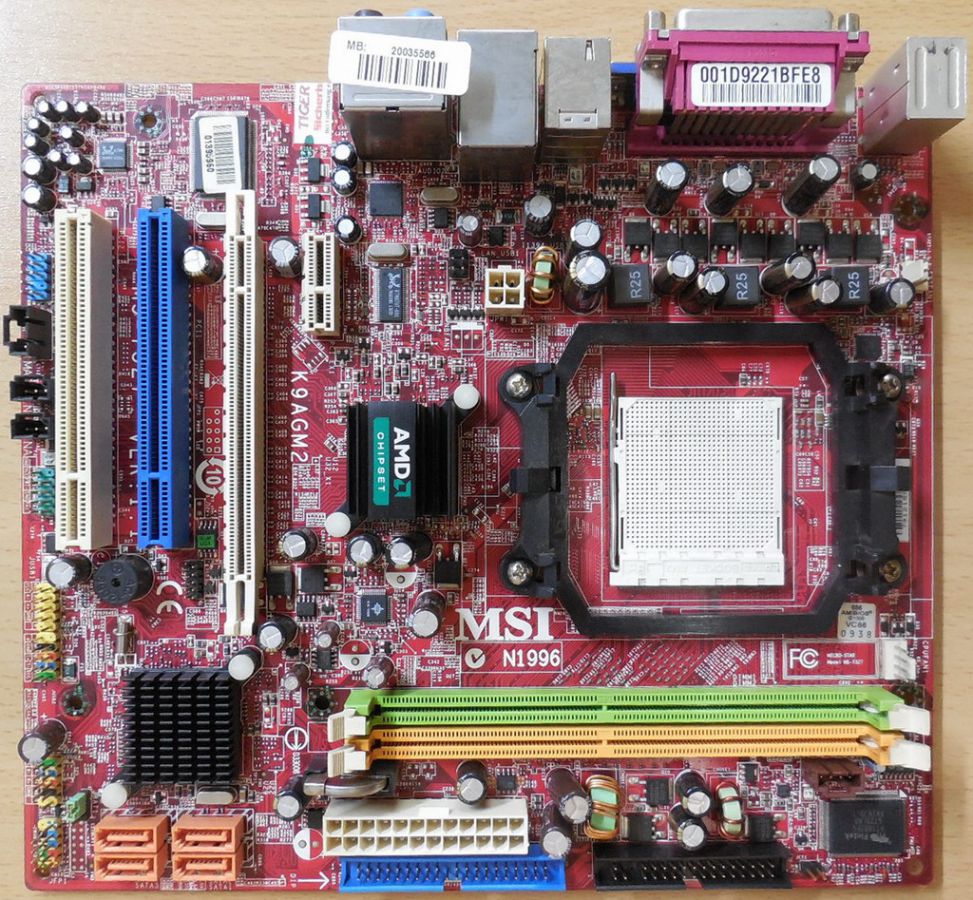

MSI MS-7327 Ver 1.1 K9AGM2 Mainboard + Blende Sockel AM2 PCIe DDR2 GbLAN VGA

Technische Daten

CPU

AMD® Athlon 64 X2, Athlon 64, Athlon FX and Sempron in the Socket AM2 package

Supports 4 pin CPU Fan Pin-Header with Fan Speed Control

Supports up to 5000+ and higher CPU

Please refer to CPU Support for compatible CPU; the above description is for reference only

FSB

HyperTransport supporting speed up to 1GHz (2000MT/s)

Chipset

AMD® 690G and SB600 Chipset

Main Memory

Supports Dual DDR2 400/533/667/800; max. memory size up to 4GB; 2 x DDR2 DIMMs(240pin / 1.8V)

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots (Support 3.3V/ 5V PCI bus Interface)

On-Board IDE

One IDE port by AMD® SB600. Can connect up to two IDE devices

Supports Ultra DMA 66/100/133 mode; Supports PIO, Bus Master operation mode

On-Board SATA

4 x SATA II ports by AMD® SB600; Supports storage and data transfers at up to 300 MB/s

SATA II 1~4 supports RAID 0, 1 and 0+1 mode by AMD® SB600

Audio

Chipset integrated by Realtek® ALC888: Flexible 8-channel audio with jack sensing; Compliant with Azalia 1.0 Spec

Gigabit LAN

Supports 10/100/1000 Fast Ethernet by Realtek 8111B

IEEE1394

Chipset integrated by VIA® VT6308: Transfer rate is up to 400Mbps

Internal I/O Connectors

1 x ATX 24-pin power connector

1 x ATX 4-pin 12V CPU power connector

1 x 4-pin CPU FAN connector

1 x System FAN connector

1 x Chassis intrusion switch connector

1 x Front panel audio connector

1 x Front panel connector

1 x Clear CMOS jumper

1 x CD-in connector

1 x SPDIF out connector

1 x SPDIF in connector

1 x TV-out connector

1 x JVFD1 connector

1 x JSPI1 connector

1 x IEEE1394 connector support additional 1 port

3 x USB 2.0 connector support additional 6 ports

1 x Floppy disk drive connector (360K, 720K, 1.2M, 1.44M and 2.88Mbytes)

4 x Serial ATA II connectors

1 x ATA133 connector

Back Panel I/O Ports

1 x Parallel port

1 x PS/2 keyboard

1 x PS/2 mouse

1 x IEEE1394 Port

6 in 1 audio jack

4 x USB 2.0 ports

1 x RJ45 LAN jack

1 x Sub-D VGA port

Dimension

24.4cm(L) x 21.5cm(W);  Micro-ATX Form Factor

Mounting

6 mounting holes

Lieferumfang

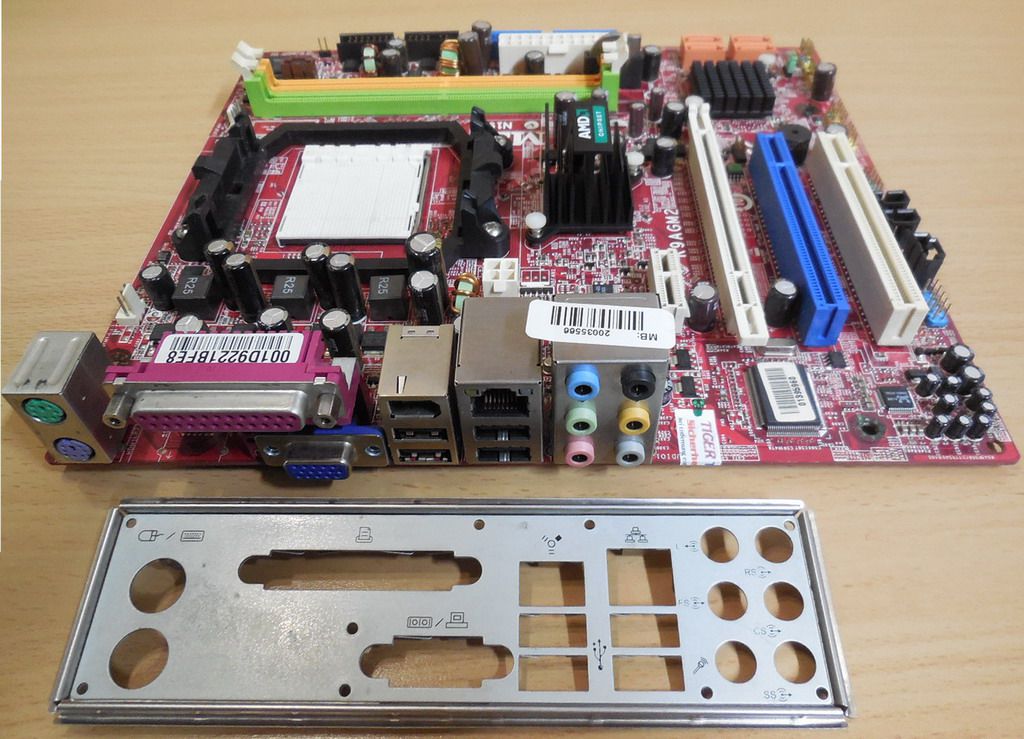

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
