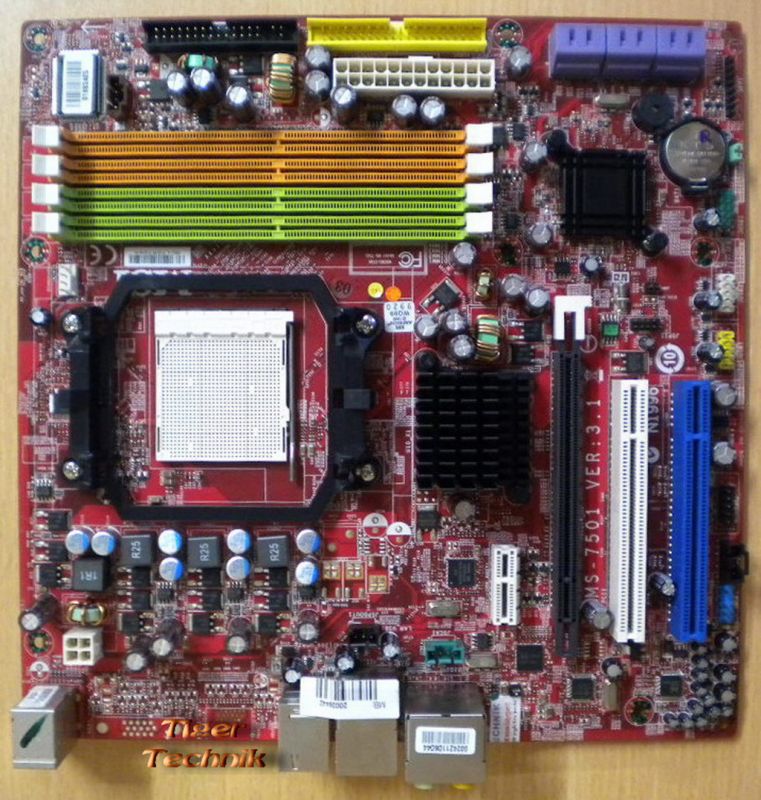

MSI MS-7501 Ver 3.1 Mainboard +Blende Sockel AM2 AM2+ PCIe 16x LAN 7.1 Aud* m560

MSI MS-7501 Ver 3.1 Mainboard + Blende Sockel AM2 AM2+ PCIe 16x LAN 7.1 Audio

Technische Daten

CPU

AMD® Phenom/Athlon/Sempron CPU.

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

HyperTransport supporting speed up to 2.6GHz

- AM2 CPU supports HyperTransport 1.0/2.0

- AM2+ CPU supports HyperTransport 3.0

Chipset

AMD® 780G/780V and SB700 Chipset

Main Memory

Supports Dual DDR2 533/667/800/1066

- 4 DDR2 DIMMs (240pin / 1.8V)

- Supports a maximum memory size up to 8GB.

Slots

1 PCI Express x16 slot

1 PCI Express x1 slot

2 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

One IDE port by AMD® SB700

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

- Can connect up to two IDE devices

On-Board SATA

6 SATA II (1~4) ports by AMD® SB700

- Supports storage and data transfers at up to 3Gb/s

Floppy

- 1 floppy port

- Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Audio

Chipset integrated by Realtek® ALC888

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

LAN

Realtek PCI-E GbLAN controller 8111C

- Integrated Fast Ethernet MAC and PHY in single chip

- Supports 10Mb/s, 100Mb/s and 1000Mb/s

- Compliance with PCI-Express Bus specification v1.0a

IEEE 1394

- Chip integrated by JMicron 381

- Transfer rate is up to 400Mb/s

Internal I/O Connectors

- ATX 24-pin power connector

- ATX 4-pin 12V CPU power connector

- CPU / System x 1 FAN connectors

- CD-in connector

- Front panel audio connector

- Front panel connector

- 3 x USB 2.0 connector support additional 6 ports

- 1 x Floppy disk drive connector

- 6 x Serial ATA II connectors

- 1 x ATA133 IDE connector

- Clear CMOS jumper

- 1 x SPDIF-out header

- 1 x TPM module header (optional)

Back Panel I/O Ports

- 1 x PS/2 keyboard

- 1 x PS/2 mouse

- 1 x 6 in 1 audio jack

- 4 x USB 2.0 ports

- 1 x RJ45 LAN jack

- 1 x IEEE1394 Firewire jack

Dimension

24.4cm(L) x 24.4cm(W) M-ATX Form Factor

Mounting

6 mounting holes.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
