Pegatron AP480-S Rev 1.03 Mainboard + Blende Sockel AM2 AM2+ DVI SATA LAN* m656

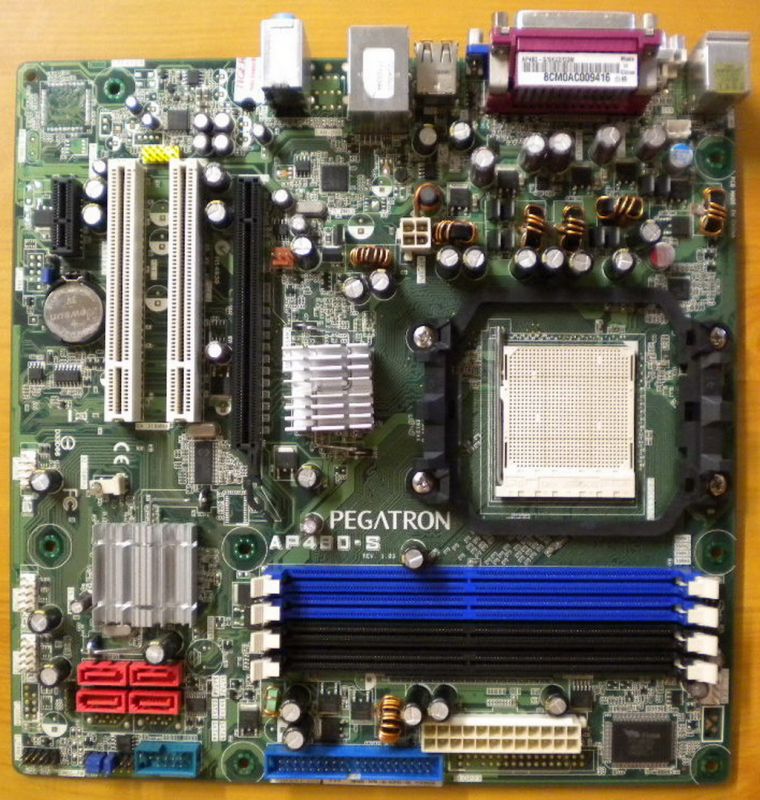

Pegatron AP480-S Rev 1.03 Mainboard + Blende

z.B. für Hyrican PC´s oder auch andere


Technische Daten

CPU/Processor

Socket: AM2

Supports AMD® Athlon™ 64, Sempron, AMD Athlon™ 64 X2, AM2+ CPU and Phenom processors.

Front-side bus (FSB)

HT3 (Socket AM2+ with RS780, up to 5.2 GT/s)

HT1 (Socket AM2 with RS780, 2.0 & 1.6 GT/s)

2000 MT/s HyperTransport™

Chipset

North bridge: ATI RS780

South bridge: ATI SB700

Form factor

Micro ATX size 240x240mm (9.6"x9.6") 4 Layers

Memory

Dual Channel DDR2 667/800/1066, Unbuffered DIMM

Support 4x DDRII DIMM (8 GB Maximum capacity)

Steckplätze

1x PCI Express® X16 Slot, 1x PCI Express® X1 Slot, 2x PCI Slot

Video graphics

ATI RS780 on-die graphic solution (ATI Radeon)

ATI AVIVO technology support

Multiple display features support

One D-Sub VGA port on the rear side

One DVI port on the rear side

Onboard audio

CODEC ALC 888s 8CH or 6CH, support Vista Premium

Onboard LAN

MAC Gigabit: PCIE RTL8111C-VC (10/100/1000 Ethernet)

SATA Interface + IDE

SB700 built-in

4x SATA II connectors

1x IDE Port for 2 IDE devices

USB

12 x USB2.0/1.1 (Rear 4 ports, Front 6ports)

Back panel I/O

PS/2 keyboard (purple)

PS/2 mouse (green)

One LPT port

One DVI port

One VGA port

Four USB (2.0)

One RJ-45 networking port (Gigabit LAN)

Audio ports:

line in (light blue)

line out (lime)

microphone (pink)

Internal connectors

One IDE connector

One Chassis Intrusion connector

One ATX 24-pin power connector

One ATX 4-pin +12v power connector

Four Serial ATA connectors

One 4-pin CPU fan connector

One 3-pin Chassis fan connector

One COM1 connector

One Azalia Front Audio connector

One Front Panel connector

One SPDIF Out connector

Three USB connectors supporting 2.0 ports

Clear CMOS + Clear Password Jumper

BIOS Features:

SPI 8Mb (AMI)

Lieferumfang

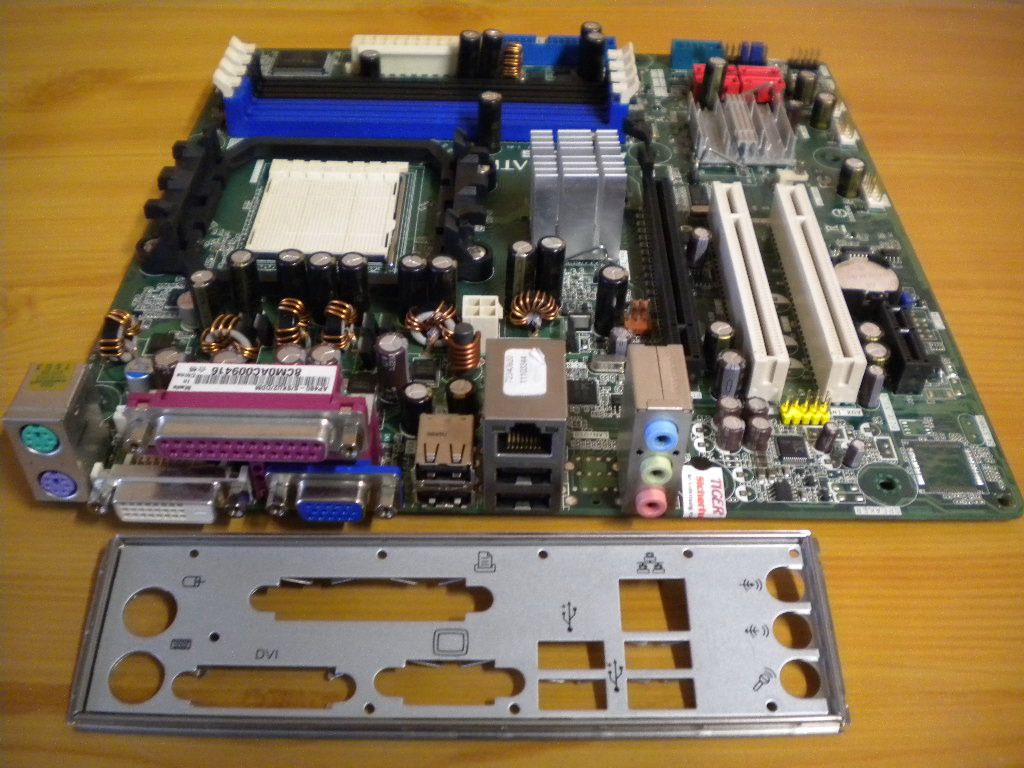

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

 Abbildung ähnlich
