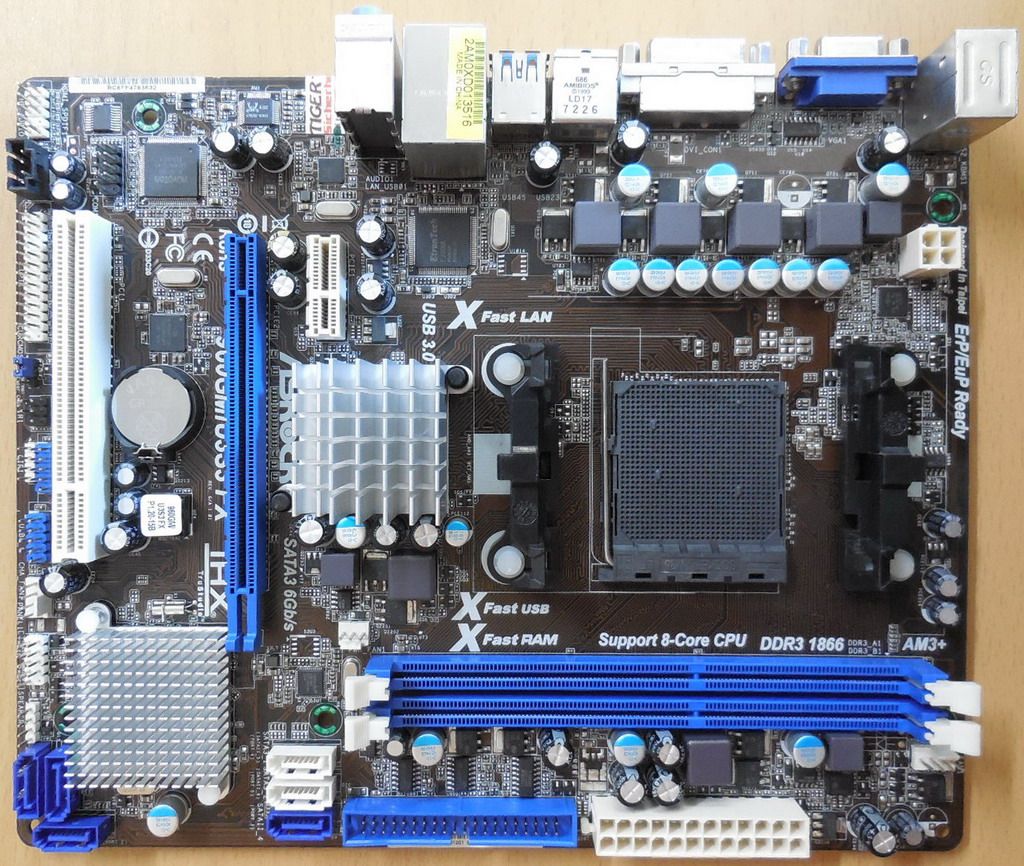

ASRock 960GM U3S3 FX Rev1.01 Mainboard +Blende Sockel AM3+ DDR3 VGA DVI* m1066

ASRock 960GM/U3S3 FX Rev 1.01 Mainboard + Blende Sockel AM3+ DDR3 VGA DVI USB3.1 LAN Audio

Technische Daten

CPU

Support for Socket AM3 AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors

Support up to 95W Socket AM3+ processors

Supports 8-Core CPU

Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration), AMD's Cool 'n' Quiet Technology, Untied Overclocking Technology

AMD LIVE!™ Ready

FSB 2600 MHz (5.2 GT/s)

Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipsatz

AMD 760G Northbridge + AMD SB710 Southbridge

Arbeitsspeicher

2 x DDR3 DIMM slots

Supports DDR3 1866(OC)/1600(OC)/1333/1066/800 non-ECC, un-buffered memory

Max. capacity of system memory 16GB*

Dual Channel DDR3 memory technology

*Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

Grafik

Integrated AMD Radeon 3000 graphics

DX10 class iGPU, Pixel Shader 4.0

Max. shared memory 512MB

Two graphics output options       Support DVI-D and D-Sub ports by independent display controllers

Supports DVI with max. Auflösung up to 1920x1200 @ 75Hz

Supports D-Sub with max. Auflösung up to 2048x1536 @ 85Hz

Supports HDCP function with DVI-D port

Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port

Audio

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN

Realtek RTL8111E PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Supports Wake-On-LAN, LAN Cable Detection, Energy Efficient Ethernet 802.3az, PXE

Steckplätze

1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

1 x PCI Express 2.0 x1 slot

1 x PCI slot

Interne Anschlüsse

2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions

4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions

1 x ATA133 IDE connector (supports 2 x IDE devices)

1 x IR header

1 x CIR header

1 x LPT Print port header

1 x COM port header

1 x Internal Speaker connector

1 x System Panel connector

1 x 4-pin CPU FAN connector

1 x 4-pin Chassis FAN connector

1 x 3-pin Power FAN connector

1 x 24 pin ATX power connector

1 x 4 pin 12V power connector

1 x CD in header

1 x Front panel HD audio connector

2 x USB 2.0 headers (support 4 USB 2.0 ports)

1 x CMOS Jumper

I/O Panel

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

4 x USB 2.0 Ports

2 x USB 3.1 Gen1 Ports (Etron EJ168A)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jack: Line in / Front Speaker / Microphone

Einzigartige Features

ASRock OC Tuner; ASRock Intelligent Energy Saver; ASRock Instant Boot; ASRock Sofort-Flash; ASRock OC DNA; ASRock APP Charger; ASRock XFast USB; ASRock XFast LAN; ASRock XFast RAM

Hybrid Booster       CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)

BIOS

8Mb AMI Legal BIOS

Supports "Plug and Play", jumperfree

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

CPU, VCCM, NB Voltage Multi-adjustment

Hardware Überwachung

CPU Temperature Sensing ; Chassis Temperature Sensing; CPU, Chassis, Power Fan Tachometer; CPU, Chassis Quiet Fan; CPU, Chassis Fan multi-speed control; Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Formfaktor

Micro ATX Form Factor; 9.6-in x 7.8-in (24.4 cm x 19.8 cm)

Solid Capacitor for CPU Power

Betriebssystem

Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant

Zertifizierungen

FCC, CE; ErP/EuP Ready (ErP/EuP ready power supply is required)

Lieferumfang

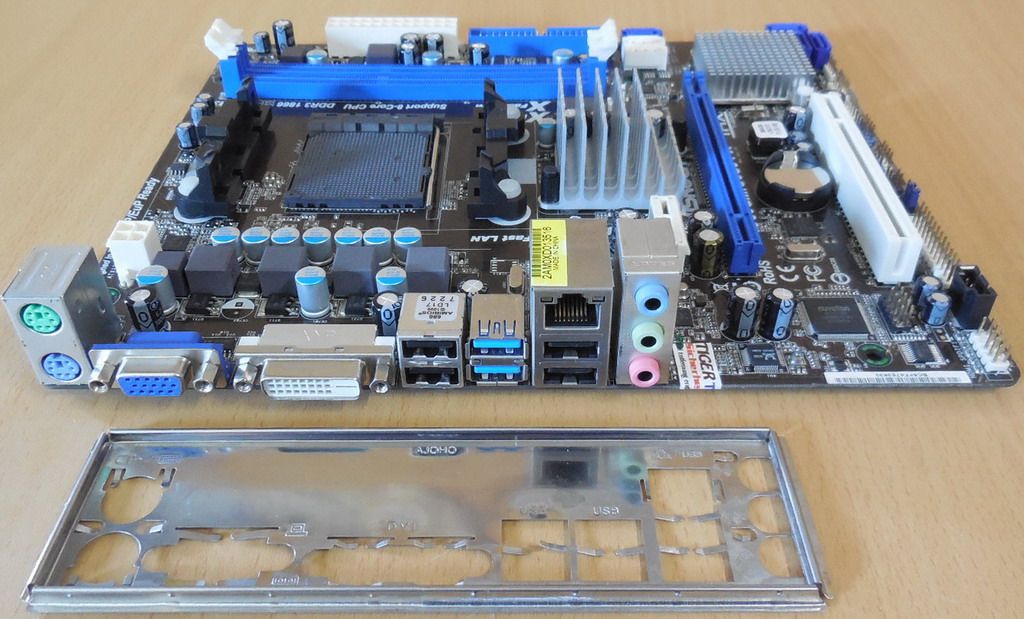

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
