Produktbeschreibung

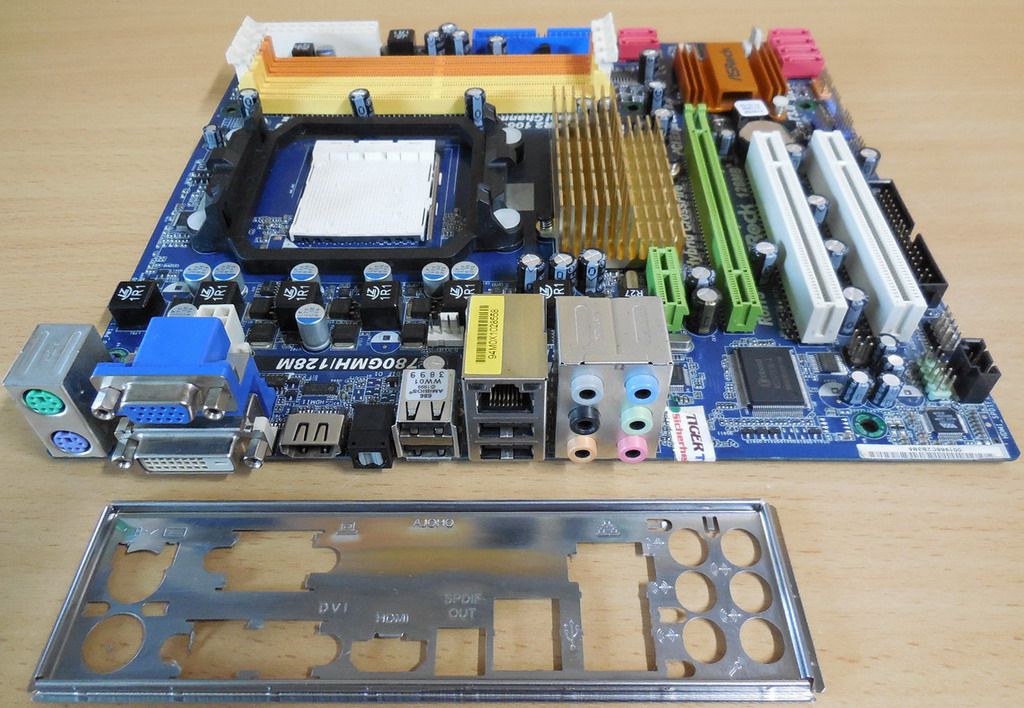

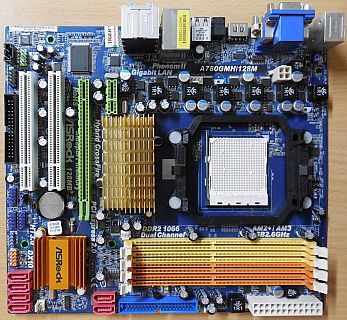

ASRock A780GMH/128M Rev 1.01 Mainboard + Blende AMD 780G Sockel AM3 AM2+ VGA DVI HDMI
Technische Daten
Prozessor / CPU
Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
Support for Socket AM3 processors: AMD Phenom™ II X4 / X3 and Athlon II X4 / X3 / X2 processors
FSB 2600 MHz (5.2 GT/s)
Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration), AMD's Cool 'n' Quiet Technology, Untied Overclocking Technology, Hyper-Transport 3.0 (HT 3.0) Technology
AMD LIVE!™ Ready
Chipsatz
AMD 780G Northbridge + AMD SB710 Southbridge
Arbeitsspeicher
Dual Channel DDR2 memory technology
4 x DDR2 DIMM slots
Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
Max. capacity of system memory: 16GB**
*Support with AM3 / AM2+ CPU.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
VGA
Integrated AMD Radeon HD 3200 graphics
DX10 class iGPU, Pixel Shader 4.0
Max. shared memory 512MB
Integrated 128MB side port memory for iGPU
Three graphics output options: D-Sub, DVI-D and HDMI
Supports HDMI Technology with max. resolution up to 1920x1200 (1080P)
Supports Dual-link DVI with max. resolution up to 2560x1600 @ 75Hz
Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
Supports HDCP function
Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
Erweiterungsschächte
1 x PCI Express 2.0 x16 slot (green @ x16 mode)
1 x PCI Express 2.0 x1 slot
2 x PCI slots
Supports ATI™ Hybrid CrossFireX™
LAN
Realtek® RTL8111DL 10/100/1000 Mb/s Gigabit LAN Controller
Supports Wake-On-LAN, PXE
Audio
7.1 CH Windows® Vista™ Premium Level HD Audio (VIA® VT1708S Audio Codec)
USB-Schnittstellen
10 x USB 2.0/1.1-Anschlüsse (6 auf Board-Mitte, 4 auf der Rücktafel)
Unique Feature
ASRock OC Tuner
Intelligent Energy Saver (Support with Phenom CPU)
Instant Boot
Hybrid Booster: CPU Frequency Stepless Control; ASRock U-COP; Boot Failure Guard (B.F.G.); ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Anschlüsse (Rückseite)
1 x HDMI
1 x VGA
1 x DVI
4 x Ready-to-Use USB 2.0/1.1
1 x LAN (RJ45) Schnittstelle
1 x PS/2 Tastatur
1 x PS/2 Maus
1 x S/PDIF-Ausgang (optisch)
HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
interne Anschlüsse
6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug functions
1 x ATA133 IDE connector (supports 2 x IDE devices)
1 x Floppy connector
1 x IR header
3 x USB 2.0 headers (support 6 USB 2.0 ports)
1 x COM port header
1 x 4-pin CPU FAN connector
1 x 3-pin Chassis FAN connector
1 x 3-pin Power FAN connector
1 x CD in header
1 x HD_Audio1 Front Panel Audio connector
1 x Front System Panel connector
1 x PS2-KBMS1 Jumper
1 x CLRCMOS Jumper
24-pin ATX power connector
4-pin 12V power connector
BIOS
8Mb AMI BIOS; AMI Legal BIOS
Supports "Plug and Play", jumperfree, Smart BIOS
ACPI 1.1 Compliance Wake Up Events
SMBIOS 2.3.1 Support
CPU, DRAM, NB Voltage Multi-adjustment
Hardware Monitor
CPU Temperature Sensing
Chassis Temperature Sensing
CPU, Chassis, Power Fan Tachometer
CPU Quiet Fan
Voltage Monitoring: +12V, +5V, +3.3V, Vcore
OS
Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant
Formfaktor
Micro ATX Form Factor; 9.6-in x 8.6-in (24.4 cm x 21.8 cm)
Solid Capacitor for CPU Power
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
