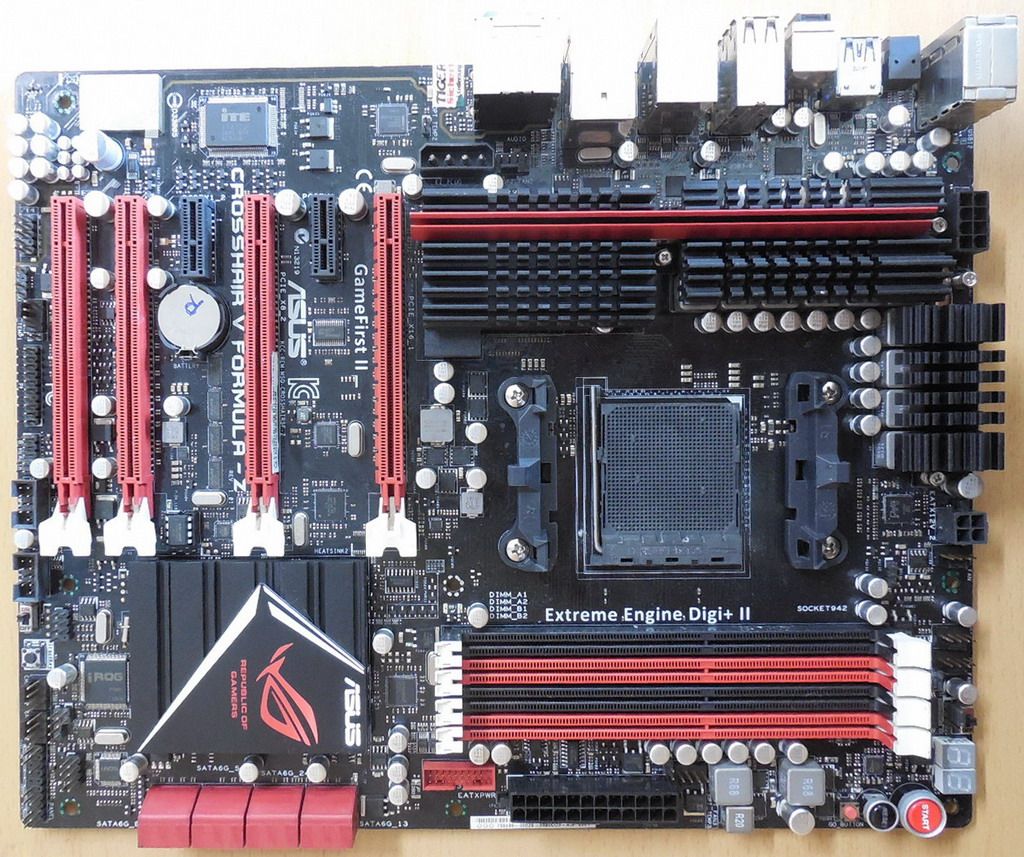

ASUS CROSSHAIR V FORMULA-Z Rev1.01 Mainboard AMD 990FX Sockel AM3+ Supreme*m1088

ASUS CROSSHAIR V FORMULA-Z Rev 1.01 Mainboard + Blende AMD 990FX Sockel AM3+ DDR3 USB3.0 3-Way Quad SLI SATA III SupremeFX III

Technische Daten

CPU

AMD® Sockel AM3+ für AMD® FX Series CPU bis zu 8-Kerne

Kompatibel mit AMD® Socket AM3 for AMD® Phenom^TM II / Athlon^TM II / Sempron^TM 100 Series Prozessoren

AMD 140W CPU Unterstützung

AMD Cool ´n` Quiet^TM Technology

Unterstützt AM3+ 32nm CPU

Chipset

AMD® 990FX / SB950

Systembus

Bis zu 5200 MT/s; HyperTransport™ 3.0-Schnittstelle

Memory

4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2133(O.C.)/1866/1600/1333/1066MHz, ECC, Non-ECC, un-buffered Memory

Dual channel memory architecture

* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operating system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended

** Refer to the ASUS Website or user manual for the Memory QVL

Expansion Slots

3 x PCIe 2.0 x16 slots (Dual at x16 speed or x16/x8/x8 Modus)

1 x PCIe 2.0 x16 slot (Rot; at x4 speed)

2 x PCIe 2.0 x1 slots

Multi-GPU support

Supports NVIDIA® Quad-GPU SLI^TM Technology

Supports AMD® Quad-GPU CrossFireX^TM Technology

Supports NVIDIA® 3-WAY SLI^TM Technology

Supports AMD® 3-WAY CrossFireX^TM Technology

Storage

by AMD® SB950 Chipset       6 x SATA 6Gb/s ports (rot) with RAID 0, 1, 5 and 10 support

by ASMedia® SATA controller       2 x SATA 6Gb/s ports (rot) + 2 x e-SATA 6Gb/s port (rot)

LAN

Intel® Gigabit LAN controller

Audio

SupremeFX III Integriertes 8-Kanal High-Definition Audio-CODEC

Unterstützt Buchsenerkennung, Multi-Streaming und Frontafel-Buchsenneubelegung

SupremeFX Shielding™-Technologie

1500 uF Audio-Leistungskondensator

Vergoldete Anschlüsse

Audio-Eigenschaften

Blu-Ray-Audio-Layer-Inhaltsschutz

Anschlüsse für optische S/PDIF-Ausgabe an der Rücktafel

DTS UltraPC II

DTS Connect

USB

3 x ASMedia® USB3.0 controllers       2 x USB3.0/2.0 ports at mid-board for front panel support; 4 x USB3.0/2.0 ports at back panel (blau)

AMD® SB950 chipset       12 x USB2.0/1.1 ports (4 ports at mid-board, 8 ports at back panel)

Exklusive ROG Funktionen

ROG Connect       RC Diagram, RC Remote, RC Poster, GPU TweakIt

ROG Extreme Engine Digi+ II       8+2-Phasen CPU power, 2-Phasen DRAM power

UEFI BIOS features       ROG BIOS Print, GPU.DIMM Post

GameFirst II

iROG

Extreme Tweaker

Loadline Calibration

Übertaktungsschutz       COP EX (Component Overheat Protection -EX Überhitzungsschutz für Komponenten, ASUS C.P.R. (CPU Parameter Recall)

ASUS Unique Features

ASUS TPU       CPU Level Up

ASUS Exclusive Features       MemOK!; AI Charger+

ASUS Quiet Thermal Solution       ASUS Fan Xpert

ASUS Q-Design       ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); ASUS Q-Connector

ASUS EZ DIY       ASUS O.C. Profile; ASUS EZ Flash 2; ASUS MyLogo 3; ASUS Q-Shield

Internal I/O Connectors

1 x ATX 24-Pin power connector

1 x 8-pin EATX 12V power connector

1 x 4-pol. EATX 12V power connector

1 x 4-pin CPU FAN connector

3 x 4-pin OPT FAN connectors

3 x 4-pin Chassis FAN connector

1 x Fast Boot Switch

1 x Slow Mode Switch

1 x Front panel audio connector (AAFP)

1 x System Panel Q-connector

2 x USB2.0/1.1 connectors support additional 4 USB2.0/1.1 ports

1 x USB3.0/2.0 connector supports additional 2 USB3.0/2.0 ports (19-pin)

8 x SATA 6Gb/s connectors

1 x LN2 Mode Jumper

3 x Temperature Sensor connectors

1 x S/PDIF-Out header

1 x DirectKey button

1 x START button

1 x Reset button

1 x Go button

8 x ProbeIt-Messpunkte

1 x DRCT Header

1 x Q-Code LEDs

1 x TPM-Header

1 x TB-Header

1 x 4-pol Molex EZ connector

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard combo port

1 x ROG Connect button

2 x eSATA 6GB/s ports (red)

1 x Optical SPDIF Out port

1 x RJ45 LAN port

1 x CMOS Clear button

4 x USB3.0/2.0 ports (blue)

8 x USB2.0/1.1 ports (white port for ROG Connect)

6 x Audio jacks for 8-channel Audio

BIOS features

64MB Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5; ACPI 2.0a; Multi-language BIOS

Manageability

WOL by PME, WOR by PME, PXE

Form factor

30.5cm(L) x 24.4cm(W) ATX Form Factor; 12 in. x 9.6 in.

Lieferumfang

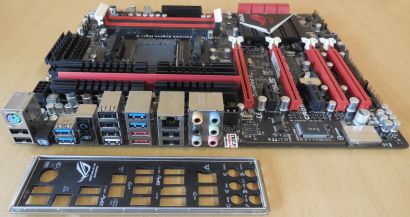

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
