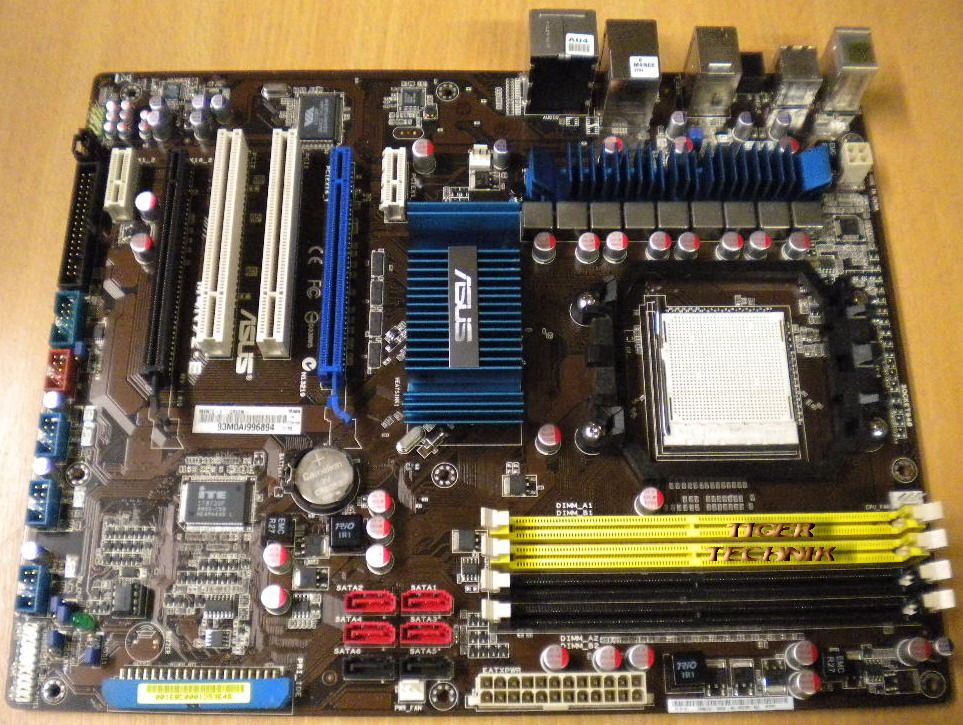

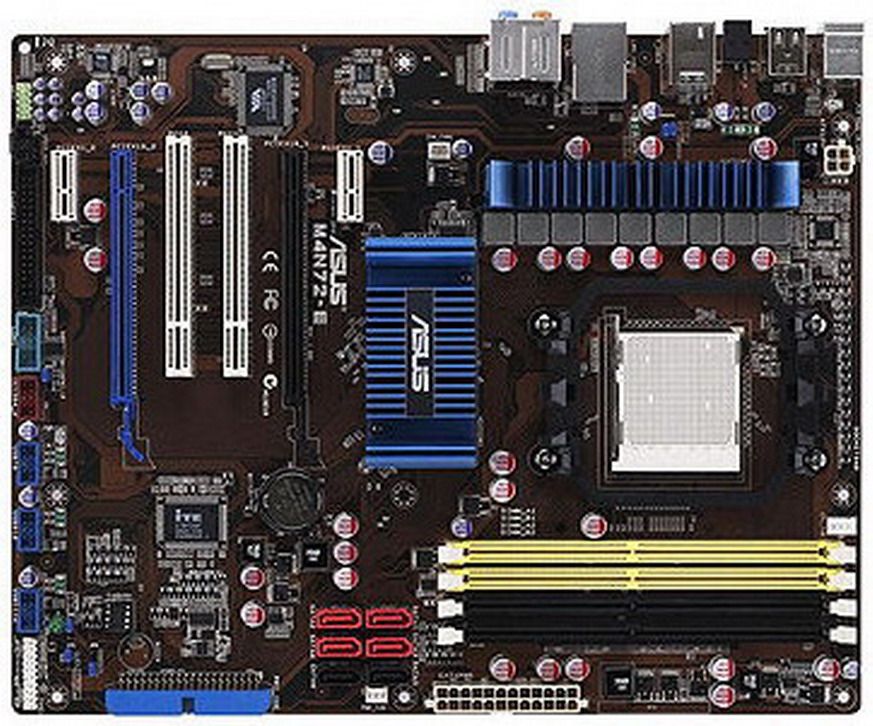

ASUS M4N72-E nForce 750a AM2 AM2+ AM3 AMD Phenom™II X4 ATX Mainboard* m157

ASUS M4N72-E Rev1.01G nForce 750a

AM2 AM2+ AM3 AMD Phenom™ II X4 ATX

Mainboard + Blende

Spezifikation

CPU

AMD Compatible with Phenom™ II/Athlon™ X4/Athlon™ X3/ Athlon™ X2(AM3 CPU)
Support 45nm Phenom™ II CPU Socket AM2+ / AM2 ;Athlon /Phenom X4/Athlon X2/Phenom X3/Sempron Processors

Chipsatz    nForece 750a SLI

System Bus

5200/Up to HyperTransport™ 3.0 interface for AM3/AM2+ CPU
2000 / 1600 MT/s for AM2 CPU MT/s

Memory

4 x DIMM, 16 GB, DDR2 1066*/1300(O.C.)/800/667 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Due to AMD CPU limitation, DDR2 1066 is supported by AM3/AM2+ CPU for one DIMM per channel only. Refer to www.asus.com for the memory QVL (Qualified Vendors Lists).
Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

2 x PCIe 2.0 x16 (Single x16 or Dual x8)
2 x PCIe x1
2 x PCI 2.2

Multi-GPU Support    Support NVIDIA® SLI™ Technology at x8 link

Storage

NVIDIA nForce 750a SLI chipset
- 1 x Ultra DMA 133 / 100
- 6 x SATA 3Gb/s ports (Legacy IDE operation is only supported on drives 1–4.)
- NVIDIA® MediaShield™ RAID supports RAID 0, 1, 0+1, 5, and JBOD

LAN    Realtek 8211CL Gigabit/10 LAN controller featuring AI NET 2

Audio

VIA1708S 8-Channel High Definition Audio CODEC
- Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Optical S/PDIF Out ports at back I/O
- ASUS Noise Filtering
- DTS Surround Sensation UltraPC

IEEE 1394   2 VIA VT6308P controller supports x 1394a ports

USB

12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS AI Lifestyle Features

ASUS Power Saving Solutions:
- 8+1 Phase Power Design
- ASUS Anti-Surge Protection
ASUS Green Design:

- EPU
- ASUS EPU is supported by AM3/AM2+ CPU only
- ASUS AI Nap
Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fanless Design:stylish heatsink solution
- ASUS Q-Fan2
ASUS EZ DIY:
- ASUS Q-Connector
- ASUS CrashFree BIOS 2
- ASUS O.C. Profile
- ASUS EZ Flash 2

Overclocking Features

Intelligent overclocking tools
- AI Overclocking (intelligent CPU frequency tuner)
-TurboV
-Turbo Key
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 600MHz 1MHz increment
Memory tuning from 533MHz up to 1066MHz
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

100% All High-quality Conductive Polymer Capacitors! (5000hrs VRM, over 57 years operation lifespan at 65∘C)
ASUS MyLogo 2

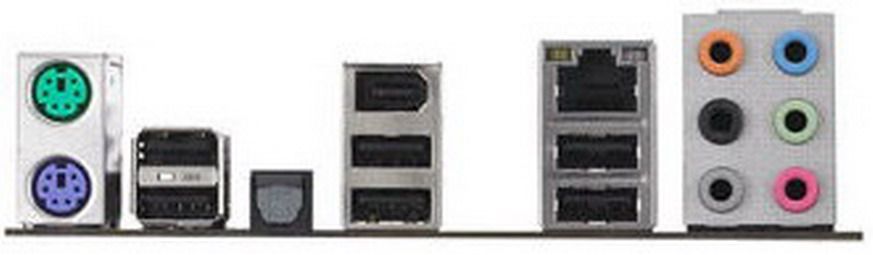

Back Panel I/O Ports

1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x S/PDIF Out (Optical)
1 x IEEE 1394a
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O

Internal I/O Connectors

3 x USB connectors (6 ports)
1 x Floppy disk drive connector
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
Front panel audio connector
Chassis Intrusion connector
1 x COM connector
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
System Panel (Q-Connector)

BIOS

8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0, ASUS EZ Flash 2, CrashFree BIOS 2

Form Factor    ATX Form Factor    12 inch x 9.6 inch 30.5 cm x 24.4 cm )

Lieferumfang

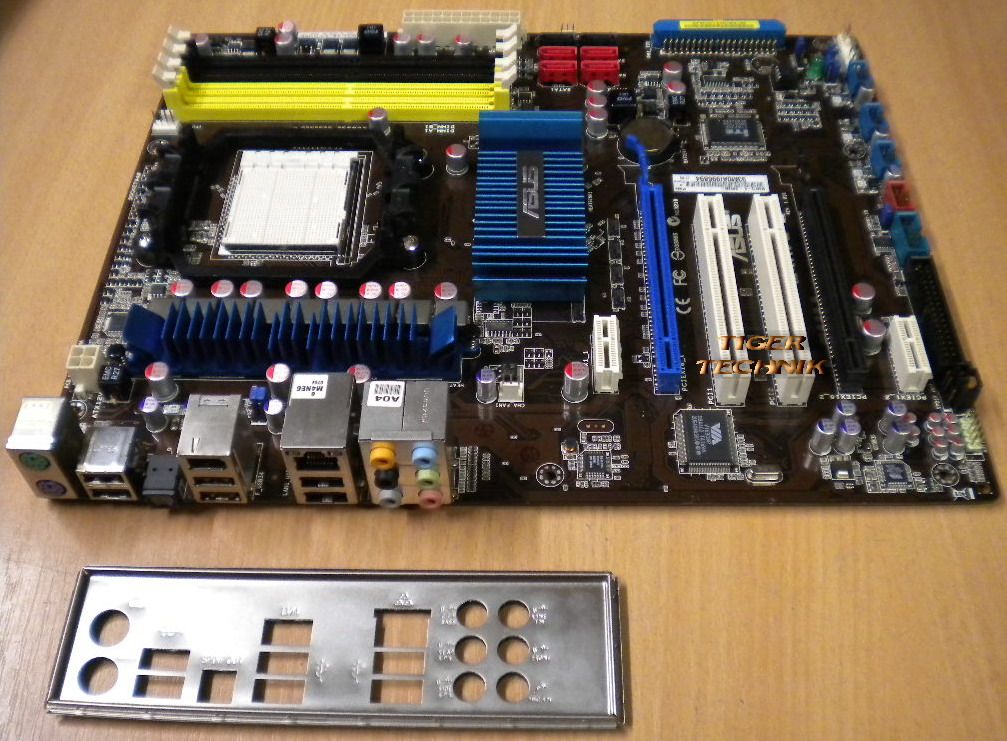

ASUS M4N72-E Mainboard + Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
