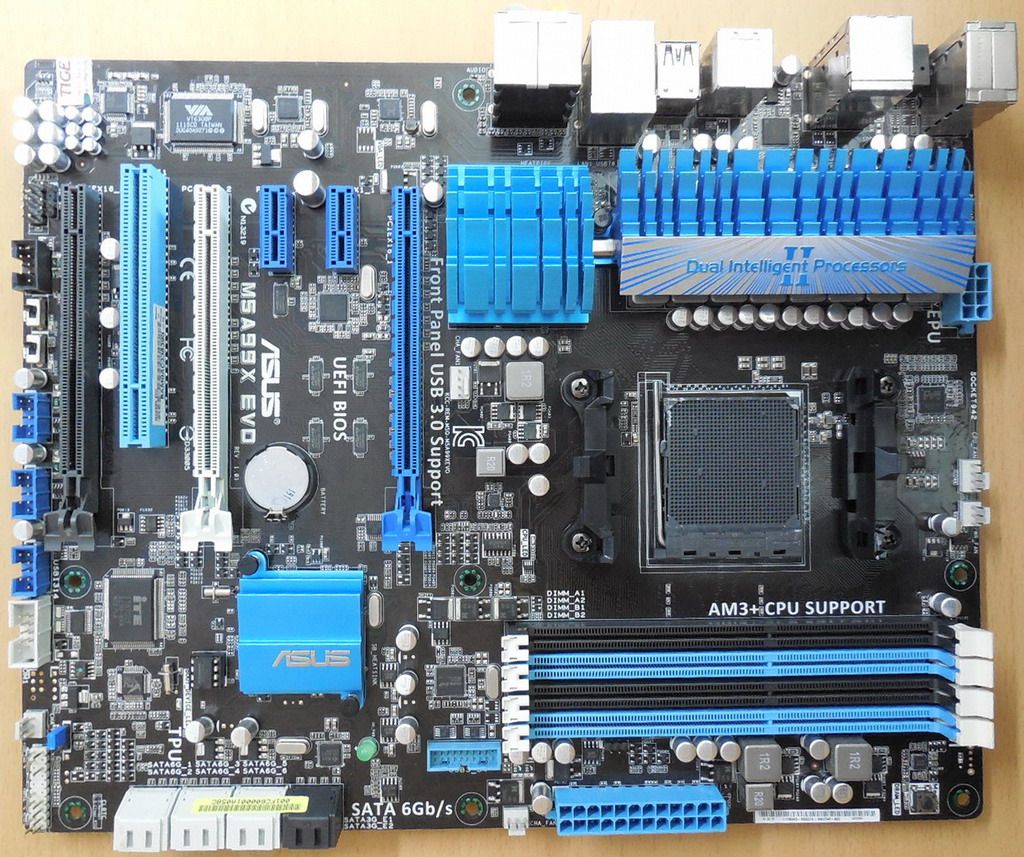

ASUS M5A99X EVO Rev1.01 Mainboard +Blende AMD 990X Sockel AM3+ DDR3 USB3.0*m1086

ASUS M5A99X EVO Rev 1.01 Mainboard + Blende AMD 990X Sockel AM3+ DDR3 USB3.0

Technische Daten

CPU

AMD® Socket AM3+ for AMD® FX Series CPU up to 8-Core

Compatible with AMD® Socket AM3 for AMD® Phenom^TM II / Athlon^TM II / Sempron^TM 100 Series Processors

AMD 140W CPU Support

AMD Cool ´n` Quiet^TM Technology

Supports AM3+ 32nm CPU

Chipset

AMD® 990X / SB950

Systembus

Bis zu 5200 MT/s; HyperTransport™ 3.0-Schnittstelle

Memory

4 x DIMM, Max. 32GB, DDR3 2133(O.C.)/1866/1600/1333/1066MHz, ECC, Non-ECC, un-buffered Memory

Dual channel memory architecture

*Due to CPU specifications, AMD® 100 & 200 Series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR 1333MHz.

**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operating system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

***Refer to the ASUS Website or user manual for the Memory QVL.

Expansion Slots

2 x PCIe 2.0 x16 slots (Single at x16 speed; Dual at x8/x8 speed)

1 x PCIe 2.0 x16 slot (Black; at x4 speed)

2 x PCIe 2.0 x1 slots

1 x PCI slot

Multi-GPU support

Supports NVIDIA® Quad-GPU SLI^TM Technology

Supports AMD® Quad-GPU CrossFireX^TM Technology

Storage

by AMD® SB950 Chipset       6 x SATA 6Gb/s ports (gray) with RAID 0, 1, 5 and 10 support

by 2 x JMicron® JMB362 SATA controller       2 x SATA 3Gb/s ports (black) + 1 x Power e-SATA 3Gb/s port (red) + 1 x e-SATA 3Gb/s port (türkis)

LAN

Realtek® 8111E Gigabit LAN controller

Audio

Realtek® ALC892 8-channel High Definition Audio CODEC

Supports jack-detection, multi-streaming and front panel jack-retasking

Supports 192khz / 24bit True BD Lossless Sound

DTS UltraPC

Optical S/PDIF Out port at back I/O

ASUS Noise Filter

USB

2 x ASMedia® USB3.0 controllers       2 x USB3.0/2.0 ports at mid-board for front panel support; 2 x USB3.0/2.0 ports at back panel (blue)

AMD® SB950 chipset       14 x USB2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)

IEEE 1394

VIA® 6308P Controller supports 2 x IEEE 1394a ports (1 port at mid-board, 1 port at back panel)

ASUS Unique Features

ASUS Dual Intelligent Processors 2 with DIGI+ VRM

ASUS DIGI+ VRM       Industry leading Digital 6+2 Phase Power Design; ASUS DIGI+ VRM-Utility

ASUS EPU       EPU; EPU switch

ASUS TPU       Auto Tuning; TurboV, TPU switch

ASUS Exclusive Features       ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface; Front Panel USB3.0 Support; MemOK!; AI Suite II; AI Charger+

ASUS Quiet Thermal Solution       ASUS Fanless Design: Heat pipe solution; ASUS Fan Xpert

ASUS Q-Design       ASUS Q-Shield; ASUS Q-Slot; ASUS Q-DIMM; ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED); ASUS Q-Connector

ASUS EZ DIY       ASUS O.C. Profile; ASUS EZ Flash 2; ASUS MyLogo 2; Precision Tweaker 2; Multi-Language BIOS

ASUS overclocking features

Precision Tweaker 2:       vCore: Adjustable CPU voltage at 0.00625V increment; vDDNB: Adjustable CPU/NB voltage at 0.00625V increment; vNB: Adjustable NB voltage at 0.00625V increment; vNB HT bus: Adjustable HT voltage at 0.00625V increment; vDRAM Bus: Adjustable CPU voltage at 0.00625V increment; vSB: Adjustable SB voltage at 0.005V increment

SFS (Stepless Frequency Selection):       Internal Base Clock tuning from 100MHz up to 600MHz at 1MHz increment; PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment

Overclocking Protection:       ASUS C.P.R. (CPU Parameter Recall)

Internal I/O Connectors

1 x ATX 24-Pin power connector

1 x 8-pin EATX 12V power connector

1 x 4-pin CPU FAN connector

1 x 3-pin Power FAN connector

1 x 4-pin Chassis FAN connector

2 x 3-pin Chassis FAN connectors

1 x TPU Switch

1 x EPU Switch

1 x COM connector

1 x Front panel audio connector (AAFP)

1 x System Panel Q-connector

3 x USB2.0/1.1 connectors support additional 6 USB2.0/1.1 ports

1 x USB3.0/2.0 connector supports additional 2 USB3.0/2.0 ports (19-pin)

1 x IEEE1394 FireWire connector supports additional 1 port

6 x SATA 6Gb/s connectors

2 x SATA 3Gb/s connectors

1 x Clear CMOS jumper

1 x S/PDIF-Out header

1 x MemOK! button

Back Panel I/O Ports

1 x PS/2 Mouse/Keyboard combo port

1 x Power eSATA port (türkis)

1 x eSATA port (red)

1 x Optical SPDIF Out port

1 x RJ45 LAN port

1 x IEEE1394a FireWire port

2 x USB3.0/2.0 ports (blue)

8 x USB2.0/1.1 ports

6 x Audio jacks for 8-channel Audio

BIOS features

32MB Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6; ACPI 2.0a; Multi-language BIOS, ASUS EZ Flash 2

Manageability

WfM2.0, DMI2.0, WOL by PME, WOR by PME, PXE

Form factor

30.5cm(L) x 24.4cm(W) ATX Form Factor; 12 in. x 9.6 in.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
