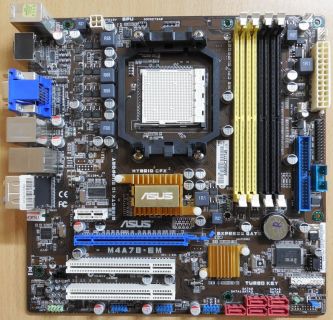

Asus M4A78-EM Rev1.03G Mainboard +Blende AMD Sockel AM3 AM2+ DDR2 VGA HDMI* m758

Asus M4A78-EM Rev 1.03G Mainboard + Blende AMD Sockel AM3 AM2+ DDR2 VGA DVI HDMI

Technische Daten

Prozessor / CPU

AMD Compatible with Phenom™ II / Athlon™ X4 / Athlon™ X3 / Athlon™ X2 (AM3 CPU)

Support 45nm Phenom™ II CPU

AMD Cool 'n' Quiet™ 2.0 Technology (by CPU type)

Support CPU up to 125W

*Refer to the Asus Website for the AMD CPU support list Socket AM2+ / AM2; Athlon / Phenom X4 / Athlon X2 / Phenom X3 / Sempron Processors

Chipsatz

AMD 780G/SB700

System Bus

Up to 5200 HyperTransport™ 3.0 interface for AM3 / AM2+ CPU MT/s

Arbeitsspeicher

4 x 240-pin DIMM, max. 16 GB, DDR2 1066*/1200(O.C.)/800/667 ECC, Non-ECC, Un-buffered Memory

Dual Channel memory architecture

*Due to AMD CPU limitation, DDR2 1066 is supported by AM2+/AM3 CPU for one DIMM per channel only.

**Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)

***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Grafik

Integrated ATI Radeon HD3200

Supports DVI-D with HDCP compliant with max. resolution 2560x1600 (@ 60Hz dual-link)

Supports HDMI™ Technology with max. resolution up to 1920 x 1200 (1080P)

Supports RGB with max. resolution 2048 x 1536 (@85Hz)

Hybrid CrossFireX™ Support (For Windows Vista only)

Dual VGA output support: RGB & DVI / RGB & HDMI

*Refer to the Website of AMD for the Hybrid CrossFireX selected GPUs.

*To playback the HD-DVD and Blu ray Disc we recommended system configuration above Graphic shared memory 256MB/Dual-Core CPU minimum/Minimum 1GB memory of Dual-channel DDR2 667 or Single -chanel DDR2 800. Max. shared memory: 256 MB

Erweiterungsschächte

1 x PCIe x16 (blau)

1 x PCIe x1

2 x PCI

Speichersystem

1 x External SATA 3Gb/s support JBOD

1 x UltraDMA 133/100

5 x SATA 3 Gb/s ports 0,1,10 Support RAID

*Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only.

LAN

PCIe Gb LAN

Audio

ALC887 High Definition Audio 8-Channel CODEC

Supports Jack-detect and Multistreaming technologies

Supports S/PDIF out interface

USB-Schnittstellen

12 x USB 2.0 Schnittstellen (6 an der Gehäuserückseite, 6 intern)

ASUS AI Lifestyle Features

ASUS EPU-4 Engine; ASUS Express Gate; ASUS Turbo Key; ASUS Q-Fan; ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS MyLogo 2; ASUS AI NET 2

Overclocking Features

SFS (Stepless Frequency Selection):       FSB tuning from 200MHz to 550MHz 1MHz increment

Adjustable DRAM Voltage

ASUS C.P.R.(CPU Parameter Recall)

Special Features

All solid capacitor

Back Panel I/O Ports

1 x PS/2 Keyboard/Mouse combo port

1 x Optical S/PDIF Out

1 x HDMI

1 x DVI

1 x D-SUB

1 x External SATA

1 x RJ45 port

6 x USB 2.0/1.1

8-Channel Audio I/O

Internal I/O Connectors

3 x USB 2.0 connector supports additional 6 USB 2.0 ports

1 x LPT connector

1 x COM connector

5 x SATA connectors

1 x IDE connector for two devices

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x Front panel audio connector

1 x S/PDIF Out connector

1 x CD audio in connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX +12V Power connector

1 x System Panel connector

BIOS

8 Mb Flash ROM AMI BIOS, PnP, DMI v2.0, WfM2.0, ACPI v2.0a, SMBIOS 2.5

Formfaktor

uATX 9.6 " x 9.6 " ( 24.4 cm x 24,4 cm )

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
