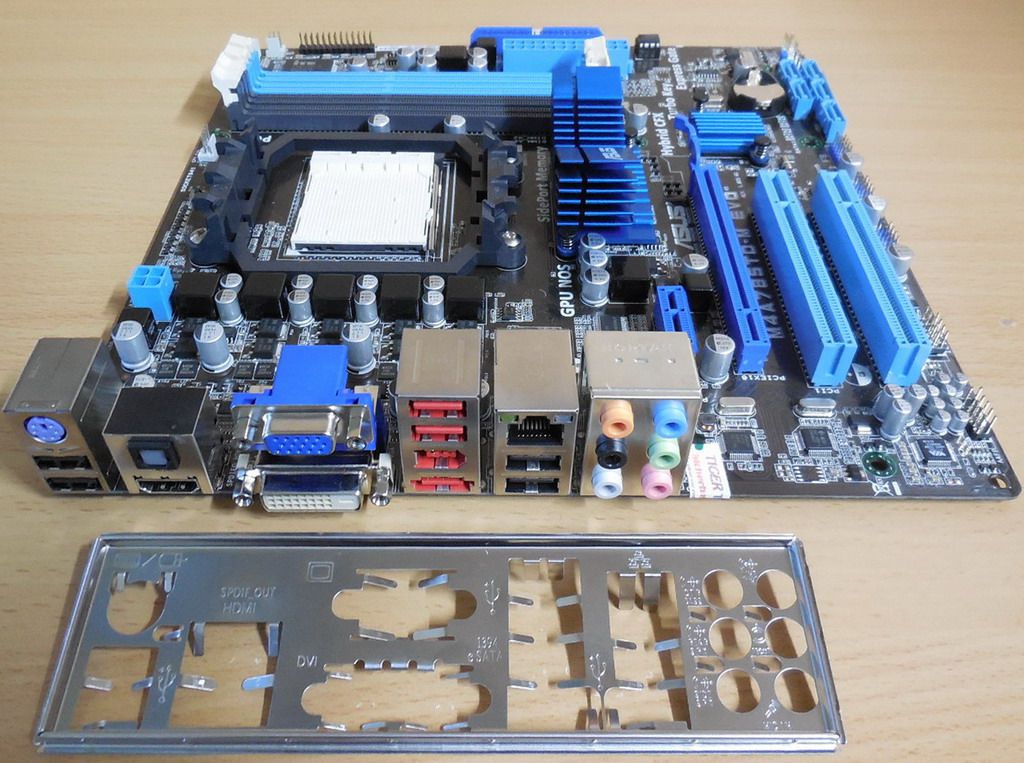

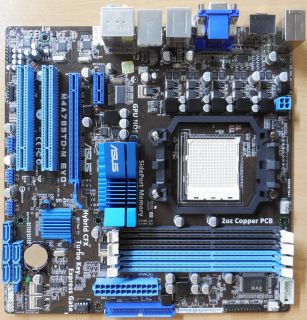

Asus M4A785TD-M EVO Rev1.02G Mainboard NEU OVP Sockel AM3 PCIe DDR3 HDMI* m857

Asus M4A785TD-M EVO Rev 1.02G Mainboard NEU OVP Sockel AM3 PCIe DDR3 VGA HDMI Audio SATA2

Technische Daten

CPU

AMD Sockel AM3 Phenom™ II / Athlon™ II / Sempron™ 100 Series Prozessoren

Unterstützt 45nm-CPUs

AMD Cool ´n´ Quiet 2.0 Technologie

Chipsatz

AMD 785G / SB710

System Bus

Bis zu 5200 MT/s HyperTransport™ 3.0 Schnittstelle

Memory

Dual Channel Memory Architektur

4 x DIMM Steckplätze DDR3 1800(O.C.)/1600(O.C.)/1333/1066 ECC, Non-ECC, Un-buffered Memory; max. 16GB

Eine Liste qualifizierter Anbieter (QVL) finden Sie auf der Website von Asus oder im Handbuch.

*AMD AM3 100 and 200 series Prozessoren unterstützten bis zu DDR3 1066MHz.

*Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit WindowsWindows® OS when you want to install 4GB or more memory on the motherboard.

Erweiterungssteckplätze

1 x PCIe 2.0 x16

1 x PCIe x1

2 x PCI

VGA

ATI Radeon™ HD 4200 GPU

SidePort Memory - Onboard 128MB DDR3 1333 Memory

- Supports HDMI™ Technology with max. resolution up to 1920 x 1200 (1080P)

- Supports Dual-link DVI with max. resolution up to 2560x1600 @60Hz

- Supports D-Sub with max. resolution up to 2560x1440 @75Hz

- Hybrid CrossFireX™ Support

- Dual independent displays support with HDMI / DVI and D-Sub

- Supports Microsoft® DirectX 10.1, OpenGL 2.0, Shader Model 4.1

- Hardware Decode Acceleration for H.264, VC-1, and MPEG-2

- Maximum shared memory of 512MB

*Refer to the Website of AMD for the Hybrid CrossFireX selected GPUs.

Storage (SB710)

1 x eSATA 3Gb/s port

1 x UltraDMA 133/100/66 for up to 2 PATA devices

5 x SATA 3 Gb/s ports; Support RAID 0,1,10,JBOD

LAN

RTL8112L PCIe Gigabit LAN controller featuring AI NET 2

Audio

VT1708S 8-Channel High Definition Audio CODEC

- Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking

- Optical S/PDIF Out ports at back I/O

IEEE 1394

JMB381 controller supports 2 x 1394a ports (1 x at mid-board; 1 x at back panel)

USB

12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

ASUS AI Lifestyle Features

ASUS Green Design: EPU-4 Engine

Express Gate

ASUS EZ DIY: ASUS Q-Fan; ASUS CrashFree BIOS 3; ASUS AI NET2; ASUS MyLogo 2; ASUS EZ Flash 2

ASUS EZ DIY

Overclocking Features

Intelligent overclocking tools: GPU NOS (*GPU NOS does not take effect under Hybrid CrossFireX mode.); Turbo Key

SFS (Stepless Frequency Selection): FSB tuning from 200MHz up to 550MHz 1MHz increment; PCI Express frequency tuning from 100MHz 150MHz at 1MHz

Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)

Special Features

100% All High-quality Conductive Polymer Capacitors!

AMD OverDrive Support*

*Advanced cooling system is required when advanced overclock functions of AMD OverDrive are enabled.

Back Panel I/O Ports

1 x DVI

1 x D-Sub

1 x PS/2 Keyboard/Mouse Combo port

1 x HDMI

1 x External SATA

1 x Optical S/PDIF Out

1 x IEEE 1394a

1 x RJ45 port

6 x USB 2.0/1.1

8 Channel Audio I/O

Internal I/O Connectors

3 x USB connectors (up to 6 ports)

1 x COM connector

1 x LPT connector

24-pin ATX Power connector

4-pin ATX 12V Power connector

1 x IDE connector

5 x SATA connectors

1 x IEEE 1394a connector

1 x CPU Fan connector

1 x Chassis Fan connector

1 x S/PDIF Out connector

1 x Front panel audio connector

1 x System Panel connector

BIOS

8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

Manageability

WOR by Ring,WOL by PME,WOR by PME,Chasis Intrusion,WOR by PME

Zubehör

User's manual; I/O Shield; 1 x UltraDMA 133/100/66 cable; 2 x SATA cable; Support CD

Form Factor

uATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Lieferumfang

Mainboard mit Zubehör laut Handbuch * NEU & OVP *

Abbildung ähnlich
