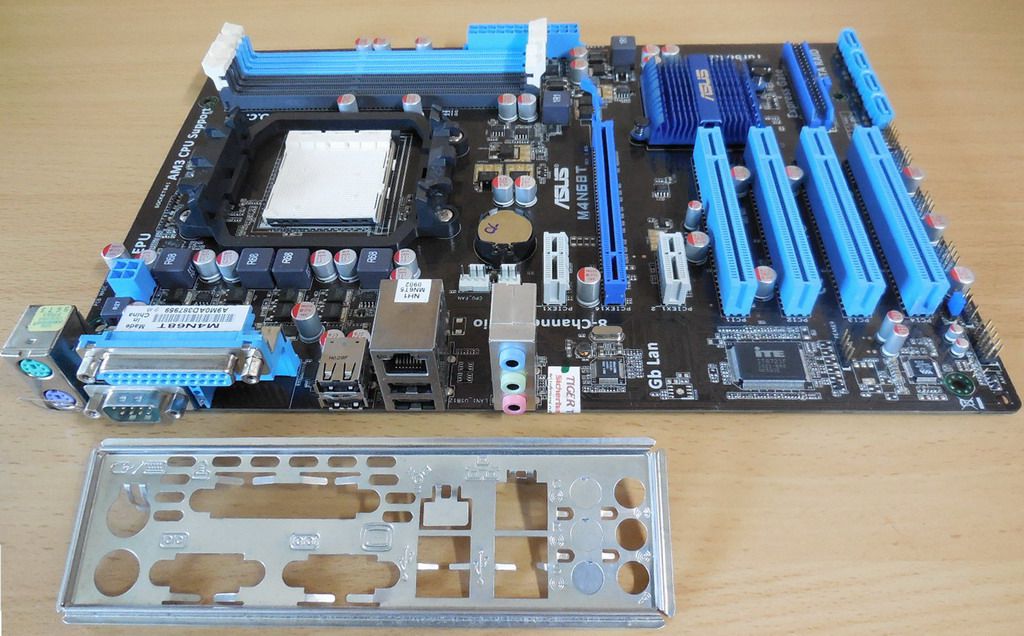

Asus M4N68T Rev 1.03G Mainboard NEU OVP Sockel AM3 PCIe DDR3 GbLAN SATA* m888

Asus M4N68T Rev 1.03G Mainboard NEU OVP Sockel AM3 PCIe DDR3 GbLAN SATA

Technische Daten

CPU

AMD Socket AM3 Phenom™ II / Athlon™ II / Sempron™ 100 Series Processors

AMD64 architecture enables simultaneous 32-bit and 64-bit computing

Chipsatz

nForce 630a

System Bus

2000 / 1600 MT/s HyperTransport 1.0 Interface

Memory

4 x DIMM, max. 16 GB, DDR3 1600*/1800*/1333/1066 ECC, Non-ECC, Un-buffered Memory

Dual Channel memory architecture

*AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz

**Please refer to www.asus.com or user manual for Memory QVL.

Expansion Slots

1 x PCIe x16

2 x PCIe x1

4 x PCI

Storage

1 x UltraDMA 133/100

4 x SATA 3 Gb/s ports

Support RAID (0,1,5,10,JBOD)

LAN

Realtek RTL8211CL GbE LAN

Audio

VT1708S High Definition Audio 8-Channel CODEC

- Support S/PDIF out interface

- Support Multi-streaming,Single SPDIF Out, Anti-pop Function

*Choose the chassis with HD audio module in front panel to support 8-Channel audio output

USB

10 x USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)

ASUS AI Lifestyle Features

ASUS EPU-4 Engine; ASUS Express Gate; ASUS Q-Fan; ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS AI NET 2; ASUS MyLogo 2

Overclocking Features

Intelligent overclocking tools: ASUS Turbo Key

SFS (Stepless Frequency Selection): HT tuning from 200MHz up to 550MHz at 1MHz increment; PCI Express frequency tuning from 100MHz 150MHz at 1MHz

Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)

Special Features

100% All High-quality Conductive Polymer Capacitors

Back Panel I/O Ports

1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x RJ45 port

4 x USB 2.0/1.1

1 x COM port

3-Channel Audio I/O

Internal I/O Connectors

3 x USB connectors (6 ports)

1 x Front panel audio connector (AAFP)

1 x SPDIF out

1 x Internal speaker connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x System Panel connector

1 x IDE connector

4 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

BIOS

8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0

Accessories

User's manual

I/O Shield

1 x UltraDMA 133/100/66 cable

2 x SATA cable

Support CD

Form Factor

ATX Form Factor; 12 inch x 8.2 inch (30.5 cm x 20.8 cm)

Lieferumfang

Mainboard mit Zubehör laut Handbuch * NEU & OVP *

Abbildung ähnlich
