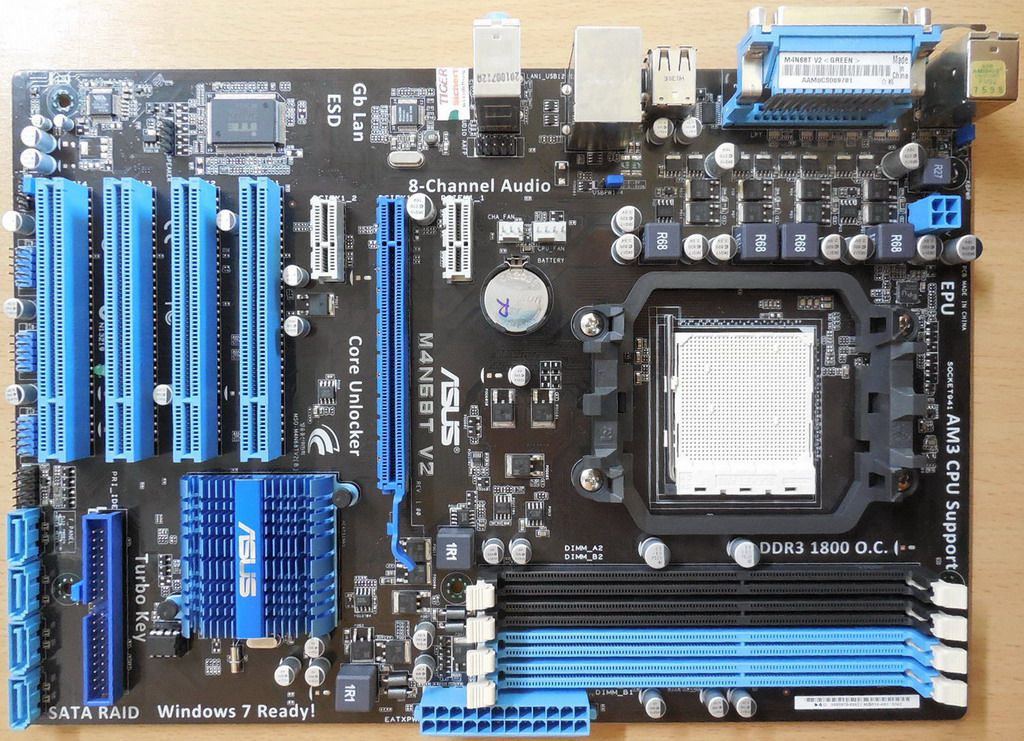

Asus M4N68T V2 Rev1.00 Mainboard +Blende AMD Sockel AM3 DDR3 PCIe SATA IDE* m846

Asus M4N68T V2 Rev 1.00 Mainboard + Blende AMD Sockel AM3 DDR3 PCIe SATA IDE

Technische Daten

CPU

AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors

AMD Cool 'n' Quiet™ Technology

AMD 64 architecture enables simultaneous 32-bit and 64-bit computing

Chipset

NVIDIA nForce 630a

Memory

4 x DIMM, Max. 16GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* Refer to the Asus Website or the user manual for the Memory QVL (Qualified Vendors Lists).

System Bus

Up to 2.0 GT/s

Expansion Slots

1 x PCIe x16

2 x PCIe x1

4 x PCI

Storage

1 x UltraDMA 133/100/66 for up to 2 PATA devices, navy blue

4 x SATA 3Gb/s port(s), blue

Support Raid 0, 1, 5, 10, JBOD

LAN

1 x 10/100/1000 Gigabit LAN Controller Realtek® 8211CL

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC *1

- Supports : Multi-streaming, Anti-pop Function

*1: Choose the chassis with HD audio module in front panel to support 8-Channel audio output.

USB Ports

10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)

ROG Exclusive Features

Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)

Special Features

Turbo Key

ASUS Quiet Thermal Solution: ASUS Q-Fan

ASUS EZ DIY: ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS MyLogo 2

100% All High-quality Conductive Polymer Capacitors

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x LAN (RJ45) port(s)

4 x USB 2.0

1 x COM port

1 x Parallel port

3 x Audio jacks

Internal I/O Ports

3 x USB 2.0 connectors supports additional 6 USB 2.0 ports

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x S/PDIF out header

1 x 24-pin EATX Power connector

1 x 4-pin ATX 12V Power connector

1 x Front panel audio connector (AAFP)

1 x Internal speaker connector

1 x System panel

BIOS

8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0

Form Factor

ATX Form Factor; 12 inch x 8.2 inch ( 30.5 cm x 20.8 cm )

Lieferumfang

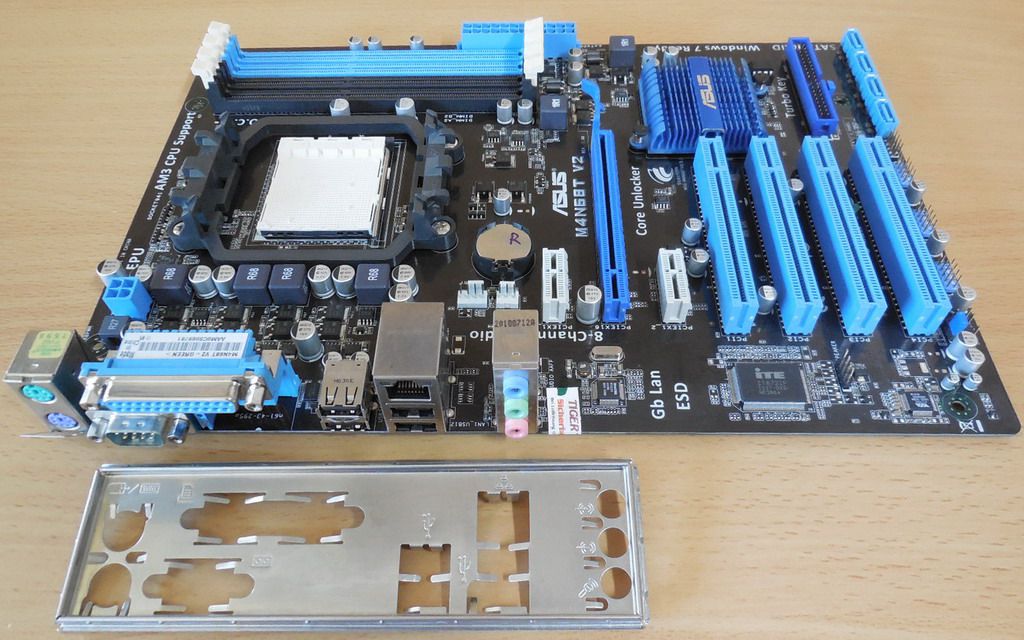

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
