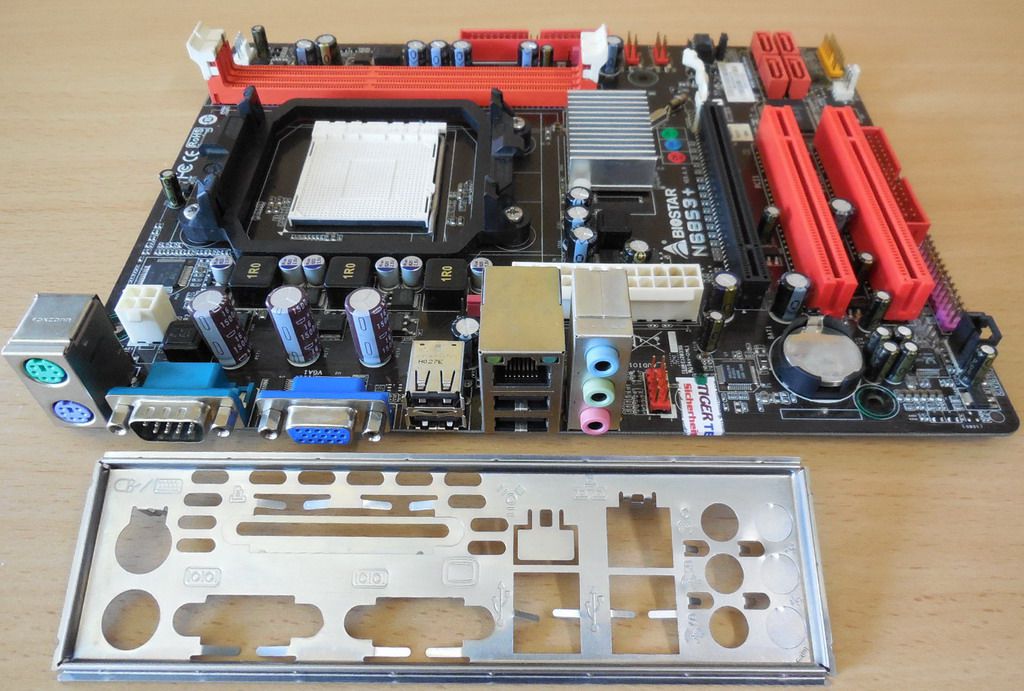

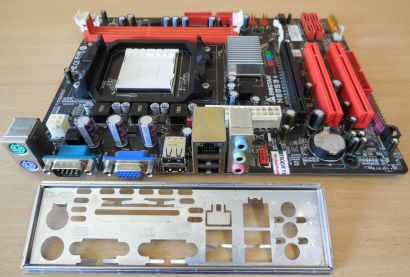

Biostar N68S3+ Ver6.0 Mainboard +Blende Sockel AM3 PCIe VGA LAN Audio USB* m1004

Biostar N68S3+ Ver 6.0 Mainboard + Blende Sockel AM3 PCIe VGA LAN Audio USB

Technische Daten

Chipset

NVIDIA MCP68S

CPU SUPPORT

AMD Phenom™ II X4 Processor; AMD Phenom™ II X3 Processor; AMD Phenom™ II X2 Processor; AMD Athlon™ II X4 Processor; AMD Athlon™ II X3 Processor; AMD Athlon™ II X2 Processor; AMD Sempron™ Processor

Maximum CPU TDP (Thermal Design Power)       95Watt

HT

Support HT 2G

MEMORY

Support Dual Channel DDR3 800/1066/1333(supported by CPU model) MHz

2 x DDR3 DIMM Memory Slot

Max. Supports up to 8GB Memory

INTEGRATED VIDEO

NVIDIA GeForce 7025 GPU, On Board Graphic Max. Memory Share Up to 512MB(Under OS By Turbo Cache)

STORAGE

4 x SATA II Connector

1 x IDE Connector

Support SATA RAID 0,1,5,10

LAN

Realtek RTL8201CL 10/100 Fast Ethernet PHY

AUDIO CODEC

Realtek ALC662 6-Channel HD Audio

USB

4 x USB 2.0 Port; 2 x USB 2.0 Header

EXPANSION SLOT

1 x PCI-E x16 Slot

2 x PCI Slots

REAR I/O

1 x PS/2 Mouse

1 x PS/2 Keyboard

4 x USB 2.0 Port

1 x COM Port

1 x VGA Port

1 x LAN Port

3 x Audio Jacks

INTERNAL I/O

1 x 24 pin ATX power connector

1 x 4 pin 12V power connector

2 x USB 2.0 Header

4 x SATA II Connector (3Gb/s)

1 x IDE Connector

1 x Floppy Connector

1 x Front Audio Header

1 x Front Panel Header

1 x S/PDIF-Out Header

1 x 4-pin CPU Fan Connector

1 x 3-pin System Fan Connector

1 x Printer Port Header

1 x CMOS Clear Jumper

DIMENSION

Micro ATX Form Factor Dimension; 24.4cm X 19cm ( W x L )

OS SUPPORT

Supports Windows XP / Vista / 7

FEATURES

Windows 7 Compatible; Supports AM3; Supports Solid capacitor; BIOS-Flasher

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
