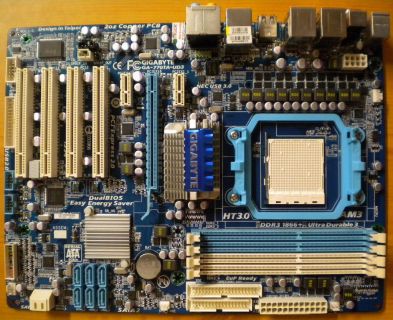

Gigabyte GA-770TA-UD3 Rev 1.0 Mainboard
Sockel AM3 AMD DDR3 1866+ USB3.0
Technische Daten
Prozessor
Support for Socket AM3 processors: AMD Phenom™ II processor / AMD Athlon™ II processor
Hyper Transport Bus
5200 MT/s
Chipsatz
North Bridge: AMD 770
South Bridge: AMD SB710
Arbeitsspeicher
4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for DDR3 1866(OC)(Note 2)/1333/1066 MHz memory modules
Audio
Realtek ALC888 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF In/Out; CD In
LAN
1 x Realtek 8111D chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
2 x PCI Express x1 slots
4 x PCI slots
Storage Interface
Chipset:
1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
6 x SATA 3Gb/s connectors (SATA2_0, SATA2_1, SATA2_2, SATA2_3, SATA2_4, SATA2_5) supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 10, and JBOD
Marvell 9128 chip:
2 x SATA 6Gb/s connectors (GSATA3_6, GSATA3_7) supporting up to 2 SATA 6Gb/s devices
Support for SATA RAID 0 and RAID 1
* SATA3 RAID 0 4x and SATA3 2x performance are maximum theoretical values. Actual performance may vary by system configuration.
* SATA3 SSDs are not recommended for use in RAID 0 mode on Marvell SE9128 ports.
JMicron JMB362 chip:
2 x eSATA 3Gb/s connectors on the back panel supporting up to 2 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8720 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive
USB
Chipset:
Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)
NEC chip:
Up to 2 USB 3.0/2.0 ports on the back panel
* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
IEEE 1394
T.I. TSB43AB23 chip:
Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
6 x SATA 3Gb/s connectors
2 x SATA 6Gb/s connectors
1 x CPU fan header
2 x system fan header
1 x North Bridge fan header
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
1 x S/PDIF Out header
1 x IEEE 1394a header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x clearing CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x optical S/PDIF Out connector
1 x coaxial S/PDIF out connector
6 x USB 2.0/1.1 ports
2 x USB 3.0/2.0 ports
2 x IEEE 1394a port
2 x eSATA 3Gb/s ports
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU/System fan speed control (Note 3)
BIOS
2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS, Q-Flash, Xpress BIOS Rescue, Download Center, Xpress Install, Xpress Recovery2, EasyTune (Note 4), Easy Energy Saver,Time Repair, Q-Share
Betriebssystem
Support for Microsoft Windows 7/ Vista/ XP
Form Factor
ATX Form Factor; 30.5cm x 23.0 cm
Hinweis
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Use of a CPU that supports ECC is required if you wish to install ECC memory.
(Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 4) Available functions in EasyTune may differ by motherboard model.
Anderes
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
