Produktbeschreibung

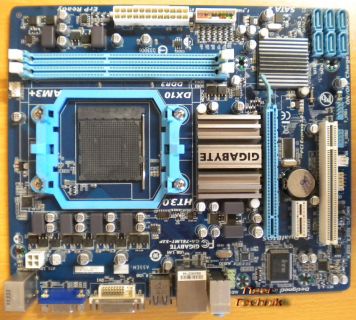

Gigabyte GA-78LMT-S2P Rev 4.0 Mainboard
Prozessor
AM3+ Socket:
Support for AMD AM3+ processor
Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
(Please refer "CPU Support List" for more information.)
Hyper Transport Bus
HyperTransport™ 3.0
Support up to 5200MT/s
Chipsatz
North Bridge: AMD 760G
South Bridge: AMD SB710
Arbeitsspeicher
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
Dual channel memory architecture
Support for 1333+ (O.C.)/1066/800 MHz memory modules
(Please refer "Memory Support List" for more information.)
Onboard Grafik
North Bridge:
1 x D-Sub port
1 x DVI-D port, supporting a maximum resolution of 1920x1200 (Note 2)
Audio
Realtek codec
High Definition Audio
2/4/5.1/7.1-channel (Note 3)
LAN
1 x Atheros GbE LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(All PCI Express slots conform to PCI Express 2.0 standard.)
1 x PCI slot
Storage Interface
South Bridge:
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for SATA RAID 0, RAID 1, RAID 10, and JBOD
USB
South Bridge:
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
6 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x clearing CMOS jumper
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O
ITE IT8720 chip
H/W Überwachung
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU overheating warning
CPU/System fan fail warning
CPU/System fan speed control (Note 4)
BIOS
2 x 16 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS, Q-Flash, Xpress BIOS Rescue, Download Center, Xpress Install, Xpress Recovery2, EasyTune (Note 5), Smart Recovery, Auto Green, On/Off Charge, Cloud OC, 3TB+ Unlock, Q-Share
Form Factor
Micro ATX Form Factor; 24.4cm x 20.6cm
Hinweis
(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of physical memory installed.
(Note 2) The DVI-D port does not support D-Sub connector by adapter.
(Note 3) To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
(Note 4) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
(Note 5) Available functions in EasyTune may differ by motherboard model.
Anderes
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Lieferumfang
Das Mainboard mit Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
