Gigabyte GA-880GM-UD2H Rev1.3 Mainboard+Blende AMD 880 Sockel AM3 PCIe DDR3*m781

Gigabyte GA-880GM-UD2H Rev 1.3 Mainboard + Blende AMD 880G Sockel Am3 PCIe DDR3

Technische Daten

Prozessor

Support for AM3 processors: AMD Phenom™ II processor/ AMD Athlon™ II processor

Hyper Transport Bus

5200 MT/s

Chipsatz

North Bridge: AMD 880G

South Bridge: AMD SB710

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR3 1800 (OC)/1666/1333/1066 MHz memory modules (Note 2)

Onboard Grafik Integrated in the North Bridge

1 x D-Sub port

1 x DVI-D port (Note 3) (Note 4)

1 x HDMI port (Note 4)

Audio

Realtek ALC892 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for Dolby Home Theater; Support for S/PDIF In/Out; Support for CD In

LAN

Realtek 8111D chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (PCIEX16) (All PCI Express slots conform to PCI Express 2.0 standard.)

1 x PCI Express x1 slot

2 x PCI slots

Storage Interface

South Bridge:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices

1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device

Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

iTE IT8720 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

Multi-Graphics Technology

Support for ATI Hybrid CrossFireX™ technology

USB Integrated in the South Bridge

Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)

IEEE 1394 T.I. TSB43AB23 chip

Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

5 x SATA 3Gb/s connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In/Out header

3 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x serial port header

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard port or PS/2 mouse port

1 x D-Sub port

1 x DVI-D port (Note 3)(Note 4)

1 x HDMI port (Note 4)

1 x optical S/PDIF Out connector

1 x eSATA 3Gb/s port

1 x IEEE 1394a port

6 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O

ITE IT8720 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed control (Note 5)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS; Support for Q-Flash; Support for Xpress BIOS Rescue; Support for Download Center; Support for Xpress Install; Support for Xpress Recovery2; Support for EasyTune (Note 6); Support for Easy Energy Saver; Support for Time Repare; Support for Q-Share; Support for Auto Green

Betriebssystem

Support for Microsoft Windows 7/Vista/ XP

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) To reach DDR3 1800MHz or above, you must install two memory modules and install them in the DDR3_3 and DDR3_4 memory sockets.

(Note 3) The DVI-D port does not support D-Sub connection by adapter.

(Note 4) Simultaneous output for DVI-D and HDMI is not supported.

(Note5) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

(Note 6) Available functions in EasyTune may differ by motherboard model

Lieferumfang

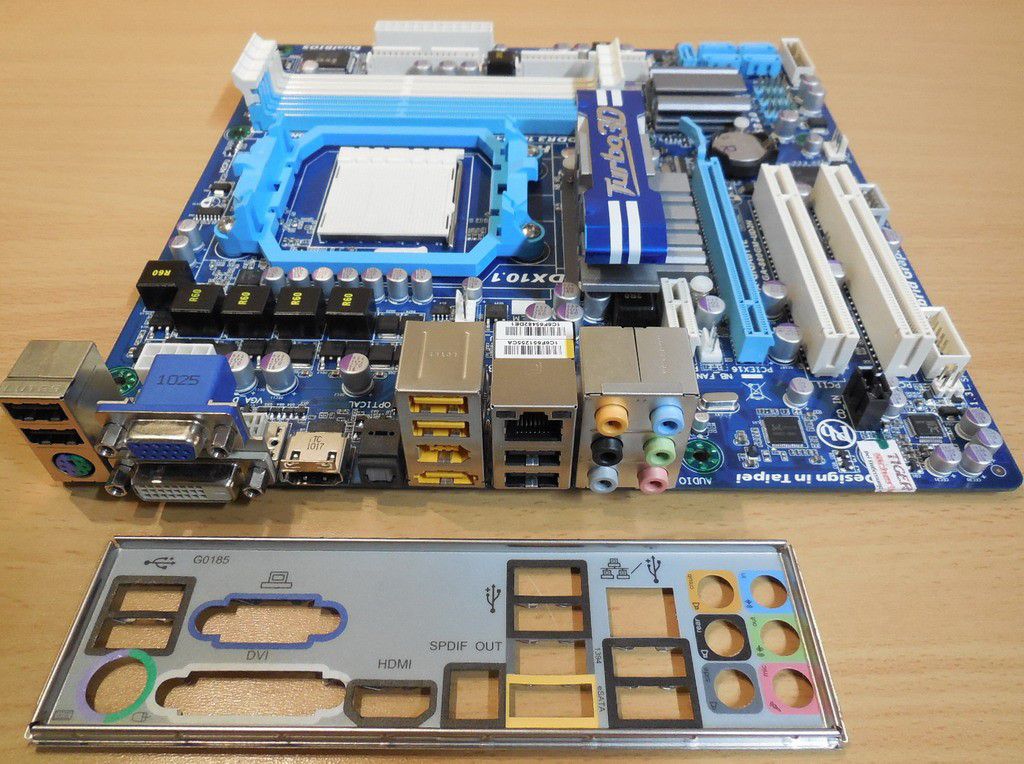

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

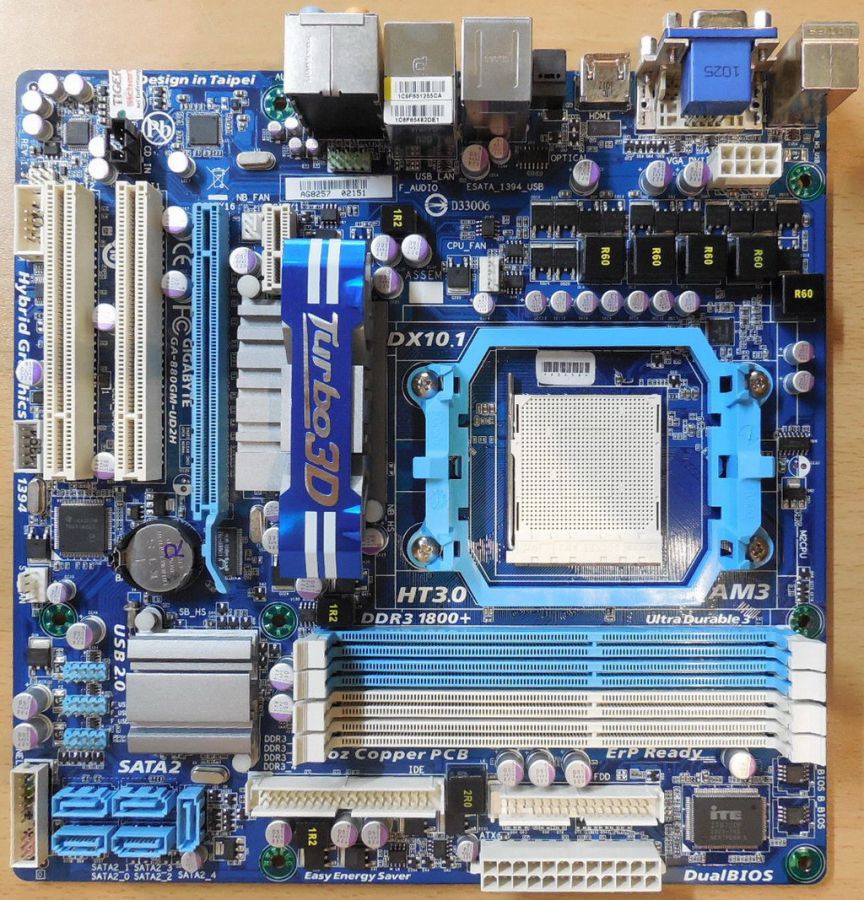

Abbildung ähnlich
