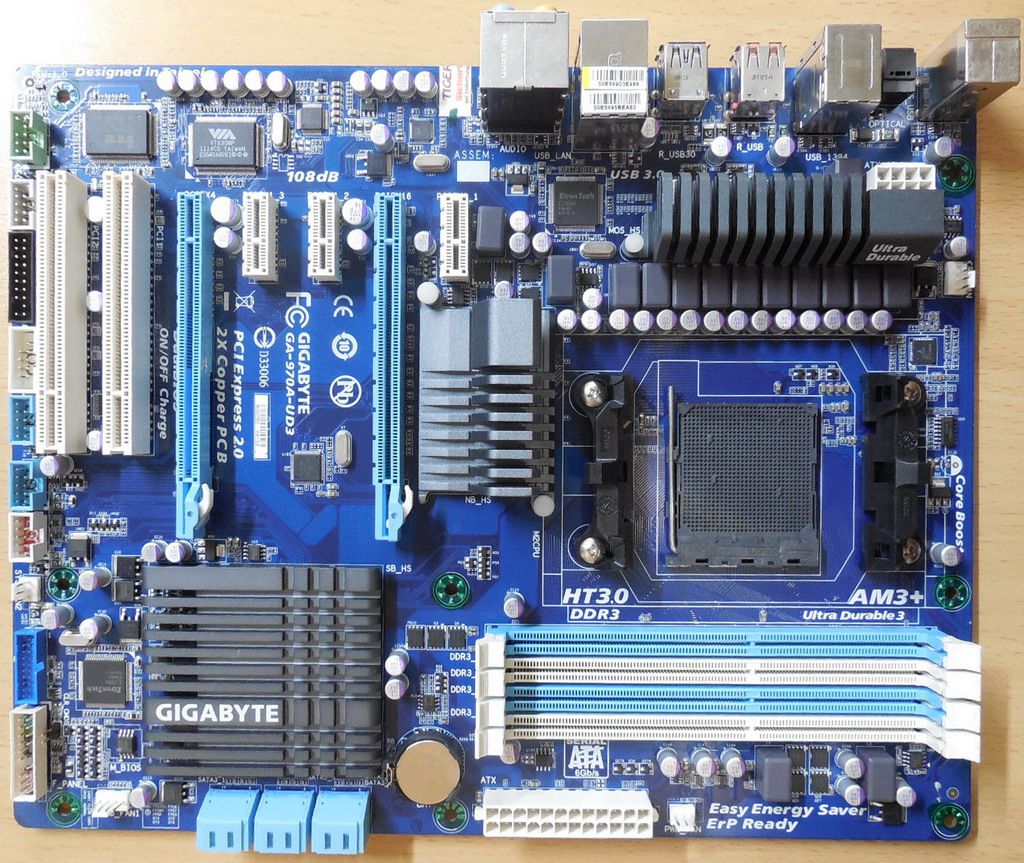

Gigabyte GA-970A-UD3 Rev1.0 Mainboard +Blende AMD 970A Sockel AM3 PCIe DDR3*m787

Gigabyte GA-970A-UD3 Rev1.0 Mainboard +Blende AMD 970A Sockel AM3 PCIe DDR3

Technische Daten

Prozessor

Support for AMD AM3+ FX processors

Support for AMD AM3 Phenom™ II processors / AMD Athlon™ II processors

(Please refer "CPU Support List" for more information.)

Hyper Transport Bus

HyperTransport™ 3.0

Support up to 5200MT/s

Chipsatz

North Bridge: AMD 970

South Bridge: AMD SB950

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)

(Please refer "Memory Support List" for more information.)

Audio

Realtek codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

1 x Realtek RTL8111E chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 2.0 slot, running at x16 (PCIEX16)

1 x PCI Express x16 2.0 slot, running at x4 (PCIEX4)

3 x PCI Express x1 2.0 slots

2 x PCI slots

Storage Interface

6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices

Support for RAID 0, RAID 1, RAID5, RAID 10 and JBOD

Multi-Graphics Technology

Support for AMD CrossFireX™ technology (PCIEX16 and PCIEX4)

USB

by South Bridge:

Up to 14 USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

by 2 x Etron EJ168 chips:

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

IEEE 1394 by VIA VT6308

Up to 2 IEEE 1394a ports (1 port on the back panel, 1 port available through the internal IEEE 1394a header)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x power fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

3 x USB 2.0/1.1 headers

1 x USB 3.0/2.0 header

1 x IEEE 1394a header

1 x Trusted Platform Module (TPM) header

1 x serial port header

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x optical S/PDIF Out connector

1 x IEEE 1394 port

8 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O

ITE IT8720 chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed control (Note 3)

BIOS

2 x 32 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS; Support for Q-Flash; Support for Xpress BIOS Rescue; Support for Download Center; Support for Xpress Install; Support for Xpress Recovery2; Support for EasyTune (Note 4); Support for Easy Energy Saver; Support for Smart Recovery; Support for Auto Green; Support for ON/OFF Charge; Support for Cloud OC; Support for 3TB+ Unlock; Support for Q-Share

Betriebssystem

Support for Microsoft Windows 8 / 7 / Vista / XP

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Hinweis

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) To support a DDR3 1866 MHz (and above) memory, you must install an AMD AM3+ CPU first.

(Note 3) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

(Note 4) Available functions in EasyTune may differ by motherboard model.

Lieferumfang

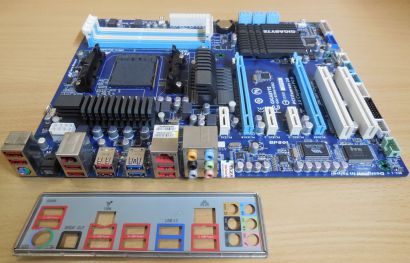

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
