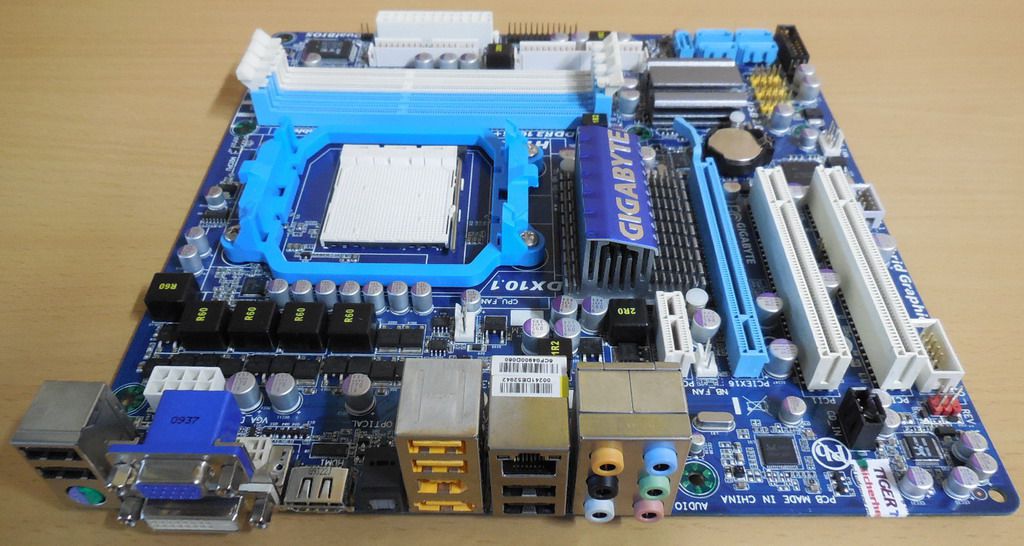

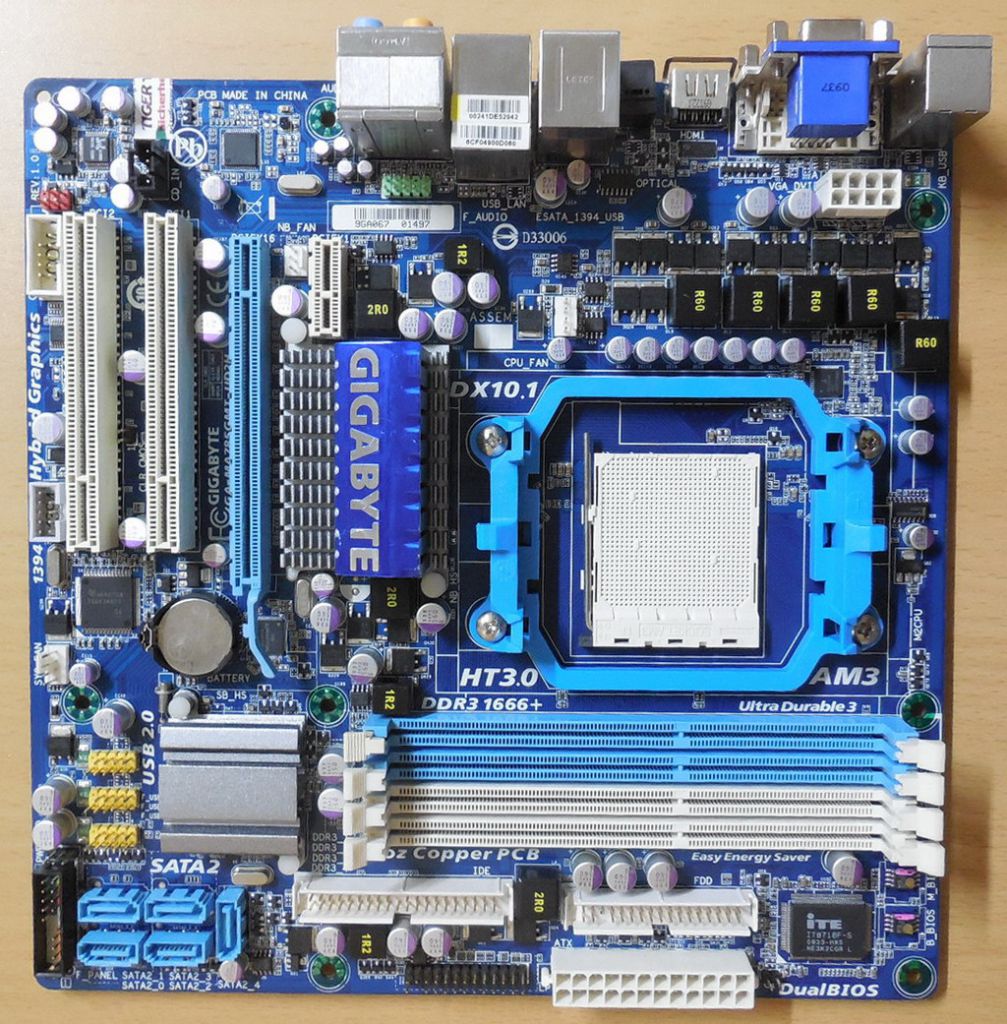

Gigabyte GA-MA785GMT-UD2H Rev.1.0 Mainboard AMD 785G Sockel AM3 DVI HDMI* m1012

Gigabyte GA-MA785GMT-UD2H Rev. 1.0 Mainboard AMD 785G Sockel AM3 DDR3 VGA DVI HDMI

Technische Daten

Prozessor

Support for AMD Phenom™ II / AMD Athlon™ II AM3 processors

Hyper Transport Bus

5200 MT/s

Chipsatz

AMD 785G Northbridge + AMD SB710 Southbridge

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Support for DDR3 1800 (OC)/1666/1333/1066 MHz memory modules

Dual channel memory architecture

Onboard Grafik

1 x D-Sub port

1 x DVI-D port (Note 2) (Note 3)

1 x HDMI port (Note 3)

Audio

Realtek ALC889A High Definition Audio codec

2/4/5.1/7.1-channel

Support for Dolby Home Theater; S/PDIF In/Out; CD In

LAN

Realtek 8111C Gigabit Ethernet chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 slot, running at x16 (PCIEX16 2.0 standard)

1 x PCI Express x1 slot

2 x PCI slots

Storage Interface

by Southbridge

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices

1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device

Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

by iTE IT8718 chip

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)

T.I. TSB43AB23 IEEE 1394 chip

Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

5 x SATA 3Gb/s connectors

1 x 4-pin CPU fan header

1 x 4-pin system fan header

1 x 3-pin North Bridge fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In/Out header

3 x USB 2.0/1.1 headers

1 x IEEE 1394a header

1 x LPT parallel port header

1 x serial port header

1 x chassis intrusion header

1 x power LED header

1 x clearing CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard port or PS/2 mouse port

1 x D-Sub port

1 x DVI-D port (Note 3)(Note 4)

1 x HDMI port (Note 4)

1 x optical S/PDIF Out connector

1 x eSATA 3Gb/s port

1 x IEEE 1394a port

6 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O

ITE IT8718 chip

H/W Überwachung

System voltage detection; CPU/System temperature detection; CPU/System fan speed detection; CPU overheating warning; CPU/System/Power fan fail warning; CPU/System fan speed control (Note 4)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Xpress BIOS Rescue; Download Center; Xpress Install; Xpress Recovery2; EasyTune (Note 5); Easy Energy Saver; Time Repare; Q-Share

Betriebssystem

Support for Microsoft Windows Vista / XP

Form Factor

Micro ATX Form Factor; 24.3cm x 24.3cm

Hinweise

(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) The DVI-D port does not support D-Sub connection by adapter.

(Note 3) Simultaneous output for DVI-D and HDMI is not supported.

(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

(Note 5) Available functions in EasyTune may differ by motherboard model.

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
