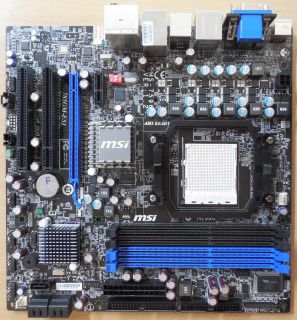

MSI 785GM-E51 MS-7596 Ver1.2 Mainboard+Blende AMD Sockel AM3 DDR3 VGA HDMI* m843

MSI 785GM-E51 MS-7596 Ver 1.2 Mainboard + Blende AMD Sockel AM3 DDR3 VGA HDMI

Technische Daten

CPU

64bit AMD® Phenom II CPU

Please refer to CPU Support for compatible CPU; the above description is for reference only

Hyper Transport Bus

HyperTransport 3.0 supporting speed up to 2.6GHz

Chipset

AMD® 785G and SB710 Chipset

Main Memory

Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 SDRAM, 16GB Max

Slots

1 x PCI Express x16 slot (PCI Express Bus SPEC V2.0 compliant)

1 x PCI Express x1 slot

2 x PCI slots, support 3.3V/ 5V PCI bus Interface

On-Board IDE

One IDE port by AMD® SB710

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

- Can connect up to two IDE devices

On-Board SATA

5 x SATA II ports by AMD® SB710

1 x eSATA II port by AMD® SB710

- SATA II 1~5 support RAID 0, 1, 0+1 or JBOD mode by AMD® SB710

- Supports storage and data transfers at up to 3Gb/s

Audio

Chipset integrated by Realtek® ALC889

- True Blu-ray Audio Support

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

LAN

Realtek PCI-E GbLAN controller 8111DL

- Integrated Fast Ethernet MAC and PHY in single chip

- Supports 10Mb/s, 100Mb/s and 1000Mb/s

- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

- ATX 24-pin power connector

- ATX 4-pin 12V CPU power connector

- CPU x1 / System x1 FAN connectors

- CD-in connector

- Front panel audio connector

- Front panel connector

- Chassis intrusion switch connector

- 3 x USB 2.0 connector support additional 6 ports

- 1 x Floppy disk drive connector

- 5 x Serial ATA II connectors

- 1 x ATA133 connector

- 1 x SPDIF-out connector

- 1 x Serial port connector

- 1 x Parallel port connector

- Clear CMOS jumper

- OC Switch

- 1 x TPM module header

Back Panel I/O Ports

- 1 x PS/2 keyboard or mouse

- 1 x 6 in 1 audio jack

- 6 x USB 2.0 ports

- 1 x RJ45 LAN jack

- 1 x eSATA port

- 1 x DVI-D port

- 1 x Sub-D port

- 1 x HDMI port

Dimension

24.4cm(L) x 24.4cm(W) Micro-ATX Form Factor

Mounting

8 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
