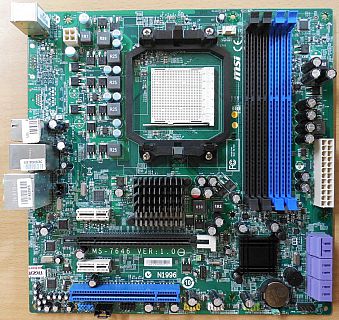

MSI MS-7646 Ver 1.0 Mainboard +Blende Medion AMD RX780 Sockel AM2 AM3 DDR3* m971

MSI MS-7646 Ver 1.0 Mainboard + Blende Medion AMD RX780 Sockel AM2 AM3 DDR3

Technische Daten

CPU

Supports 95W AMD® Phenom / Athlon II / Athlon 64 / Sempron processors

Supports 4-pin CPU fan pinheader with Fan Speed Control

FSB

Hyper Transport supports up to 3.0GHz

Chipset

AMD® RX780 Northbridge + AMD® SB710 Southbridge

Memory

Dual Channel DDR3 memory technology

Supports DDR3 533 / 667 / 800 / 1066 / 1333 SDRAM (240 pins/ 1.5V); non-ECC; un-buffered memory

4 x DDR3 DIMM slots (max. 8GB)

Audio

Chip integrated by Realtek® ALC888S

Flexible 8-channel audio with jack sensing

Compliant with Azalia 1.0 Spec

LAN

Gigabit Fast Ethernet by Realtek® RTL8111DL

IEEE 1394

Chip integrated by JMicron® JMB381 with transfer rates up to 400Mb/s

Slots

1 x PCI Express x16 slot

2 x PCI Express x1 slots

1 x PCI slot supports 3.3 V/ 5 V PCI bus interface

Storage

6 x SATA II ports by AMD® SB710 for up to 6 SATA devices. Supports storage and data transfers up to 3Gb/s

RAID

SATA1~6 support RAID 0 / 1 / 0+1 or JBOD mode by AMD® SB710

Internal Connectors

6 x SATA2 3.0 Gb/s connectors

1 x SPI Flash ROM connector

1 x JSMI1 connector

1 x IEEE 1394 header

1 x S/PDIF-Out connector (for HDMI Audio)

1 x CD_In connector

1 x Front Panel header

1 x Front Audio Panel header

3 x USB 2.0 headers (support 6 USB 2.0 ports)

1 x CMOS Jumper

1 x 4-Pin CPU FAN connector

24-pin ATX power connector

4-pin 12V power connector

Rear I/O Panel

1 x PS/2 Keyboard Port

1 x PS/2 Mouse Port

4 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x IEEE 1394 Port

1 x Optical SPDIF Out Port

5 x Audio Jacks (Rear Speaker / Central / Bass / Line in / Front Speaker / Line out)

Form Factor / Mounting

micro-ATX (24.4 cm x 24.4 cm) / 8 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
