Produktbeschreibung

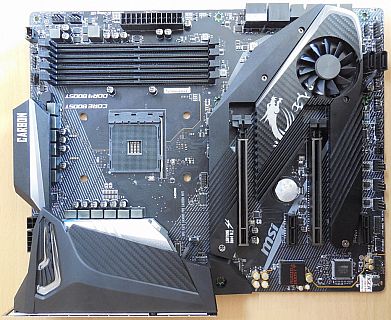

MSI MPG X570 GAMING PRO CARBON WIFI Mainboard + Blende Sockel AM4 AMD X570 DDR4
Technische Daten
CPU
Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Socket AM4
Please refer to the CPU Support List of the MSI Website for more information on compatible processors
CHIPSET
AMD® X570 Chipset
MEMORY
4 x DDR4 memory slots with support up to 128GB max.
3rd Gen AMD Ryzen™ Processors support DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200Mhz by JEDEC and 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 Mhz by A-XMP OC MODE
2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 Mhz by JEDEC and 2667/2800/2933/3000/3066/3200/3466 Mhz by A-XMP OC MODE
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Please refer to the MSI Website for more information on compatible memory
EXPANSION SLOTS
1 x PCIe 4.0/3.0 x16 slot (PCI_E1)
- 3rd Gen AMD Ryzen™ support PCIe 4.0 x16 mode
- 2nd Gen AMD Ryzen™ support PCIe 3.0x16 mode
- Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support PCIe 3.0 x8 mode
1 x PCIe 4.0/3.0 x4 slot (PCI_E3)
2 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@24Hz
MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology
STORAGE
by AMD® X570 Chipset
4 x SATA 6Gb/s ports(SATA1-SATA4)
2 x M.2 slots (Key M)*
- M2_1 slot (from AMD® Processor) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™ Desktop Processors) or PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) 2242/2260/2280 storage devices
- M2_2 slot (from AMD® X570 Chipset) supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™) or 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
by ASMedia ASM1061
2 x SATA 6Gb/s ports (SATA5, SATA6)
*The speeds may vary for different devices
RAID
Supports RAID 0, RAID 1 and RAID 10
USB
by AMD® X570 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
4 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
by AMD® Processor
2 x USB 3.2 Gen2 (3rd Gen AMD Ryzen™) or USB 3.2 Gen1 (2nd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) Type-A and Type-C port on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports Optical S/PDIF output
LAN
1 x Intel® I211AT Gigabit LAN controller
WIFI & BLUETOOTH
Intel® Wi-Fi 6 AX200
The Wireless module is pre-installed in the M2_WIFI1 (Key-E) slot
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
Supports Bluetooth® 5.1
INTERNAL CONNECTORS
1 x 24-pin ATX main Power connector
1 x 8-pin ATX 12V Power connector
1 x 4-pin ATX 12V Power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
1 x 4-pin CPU FAN connector
1 x 4-pin water-pump connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
1 x JFP1 System panel connector
1 x JFP2 System panel connector
1 x TPM module connector
1 x Clear CMOS jumper
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
2 x 3-pin RAINBOW LED connectors
1 x 3-pin CORSAIR connector
1 x JSMB1 header
1 x JSPI1 header
1 x JF1 connector
1 x JT1 connector
1 x 2-pin LED Demo Connect
4 x EZ Debug LEDs
BACK PANEL PORTS
1 x PS/2 Keyboard/Mouse Combo port
2 x USB 3.2 Gen1 Type-A
1 x Wireless/Bluetooth antenna connectors (Antennen nicht im Lieferumfang!)
1 x LAN
1 x Flash BIOS Button
4 x USB 2.0 (1 x Flash Bios)
1 x HDMI™
1 x USB 3.2 Gen2 Type-C
3 x USB 3.2 Gen2 Type-A
1 x Optical S/PDIF out
5 x Klinke 3.5 Audio Connectors
DIMENSIONS
ATX Form Factor; 12 in. x 9.6 in. (ca. 30.4 cm x 24.3 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
