Produktbeschreibung

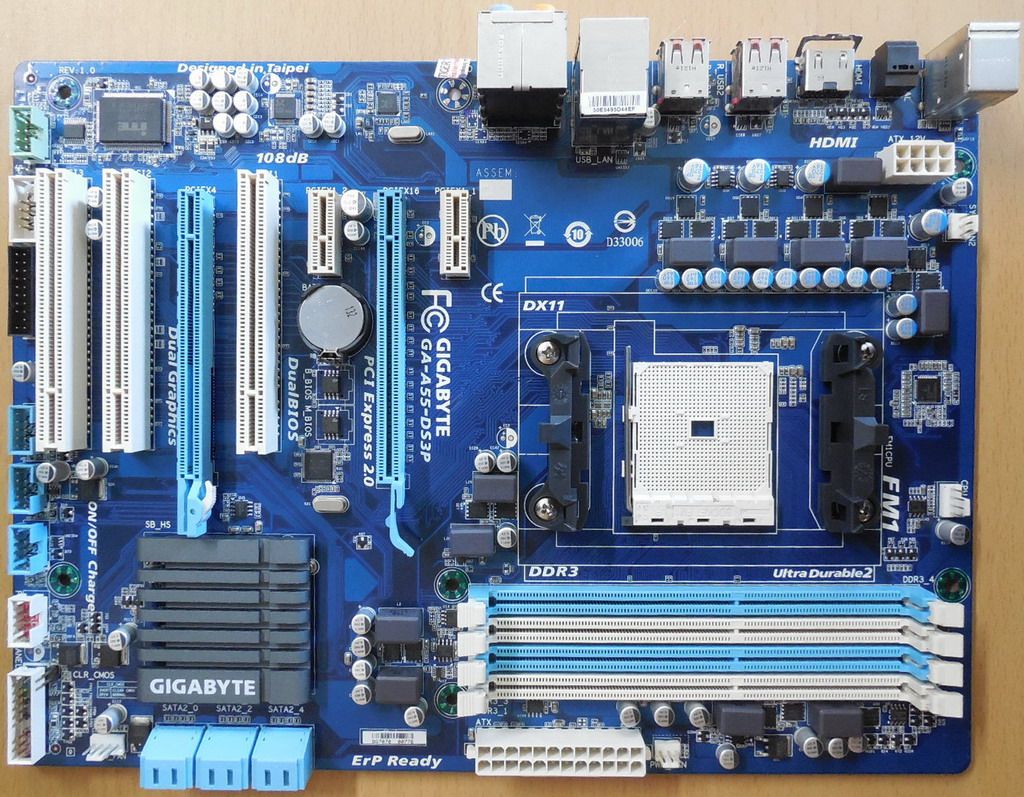

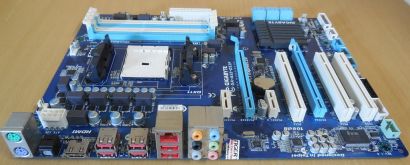

Gigabyte GA-A55-DS3P Rev 1.0 Mainboard AMD Sockel FM1 DDR3 GbE LAN Audio
Technische Daten
APU
AMD A series & E2 series processors in the FM1 Socket
Chipsatz
AMD A75
Arbeitsspeicher
4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules (Hinweis 2)
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
** Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
*** The 1866 MHz memory speed is supported only when one or two DDR3 1866 MHz DIMMs are installed. It is not supported when four DIMMs are installed. (Dual channel memory mode must be enabled when installing two DIMMs.)
Onboard Grafik (Kann nur in Einheit mit einer AMD APU genutzt werden!)
1 x HDMI port, supporting a maximum resolution of 1920x1200
* HDMI port does not support Hot plug. If you want to change to another graphics port when the computer is on, be sure to turn off the computer first.
** To use the onboard HDMI, must install an AMD CPU with integrated graphics.
Audio
Realtek® ALC889 High Definition Audio codec
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Realtek® RTL8111E GbE LAN chip (10/100/1000 Mbit)
Erweiterungssteckplätze
1 x PCI Express 2.0 x16 slot, running at x16 (PCIEX16)
1 x PCI Express 2.0 x16 slot, running at x4 (PCIEX4)
2 x PCI Express 2.0 x1 slots
3 x PCI slots
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Storage Interface
6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
Support for RAID 0, RAID 1, RAID 10, and JBOD
Multi-Graphics Technology
Support for AMD Dual Graphics technology (Only A series APUs)
Support for AMD CrossFireX technology
USB
14 x USB 2.0/1.1 ports (6 ports on the back panel, 8 ports available through the internal USB headers)
Interne I/O Anschlüsse
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 3Gb/s connectors
1 x 4-Pin APU fan header
1 x 3-Pin System fan header
1 x 4-Pin System fan header
1 x 3-Pin Power fan header
1 x Front Panel header
1 x Front Audio Panel header
1 x S/PDIF Out header
4 x USB 2.0/1.1 headers
1 x serial port header
1 x Clearing CMOS jumper
1 x Trusted Platform Module (TPM) header
Rückseite I/O Panel
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x HDMI port
6 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
6 x Audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O
iTE® IT8720 I/O Controller Chip
H/W Überwachung
System voltage detection; APU/System temperature detection; APU/System fan speed detection; APU overheating warning; APU/System fan fail warning; APU/System fan speed control (Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install.)
BIOS
2 x 32 Mbit flash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Einzigartige Funktionen
Support for @BIOS; Q-Flash; Xpress Install; EasyTune (Available functions in EasyTune may differ by motherboard model.); Smart Recovery; ON/OFF Charge; Xpress BIOS Rescue; Download Center; Xpress Recovery2; Auto Green; 3TB+ Unlock; Q-Share
Betriebssystem
Support for Windows 8/7/Vista/XP
Form Factor
ATX Form Factor; 30.5cm x 22.5cm
Lieferumfang
Nur das Mainboard * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
