Biostar A58MD Ver1.0 Mainboard +Blende AMD A55 Sockel FM2 FM2+ DDR3 VGA DVI*m961

Biostar A58MD Ver 1.0 Mainboard + Blende AMD A55 Sockel FM2 FM2+ DDR3 VGA DVI

Technische Daten

Prozessor / CPU

AMD A4 / A6 / A8 / A10 Processor; AMD E2 Processor; AMD Athlon™ II X4 Processor

Maximum CPU TDP (Thermal Design Power): 100Watt

Chipsatz

AMD A55 Chipset

Arbeitsspeicher

Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600/1866/2133/2400*/2600* (*OC) RAM,

Supports up to 32GB Max.

Supports Dual-Channel

Erweiterungsteckplätze

1 x PCIe 2.0 x1

1 x PCIe 3.0 x16 (supported by FM2+ CPU)

Speichersystem

4 x SATA II 3Gb/s ports by AMD® A55

Supports SATA RAID 0 / 1 / 10 modes

LAN

Realtek® 8111G Gigabit LAN Controller

Supports 10/100/1000Mb/s Data Transfer Rate

Audio

Realtek® ALC662 6-Kanal High Definition Audio CODEC

USB

8 x USB 2.0 ports (4 an der Gehäuserückseite, 4 intern via über Header)

Anschlüsse (Rückseite)

1 x PS/2 Tastatur

1 x PS/2 Maus

4 x USB 2.0

1 x D-Sub

1 x DVI (Dual-link)

3 x Audio-Anschlüsse

1 x LAN (RJ45) Schnittstelle

This platform supports dual-display function (DVI+VGA)

The graphic output can only work with CPUs with GPUs core inside

Interne Anschlüsse

1 x 24-Pin ATX Anschluss

1 x 4-pin ATX 12V Power connector

1 x Prozessorlüfteranschluss (4-pin)

1 x Systemlüfteranschluss (3-pin)

4 x SATA 3Gb/s-Schnittstellen

1 x Internal Speaker connector

1 x COM port connector

2 x USB 2.0-Anschlüsse unterstützen zusätzlich 4 USB 2.0-Schnittstellen

1 x Front Audio Panel connector

1 x Front Panel connector

1 x Clear CMOS Jumper

H/W MONITORING

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

Dimension & Mounting

micro-ATX Formfaktor ca. 21.8 cm x 17.4 cm; 6 mounting holes

OS SUPPORT

Supports Windows XP / 7 / 8 / 10 (x64)

FEATURES

Windows 8 Ready

Supports Solid capacitor; BIOS-Flasher; Charger Booster; BIOS Online Update

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

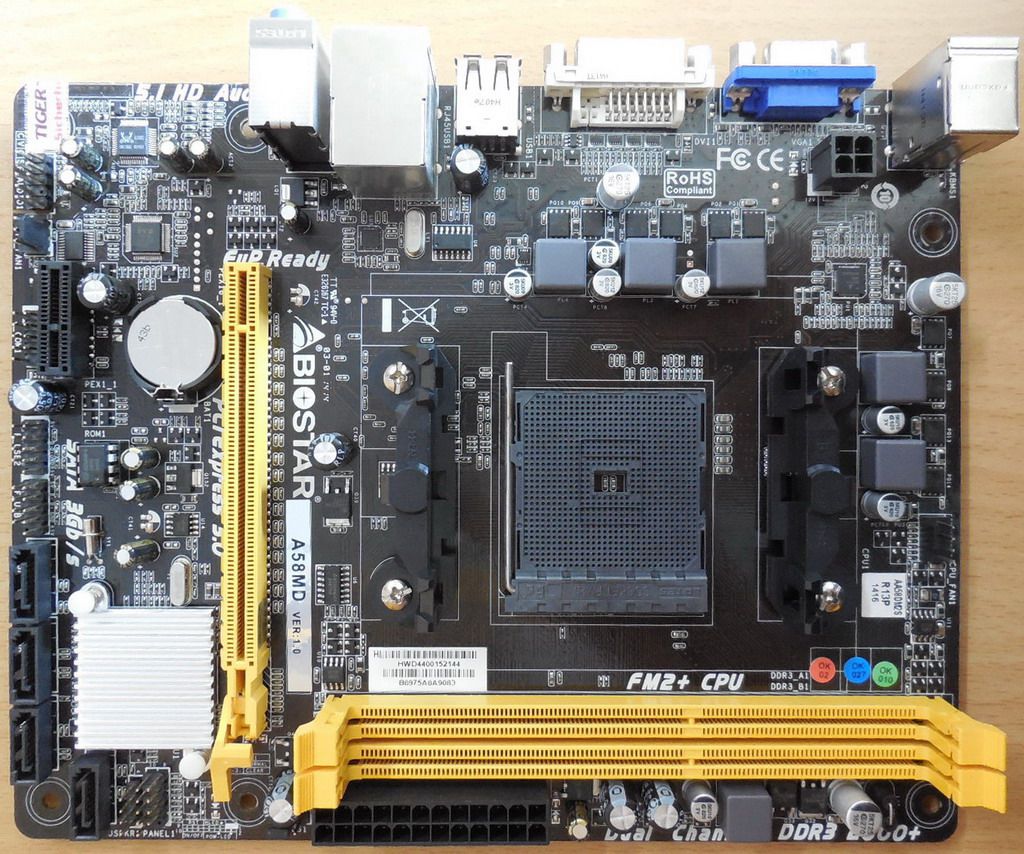

Abbildung ähnlich
