Produktbeschreibung

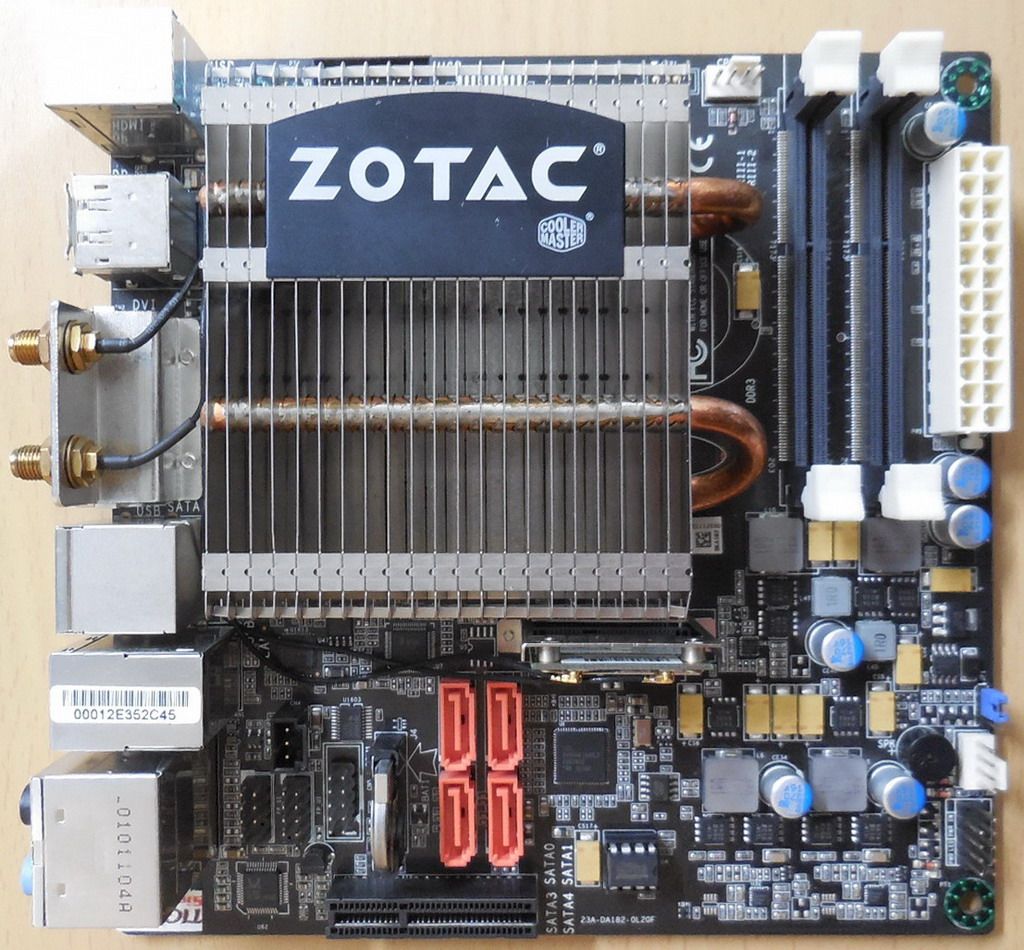

Zotac FUSION350-A-E Mainboard AMD E-350 Dual Core APU Wifi USB3.0 SO-DDR3 ohne Blende ohne Antennen
Technische Daten
CPU
AMD® E-350 (Dual-core, 1.6 GHz)
Chipset
AMD® M1
Memory
2 x 204-pin SO-DIMMs DDR3-1066; Maximum memory size 8GB
Please refer to Memory Support List on Zotac's website for more information
Graphics
AMD® RADEON HD 6310 Graphics, DirectX 11, 500 Mhz
Single-link DVI/HDMI/DP output (VGA compatible with adapter, not included)
Support up to 2560x1600 resolution
Support AMD® UVD3.0
Audio
8 channel High Definition Audio (including one optical SPDIF output port)
All DACs support 192k/96k/48k/44.1kHz sample rate
One SPDIF-out header on board
Onboard LAN
Support Full Duplex flow control (IEEE802.3x)
10/100/1000 BASE-T IEEE 802.3 compliant
Wake On LAN (WOL) power management support
WiFi support
Compliant with IEEE802.11n Draft 2.0 Standard
High speed wireless connection and enhanced wireless security
Max transfer rate up to 150 Mbps (optional for different models)
Slots
1 x PCI Express x4 slot (open-ended)
1 x Mini PCI Express slot (half-height)
Storage
Independent DMA operation on four ports
4 x Four SATAIII ports (6.0 Gb/s)
eSATA Port
1 x eSATA port on backpanel (Supports hot plug and play)
USB 2.0 ports
6 x USB 2.0 ports (four ports on the back panel, two via the USB brackets connected to the internal USB header)
Supports hot plug and play and USB 2.0 protocol up to 480 Mbps transmission rate
USB 3.0 ports
Supports hot plug and play
4 x USB 3.0 ports (two on the back panel, two via the USB bracket connected to the internal USB header)
Fully backward compatible with USB 2.0 and 1.1 specifications
Connectors
1 x COM1 Header
1 x 4-pin CPU Fan Connector
1 x 4-pin Chassis Fan Connector
1 x 24-pin ATX Power Connector
1 x Front Panel Connector
1 x Front Panel Audio Connector
1 x SPDIF-Out Header
4 x SATA3 6.0 Gb/s Connectors
1 x USB 2.0 Header
1 x USB 3.0 Header
1 x Clear CMOS Jumper

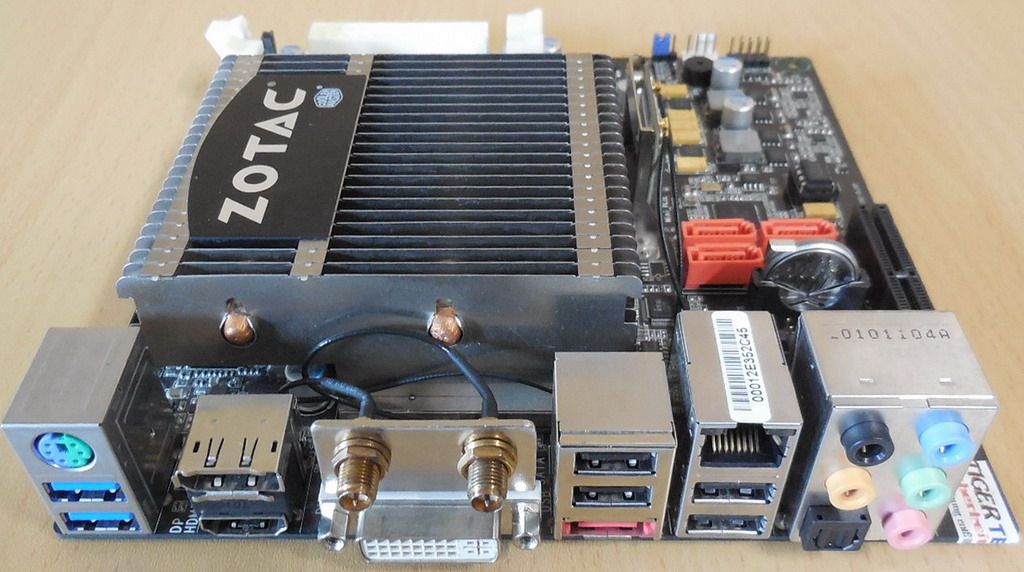

Rear Panel I/O
1 x PS/2 Mouse/Keyboard Combo Port
1 x eSATA
1 x DVI Port
1 x HDMI Port
1 x DisplayPort
4 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone / Center-Subwoofer / Rear Speaker Out / Optical SPDIF Output
2 x WiFi Antenna Connectors (Antennen nicht im Lieferumfang)
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Form Factor
Mini ITX form factor of 6.7 X 6.7 inch
OS
Supports Windows XP 32bit/64bit, Windows Vista 32bit/64bit and Windows 7 32bit/64bit
Lieferumfang
Nur das Mainboard mit integrierter APU und Kühlkörper * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
