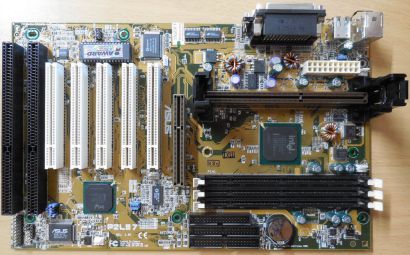

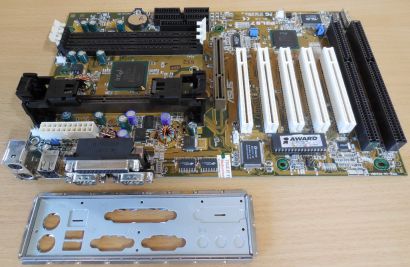

Asus P2L97 Rev 2.05 Mainboard NEU OVP Slot 1 Intel 440LX 2x ISA AGP PCI* m822

Asus P2L97 Rev 2.05 Mainboard NEU OVP Slot 1 Intel 440LX 2x ISA AGP PCI

Technische Daten

The ASUS P2L97 is carefully designed for the demanding PC user who wants manyfeatures processed by the fastest CPU.

CPU

Versatile Processor Support       Intel Pentium® II (233MHz–333MHz) processor.

Multi-Cache       Supports processors with Pipelined Burst Level 2 cache.

Chipsatz

Intel 440LX AGPset with I/O subsystems

Memory

Versatile Memory Support       Equipped with three DIMM sockets to support (8,16, 32, 64, or 128MB) 168-pin SDRAM/EDO memory modules up to 384MB.

Expansion Slots

2 x ISA (1x 16-bit; 1xISA/PCI shared)

4 x PCI (32-bit)

1 x AGP (Supports Accelerated Graphics Port cards for high performance, component level interconnect targeted at 3D graphical display applications.)

Storage

Ultra DMA/33 BM IDE/Floppy       Comes with an onboard PCI Bus Master IDEcontroller with two connectors that supports four IDE devices in two channels; supports Ultra DMA/33, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 2, and supports Enhanced IDE devices such as Tape Backup, CD-ROM and LS-120 drives.

Wake-On-LAN Connector

Supports Wake-On-LAN activity through an optional ASUS PCI-L101 Fast Ethernet card. (nicht im Lieferumfang)

Audio

ALC662 High Definition Audio 6 -Channel

S/PDIF out on back I/O port

Audio Jack-detect Technology

USB

2 x USB1.0 ports

Back Panel I/O Ports

1 x Parallel

1 x PS/2 Keyboard

1 x PS/2 Mouse

2 x COM port

Internal I/O Connectors

2 x USB connectors support additional 4 USB 2.0 ports

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

20-pin Power connector

4-pin internal Speaker connector

System Panel connector

Enhanced ACPI & Anti-Boot Virus BIOS

Programmable BIOS (Flash EEPROM), offering enhanced ACPI for Windows 98 compatibility, built-in hardware-based virus protection and autodetection of most devices for virtually automatic setup.

Thermal Sensor Connector with Optional Sensor

Accurately detects the CPU temperature of processors with the ASUS Smart Fan or the Intel boxed processor heatsink with fan when connected to an ASUS P2T-Cable.

Keyboard Power (Wake) Up

Allows the computer to be powered on by press-ing any key on the keyboard.

Intelligence

Supports Fan Status Monitoring and Alarm, Temperature Monitoring  and  Alert,  Voltage  Monitoring  and  Alert,  System  Resources  Alert,  and Virus Write Protection through the optional onboard LM78 Hardware Monitorand Intel® LANDesk Client Manager (LDCM) software.

Universal Retention Mechanism

Supports a Pentium® II processor packaged in Single Edge Contact Cartridge (SECC/SECC2) or a CeleronTM processor packaged in a Single Edge Processor Package (SEPP).

Easy  Installation

Equipped  with  BIOS  that  supports  auto  detection  of  harddrives, PS/2 mouse, and Plug and Play devices to make setup of hard drives,expansion cards, and other devices virtually automatic.

Super  Multi-I/O

Provides  two  high-speed  UART  compatible  serial  ports  and one parallel port with EPP and ECP capabilities. UART2 can also be directed from COM2 to the Infrared Module for wireless connections.

Desktop Management Interface (DMI):

Supports DMI through BIOS, which allows hardware to communicate within a standard protocol creating a higher level of compatibility. (Requires DMI-enabled components.)

IrDA Connector

Supports an optional infrared port module for wireless interface.

Concurrent PCI:

Concurrent PCI allows multiple PCI transfers from PCI master busses to memory to CPU.

Accessories

User's manual; 1 x Floppy disk drive cable; I/O Shield; 1 x IDE cable; Support CD (Drivers; ASUS PC Probe; PC-cillin)

Form Factor

ATX Form Factor

Lieferumfang

Mainboard mit Zubehör laut Handbuch * NEU & OVP *

Abbildung ähnlich
