Produktbeschreibung

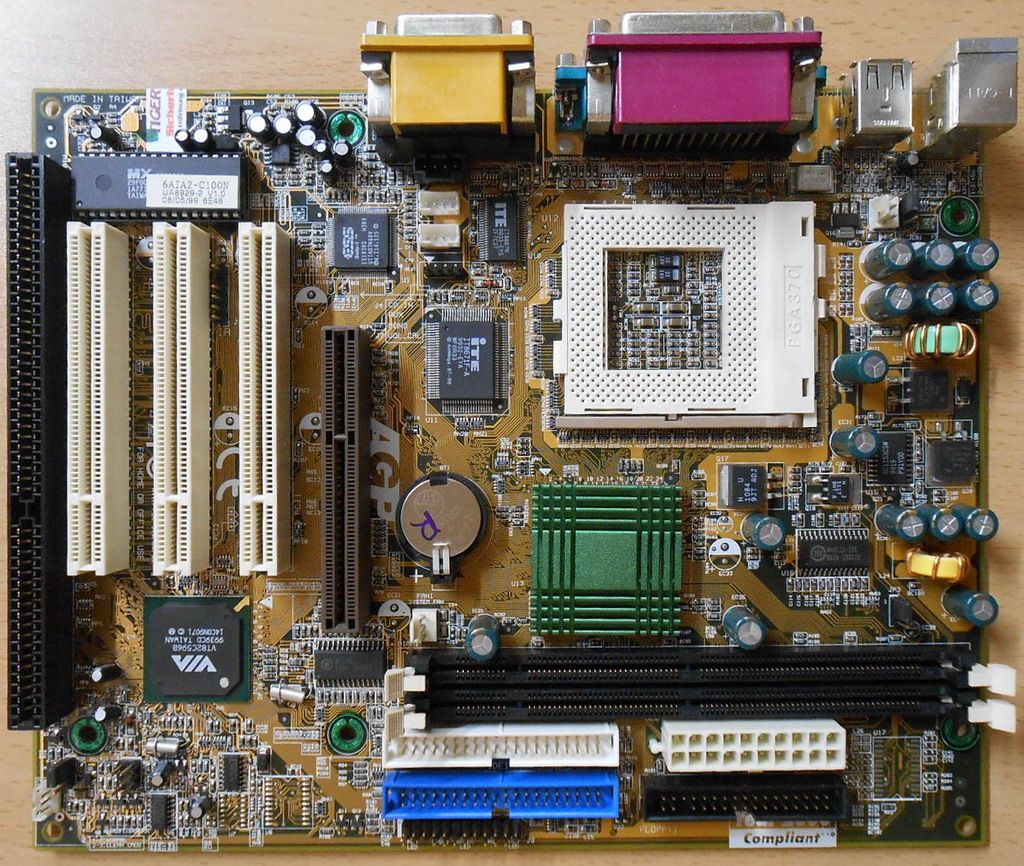

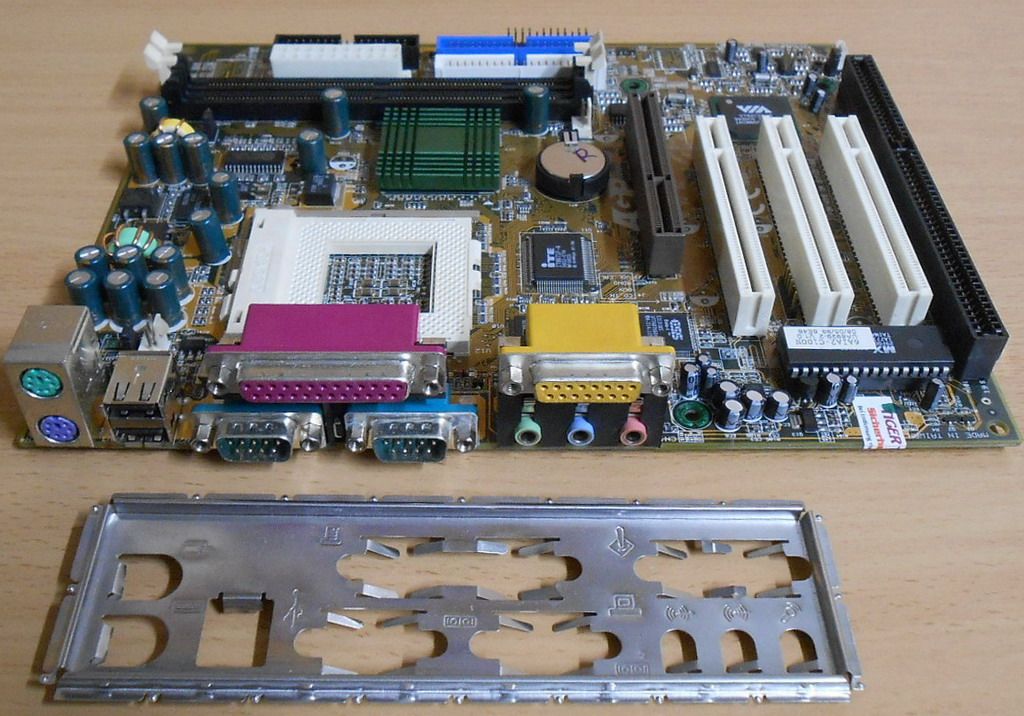

Chaintech 6AIA2 -C100N Mainboard + Blende
PGA 370 VIA Apollo Pro ISA AGP Audio
Technische Daten
UA8929-2 V1.0
Processor
Supports only PPGA370 Celeron Mendocino CPU´s!
Unterstützt nur Celeron Mendocino CPU´s!
Supports 66/100 MHz system clock speeds
Innovative SeePU technology (software CPU installation with no jumper settings)
Chipset
VIA Apollo Pro
DRAM Memory
Two 3.3V 168-pin DIMM sockets support up to max. 256MB
Provides Parity/single-bit ECC capability
Expansion Slots
One 32-bit AGP slot (Rev 1.0 compliant)
Three 32-bit PCI slots (Rev 2.1 compliant)
One 16-bit ISA slot
Embedded PCI IDE controller
Supports two IDE ports up to 4 ATAPI devices
Embedded Super I/O Functions
One parallel supports SPP/ECP/EPP (D-Sub 25-pin female)
One floppy disk drive connector supports up to 2.88MB, Japanese 3- Mode and 1Mbps transfer rate
PS/2 Mini-DIN keyboard and mouse ports
Two Channel USB ports
Two D-Sub 9-pin male serial port
One D-Sub 15-pin female Game/MIDI port
Audio Line-out, Line-in, Mic-in jacks
Integrated PCI Audio Subsystem
ESS Solo-1 ES1938S 2-Kanal Audio chip
Board Dimensions
micro ATX form factor, ca. 244mm x195mm
Year 2000 compliant
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
