Produktbeschreibung

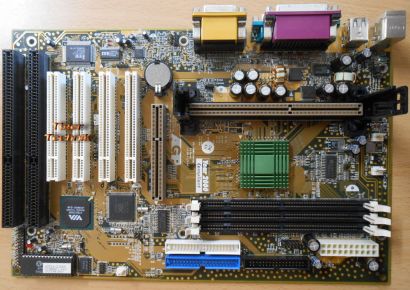

Chaintech 6VTA2-D100N Mainboard + Blende
Slot 1 VIA 2x ISA AGP PCI Audio
Technische Daten
Processor
Supports Slot-1 Intel processors up to 600MHz and Celeron up to 500MHz
System clock 66/100MHz
Foldable universal Slot-1 retention mechanism for SEPP, SECC, SECC2 and S-370
High efficiency Switching Power Modules (VRM v8.4 compliant)
Chipset
VIA VT82C693+596B(Pro+) two-chip AGPset
DRAM Memory
Three 168-pin DIMM sockets support up to 384 MB PC-100 SDRAM timing
Provides single-bit ECC capability
10ns or faster SDRAM DIMM modules with SPD are required for 100MHz frequency clock speed
Because 256MB unbuffered DIMM and Registered DIMM modules are not yet mainstream, their compatibility can not be guaranteed.
Expansion Slots
One AGP slot (v2.0, 2X compliant)
Four 32-bit PCI slots (Rev 2.2 compliant) with full master mode. Supports 3.3v, 3.3vsb and #PME capability on PCI slots
Two 16-bit ISA slots (with one shared )
2MB Boot-Block Flash ROM
Award System BIOS, supports PnP, APM, DMI, ACPI & Multi-device booting features (Floppy, LS120, CD-ROM, IDE, SCSI, ZIP ATAPI etc.)
Includes Trend ChipAway Virus
The Trend ChipAway Virus is a rule-based anti-virus technology and does not require periodical updates of virus code
Embedded UltraDMA-66 PCI IDE Controller
Two IDE ports support up to 4 ATAPI devices
Supports up to PIO Mode 4, and Multi-word Mode 4 with UltraDMA-66 timings
Bus Mastering software drivers for all common multitasking operating systems
Blue colored connector for IDE#1, white colored connector for IDE#2
On-board Super I/O Functions
ITE 8671 I/O chip
Two UARTs support two serial ports
One Parallel supports SPP/ECP/EPP
One floppy disk drive connector supports up to 2.88MB, Japanese 3-Mode, and 1Mbps transfer rates
Supports IR function (up to 115.2Kbps) for HPSIR and ASKIR
Double Stack Back-Panel I/O Connectors
PS/2 Mini-DIN keyboard & mouse ports
Two USB ports
Two 9-pin D-SUB male Serial ports
One 25-pin D-SUB female Printer port
One 15-pin D-SUB female Game/MIDI port
Audio Line-out, Line-in, and Mic-in jacks
Onboard PCI Audio Subsystem
Yamaha YMF740Caudio chip with AC'97 CODEC
CD-quality, 16-bit stereo audio controller
Programmable independent sample rate form 4KHz to 48KHz for record and playback
Full-duplex operation for simultaneous recording and playback
Built-in FM music synthesizer
Advanced Wavetable Synthesizer using wavedata on system memory.
Supports Microsoft DirectSound, DirectSound3D, and Sondius-XG software
Legacy DOS games compatible
Meets ACPI standard and PC98 WHQL audio requirements
Embedded USB Controller wiht 4 USB ports(USB v1.1 and UHCI v1.0 compliant)
Board Dimensions
ATX form factor, 305mm x 190mm, 4 Layers
Advanced Management Features
Innovative SeePU technology for jumperless CPU installation
Optional LDCM compliant System Monitoring Hardware
Poly-fuse protection for USB and keybosrd circuitry
Hardware design meets Microsoft PC98 requirements
Power-on events:Mouse movement or clicks, Keyboard password, WOL(wake-on-LAN) network card, Modem ring, RTC Alarm
Software power off control for Win95, Over-ride power button, Power failure recovery, Blinking Power-LED in Suspend.
Flash BIOS write protection against unauthorized access with Trend ChipAway Virus, to ensure virus-free booting procedure
ACPI features ready when ACPI-enabled O/S is available
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
