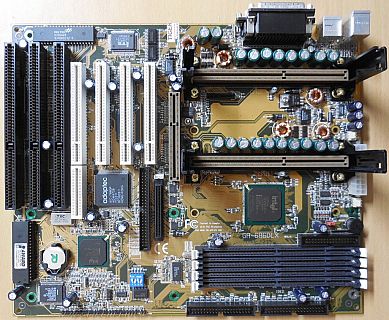

Gigabyte GA-686DLX Rev 1C Mainboard +Blende Dual Slot 1 AGP 3x ISA 4xSDRAM*m1060

Gigabyte GA-686DLX Rev 1C Mainboard + Blende Dual Slot 1 AGP PCI 3x ISA 4x SDRAM USB

Technische Daten

CPU

Supports Dual Intel Pentium ® II Processor 233MHz-633MHz

Slot 1 Socket for Future Expansion

Chipset

Intel 82440 LX AGPset

Winbound 83977 I/O (1Mb/S)

Adaptec 7880B Ultra Wide SCSI

Memory

4 x 168-pin 3.3v DIMM sockets support

Supports 8/16/32/64/128/256 MB DIMM Module

Supports EDO RAM, SDRAM (Support ECC, 72 bit)

Supports 8MB to 1GB DRAM Size

CPU Built-in 256KB/512KB L2 cache

Expansion Slots

4 x PCI 32-bit slots, PCI 2.1 compliant

3 x ISA 16-bit slots

1 x AGP (1x & 2x Mode,66/133MHz) slot

I/O Controller

1 x Ultra Wide SCSI & 1 x Ultra SCSI port

1 x floppy port (360KB-2.88MB)

2 x serial ports (16550 high-speed)

1 x parallel port (EPP/ECP)

PS/2 Keyboard

PS/2 Mouse

2 x USB Ports On-board

Back Panel I/O Ports

1 x Parallel (EPP/ECP)

2 x Serial (16550 high-speed)

1 x PS/2 Keyboard

1 x PS/2 Mouse

2 x USB

Internal I/O Connectors

2 x 3-pin CPU Fan connector

1 x ATX Power USE connector

2 x IDE connectors

1 x Ultra 8 bit SCSI connector

1 x Ultra Wide SCSI connector

1 x Floppy Disk connector (supports FDD 360KB - 2.88Mbytes)

1 x CPU Speed Setting Switch

1 x 20-pin ATX Power connector

1 x Buzzer

1 x Green LED connector

1 x IrDA connector

1 x Front Panel connector

H/W Monitoring

Temperature Sensor Under Processor Heatsink

Speaker Alarm When CPU Overheats or CPU Fan Failure

Auto Speed Down When CPU Overheats (OS Independent & Driverless)

System Health Status Detect & Report by BIOS, LDCM ® & SIV

Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage

BIOS

2 Mbit (256KB) FLASH RAM

Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions

LS120, ZIP, ATAPI CD_ROM Bootable

Auto-detect & Report System Health Status

Supports Suspend to Hard Disk Function

Stromversorgung

ATX Power Connector

Power On by LAN, RTC Alarm Modem Ring & Soft-Power Switch

Power Off by Windows 95 Shut down & Soft-Power Switch

AC Recovery On/Off Control

Supports Fan Stop During Suspend Mode

Supports 3 Level ACPI LED

Formfaktor

ATX Form Factor; 4 layer PCB; 9 mounting holes

ATX Connector on Board

Double Deck ATX Back Panel

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
