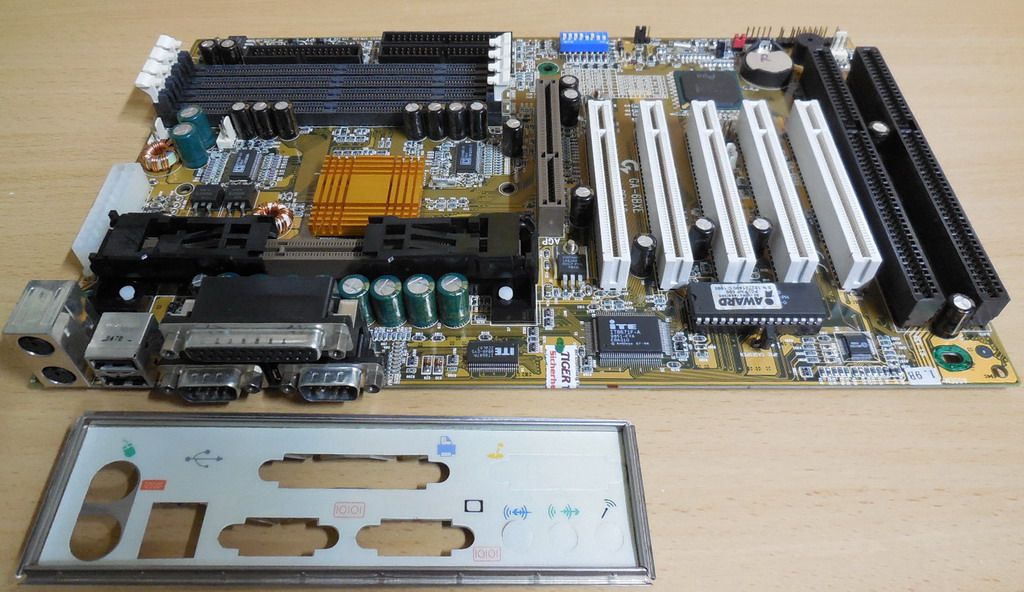

Gigabyte GA-6BXE Rev 1.9 Mainboard +Blende Slot 1 AGP USB 2x ISA 4x SDRAM* m990

Gigabyte GA-6BXE Rev 1.9 Mainboard + Blende Slot 1 AGP USB 2x ISA 4x SDRAM

Technische Daten

CPU

Slot 1 Socket for future Processor support

66/75*/83*/100/112*/124*/133* MHz Main Clock (*Overclock)

Auto Detect CPU Voltage

Clock multiplier 3.0/3.5 ...... / 5.5

Chipset

Intel 82440 BX AGPset

iTE 8671 I/Oset (1Mb/S)

Winbond 83782 Health Chip

Memory

CPU Built-in 256KB/512KB L2 cache System Memory

4 x 100MHz 168-pin 3.3v DIMM sockets support

Supports 8/16/32/64/128/256 MB DIMM Module

Supports EDO RAM, SDRAM (Support ECC, 72 bit)

Supports 8MB to 1GB DRAM Size

Expansion Slots

5 x PCI 32-bit slots, PCI 2.2 compliant

2 x ISA 16-bit slots

1 x AGP (1x & 2x Mode,66/133MHz) slot

USB

2 x USB ports

Other Features

Supports Wake On LAN Header (WOL)

Supports Creative SB-LINK connector for Sound Blaster AWE64D PCI Sound

Supports 3 Fan Detection Connectors

Poly fuse for keyboard overcurrent protection

Case Open Detection

Back Panel I/O Ports

1 x Parallel (EPP/ECP)

2 x Serial (16550 high-speed)

1 x PS/2 Keyboard

1 x PS/2 Mouse

2 x USB

Internal I/O Connectors

1 x JP1 Keyboard Power Jumper

1 x 3-pin CPU Fan connector

1 x 3-pin Power Supply Fan connector

1 x 3-pin Panel Fan connector

2 x IDE connectors

1 x Floppy Disk connector (supports FDD 360KB - 2.88Mbytes)

1 x CPU Speed Setting Switch

1 x 20-pin ATX Power connector

1 x JP7 Wake-Up on LAN connector

1 x JP8 SB-Link connector

1 x J15 System after AC Back Jumper

1 x JP11 System Acceleration Jumper

1 x JP12 Case Open Jumper

1 x Buzzer

1 x IrDA connector

1 x JP14 Clear CMOS Jumper

BIOS

2 Mbit (256KB) FLASH RAM

Award BIOS with Enhanced ACPI Feature for PC98/Win98

Compliance, Green,PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions

IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable

AC Recovery ON/OFF Control function

Auto-detect & Report System Health Status

Stromversorgung

ATX Power connector

Power On by Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Switch

Power Off by WindowsR 98 Shut down & Soft-Power Switch

AC Recovery On/Off Control by BIOS

Stop CPU Fan during entering suspend mode

3 Level ACPI LED Support

Dimension

ATX Form Factor; 31.0cm (L) x 19.2cm (W) x 4 layers PCB

Mounting

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
