Produktbeschreibung

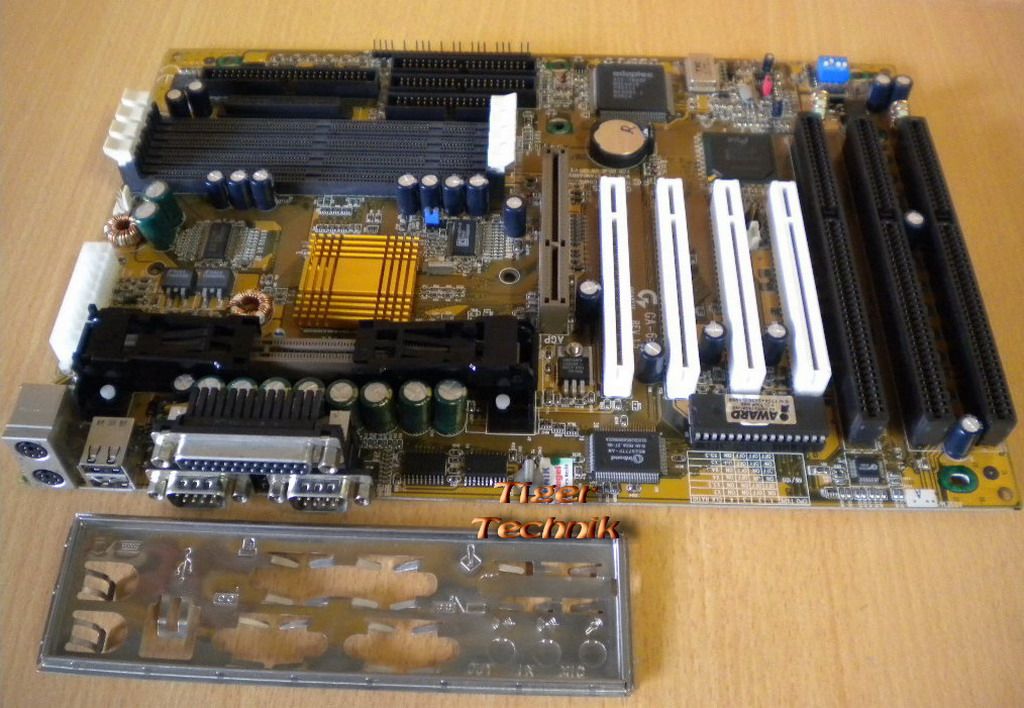

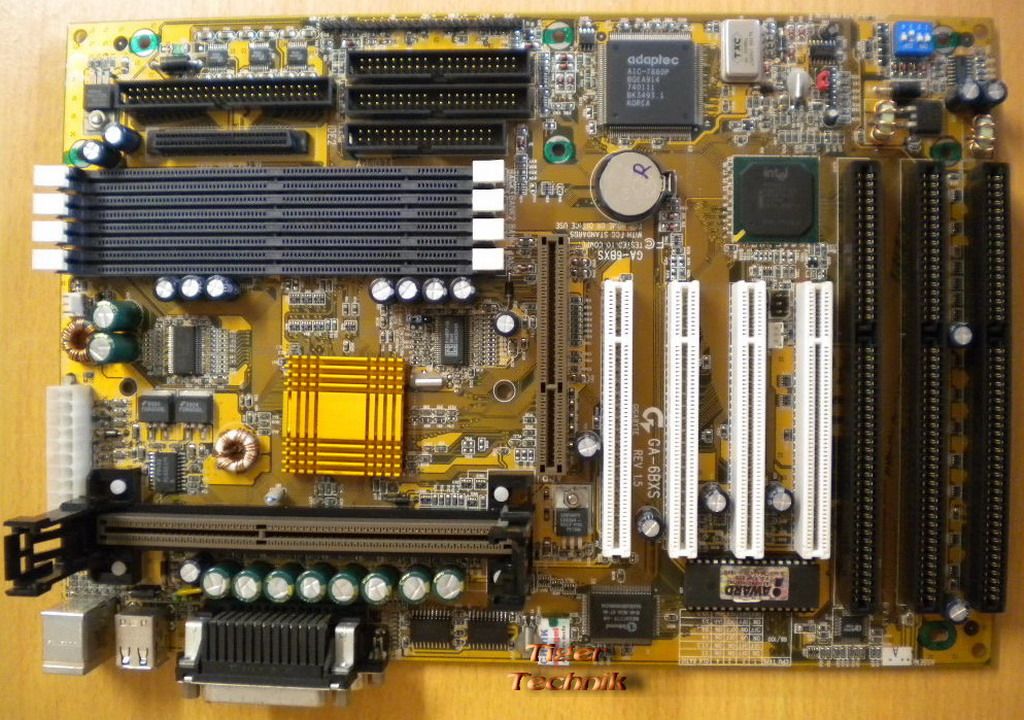

Gigabyte GA-6BXS Rev 1.5 Mainboard + Blende
3x ISA Slot 1 Intel 440BX Adaptec SCSI Controller
Technische Daten
CPU
Intel Pentium ® II / III Processor
350MHz-550MHz (for 100MHz system Bus)
233-333MHz (for 66MHz system buse setting)
Slot 1 Socket for Future Expansion
Chipset
Intel 82440 BX AGPset
Winbond 83977 I/O (1Mb/S)
Winbond 83781 Health Chip
Adaptec 7880 Ultra Wide SCSI
Memory
CPU Built-in 256KB/512KB L2 cache System Memory
4 x 100MHz 168-pin 3.3v DIMM sockets support
Supports 8/16/32/64/128/256 MB DIMM Module
Supports EDO RAM, SDRAM (Support ECC, 72 bit)
Supports 8MB to 1GB DRAM Size
Expansion Slots
4 x PCI 32-bit slots, PCI 2.2 compliant
3 x ISA 16-bit slots
1 x AGP (1x & 2x Mode,66/133MHz) slot
Support Creative PCI Sound Card SB-Link™
IDE PORTS
2x Ultra DMA/33 Bus Master IDE channels onboard. (Using IRQ14,15)
Support Mode 3,4 IDE & ATAPI CD ROM.
SCSI PORTS
Supports 1 Ultra Wide SCSI port.
Supports 1 Ultra SCSI port.
I/O Controller
1x floppy port (360KB-2.88MB)
2x serial ports (16550 high-speed)
1x parallel port (EPP/ECP)
2x USB + PS/2 Mouse + PS/2 Keyboard
H/W Monitoring
Temperature Sensor Under Processor Heatsink
Speaker Alarm When CPU Overheats or CPU Fan Failure
Auto Speed Down When CPU Overheats
System Health Status Detect & Report by BIOS, LDCMR & SIV
Hardware Detects +/- 5v, +/-12v, CMOS Battery Voltage & CPU Voltage
BIOS
2 Mbit (256KB) FLASH RAM
Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4) and Anti-Virus Functions
LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
Auto-detect & Report System Health Status
Form Factor
ATX Form Factor, 4 layer PCB
ATX Connector on Board
Double Deck ATX Back Panel
Power
Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
Power Off by Windows ® 95 Shut down & Soft-Power Switch
AC Recovery On/Off Control
Supports Fan Stop During Suspend Mode
Supports 3 Level ACPI LED
Lieferumfang

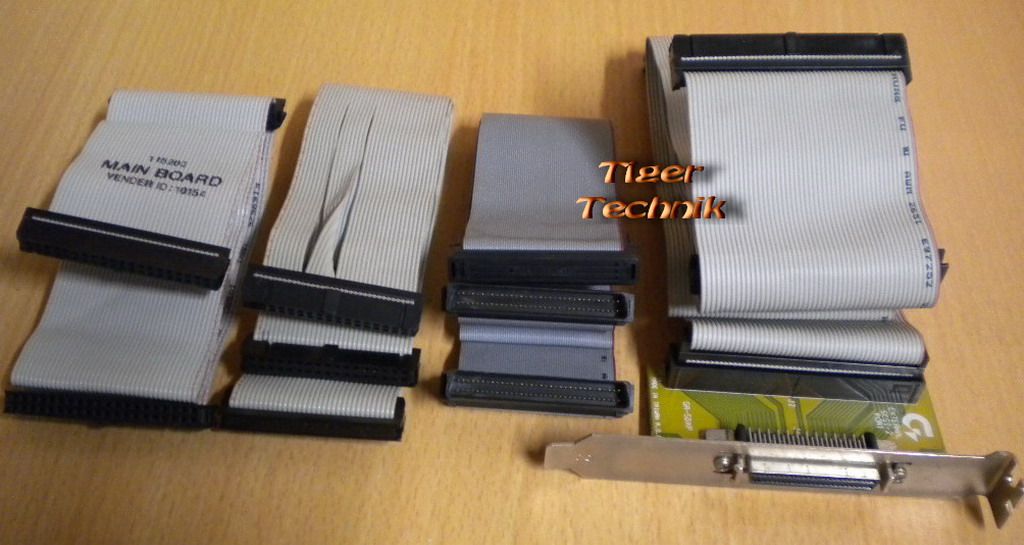

Das Mainboard inkl. Blende, 1x Floppykabel, 1x IDE Kabel, 1x SCSI Ultra SCSI Kabel mit GA-5DXP External SCSI Port Blende, 1x Ultra Wide SCSI Kabel * kein weiteres Zubehör * gebraucht *
Abbildung ähnlich
