Produktbeschreibung

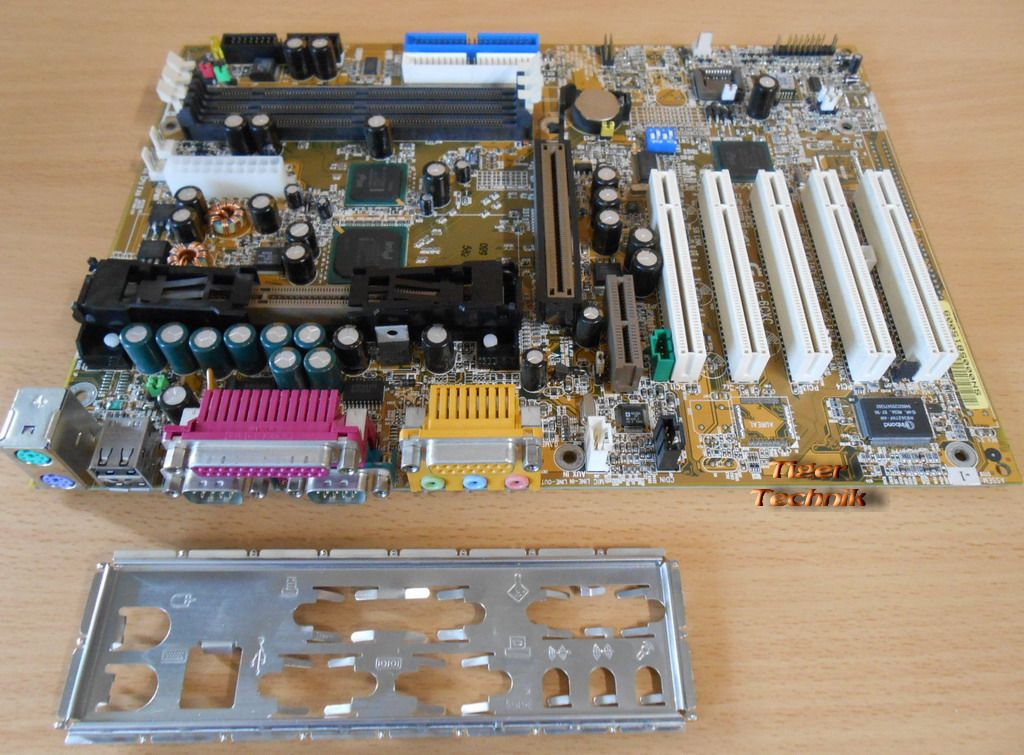

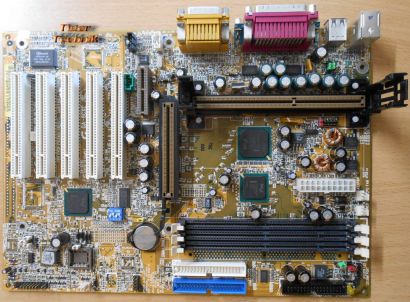

Gigabyte GA-6CXC Rev 3.1 Mainboard + Blende
Slot 1 Intel 820 AGP 4X PCI
Technische Daten
CPU
Slot 1 for Intel® Pentium® II / III processors
Supports CPU multiplier 3.0~8.0 for future processors
Auto/100/110*/120*/133/140*/150* MHz FSB
AUTO detect CPU voltage
Chipset
Intel® 820 AGPset
Winbond W83627HF I/O chip
Aureal AU8810 PCI sound chip; AC97 codec
Winbond W81181D USB controller
Memory
64MB to 1GB memory size
3 x DIMM sockets
Supports 64/128/256/512 MB SDRAM module
Expansion Slots
1 x AGP slot supports 2X/4X mode
1 x AMR (Audio Modem Riser) slot
5 x PCI slots support 33MHz & PCI 2.2 compliant
I/O Controller
2 x Ultra DMA 33/66 Bus Master IDE ports on board
1 x FDD, 2 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
2 x USB ports on board
CIR TX / RX Header (optional)
IrDA TX / RX Header
H/W Monitoring
Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
3 fan power & speed detection connectors; Case open detection
System health status detect & report by BIOS, LDCM® & SIV
H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
BIOS
Includes DualBIOS™ technology ; 4Mbit flash RAM
AWARD BIOS with enhanced ACPI feature for PC98 / Win98 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
Auto-detect & report system health status
Form Factor
ATX , 4 layer PCB (30.5*22.0cm)
Other Features
Suspend-To-RAM (STR)
Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
Poly fuse for keyboard, USB & game overcurrent protection
Power
ATX power connector
Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & Switch
Power-off by Windows 95/98 shut down & Switch
Supports USB device wake-up
Suspend / Wake-on by ACPI & APM device
AC recovery ON/OFF control; 3 level ACPI LED support
Stop CPU fan during entering suspend mode
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
