Produktbeschreibung

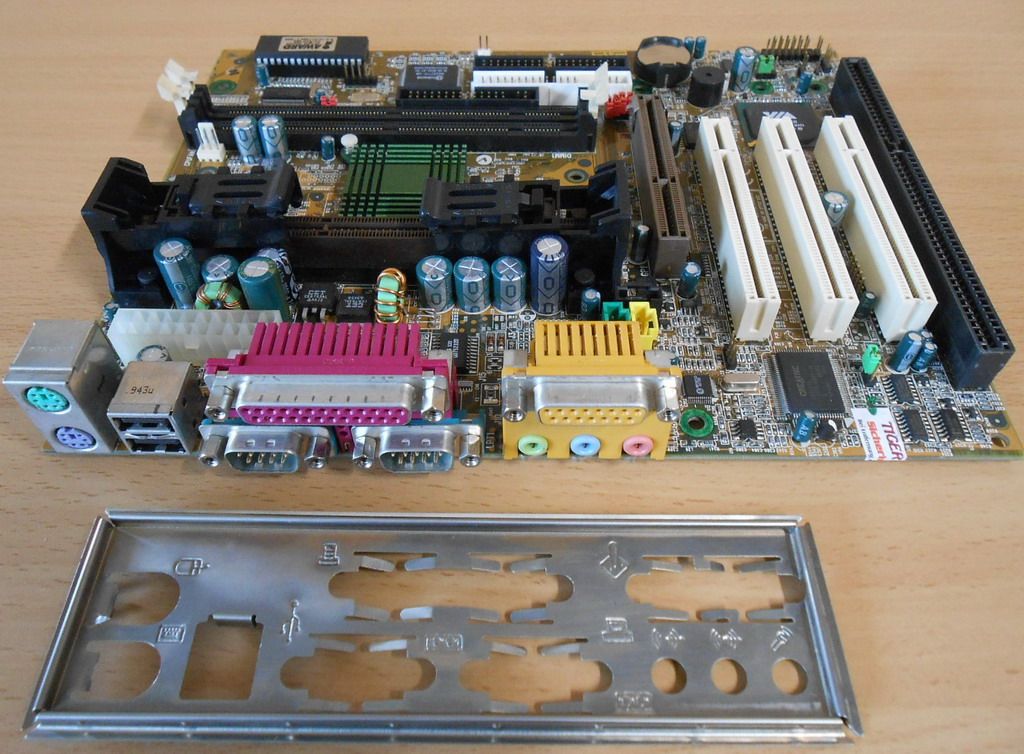

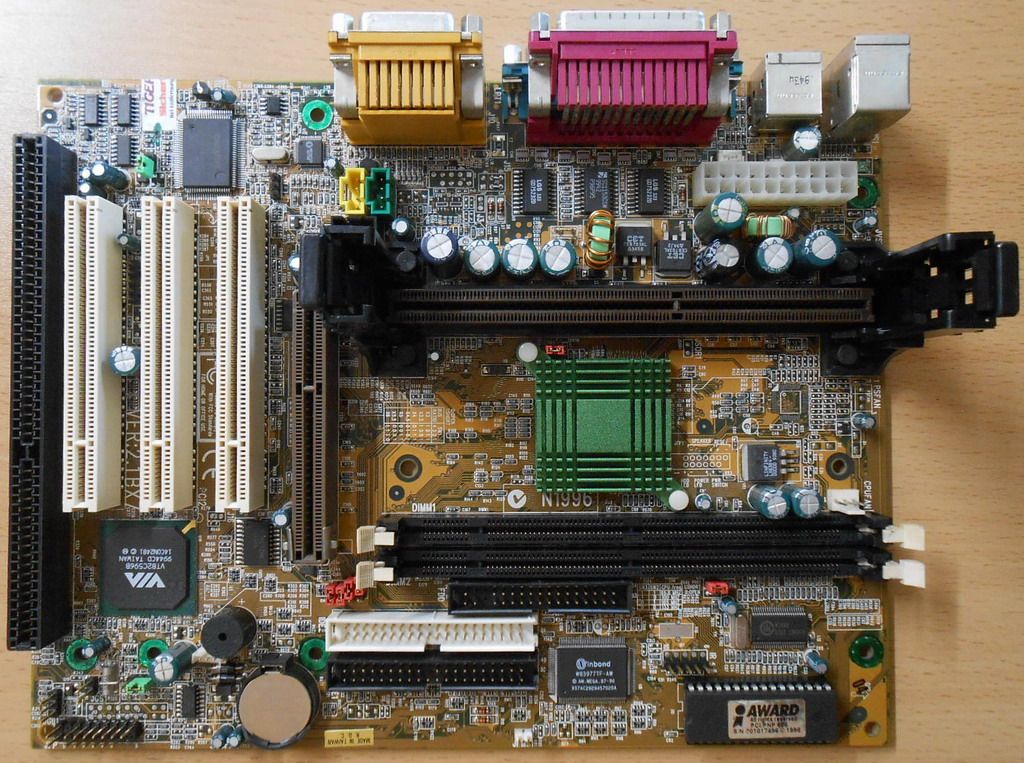

MSI MS-6156 Ver 2.1 BX7 Mainboard + Blende
Intel Slot 1 FSB100 ISA AGP PCI
Technische Daten
CPU
Slot 1 for Intel® Pentium® II/CeleronTM processor.
Supports 233MHz, 266MHz, 300MHz, 333MHz, 350MHz, 400MHz, 450MHz and faster.
Chipset
Intel® 82443BX/PIIX4E chipset.
Clock Generator
66 and 100 MHz clocks are supported
Main Memory
Supports 4 memory banks using two 168-pin unbuffered DIMM.
Supports a maximum memory size of 256MB (8M x 8) or 512MB (16M x 4) registered DIMM only.
Supports ECC(1-bit Error Code Correct) function.
Supports 3.3v SDRAM DIMM.
Slots
1x AGP slot.
3x 32-bit Master PCI Bus slots and one 16-bit ISA bus slots wherein one shared slot can be used as ISA or PCI.
Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the Intel® PIIX4E PCI Chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes.
Can connect up to 4 IDE devices.
On-Board Peripherals
On-Board Peripherals include:
1x floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
2x USB ports
2x serial port (COM 1) and (COM 2)
1x parallel port supports SPP/EPP/ECP mode
1x IrDA connector for SIR.
Sound
Creative® ES1371/ES1373 (reserved)
Running on PCI BUS.
64 Voice and AC3 Capable (ES1373 only)
Support Direct Sound and Direct Sound 3D
AC97’ Compliant
I/O Chip
Winbond® multi super I/O W83977TF
2M bps fast tape drive, IRQ sharing
Device Power Management
Real time clock (256 bytes RAM)
8042-based keyboard controller (support PS/2 mouse)
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
ACPI(Advanced Configuration and Power Interface) feature.
Dimension
MICRO ATX Form Factor : 24.4cm(L) x 19.2cm(W) x 4 layers PCB
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
