Produktbeschreibung

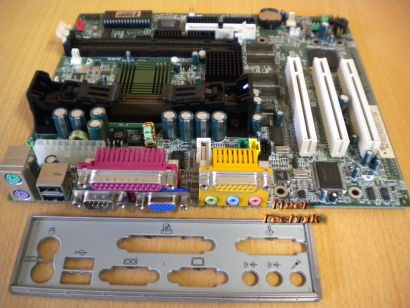

MSI MS-6190 Ver1 Medion 9901 Mainboard + Blende
Slot 1 Intel 440ZX VGA Audio
Technische Daten
CPU
Slot 1 for Intel® Pentium® II/Pentium® III/CeleronTM processor.
Supports 233MHz, 266MHz, 300MHz, 333MHz, 350MHz, 400MHz, 450MHz, 500MHz and faster.
Chipset
Intel® 440ZX AGPset
- support 66 or 100Mhz Host bus frequency
- support AGP & PCI
Intel® PIIX4E chipset
- PCI to ISA Bridge PC98 Compliant
- UltraDMA-33 Master Mode PCI IDE Controller
- Super I/O Interface
- 324 pin BGA package
FSB (Front Side Bus)
66.6MHz and 100MHz clocks are supported.
Main Memory
Supports four memory banks using two 168-pin unbuffered DIMM.
Supports a maximum memory size of 256MB (8M x 8).
Supports 3.3v SDRAM DIMM.
Slots
Three 32-bit Master PCI Bus slots
Supports 3.3v/5v PCI bus Interface.
On-Board IDE
An IDE controller on the Intel® PIIX4E PCI Chipset provides IDE HDD/ CD-ROM with PIO, Bus Master and Ultra DMA/33 operation modes. Can connect up to four IDE devices
On-Board Peripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes.
- 1 serial port (COM A) + 1 serial connector (COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 1 MIDI/Game Port
- 2 USB ports
- 1 IrDA connector for SIR/FIR.
- 1 Audio port (Line_In, Line_Out, and Mic_In Jack)
- 1 VGA port
VGA
nVIDIA Riva TNT2 M64
- Running on AGP BUS.
- Onboard 32MB (4*16M) SDRAM.
- 3D Acceleration.
- AGP 2x mode support pipelined protocols.
Sound
Creative® ES1373
- Running on PCI BUS.
- Support Direct Sound and Direct Sound 3D
- AC97’ Compliant
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
ACPI(Advanced Configuration and Power Interface) feature.
Dimension
MICRO-ATX Form Factor: 24.4cm(L) x 20.6cm(W) x 4 layers PCB
Mounting
6 mounting holes.
System Hardware Monitor (optional)
CPU/Power Supply/Chassis Fan Revolution Detect
CPU Fan Control (the fan will automatically stop when the system enters suspend mode)
System Voltage Detect
CPU Overheat Warning.
Display Actual Current Voltage
Other Features
Keyboard Password Wake-Up (reserved)
LAN Wake-Up
Internal/External Modem Wake-Up
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
