Produktbeschreibung

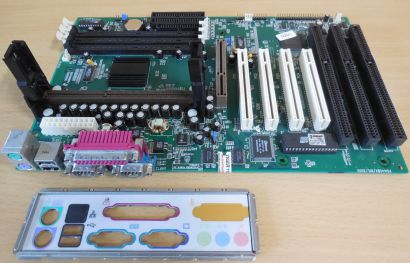

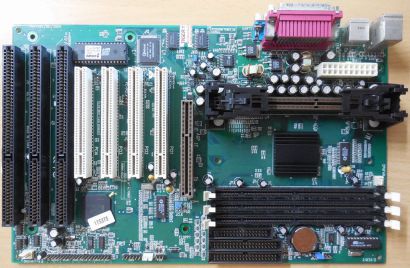

Legend QDI BrillianX 1S V 2.0(S2.1) Mainboard + Blende Intel Slot 1 P6I440BX/B1S/2000 3x ISA AGP 4x PCI SD-RAM
Technische Daten
CPU
Supports all Intel Pentium® II processors at 233/266/300/333MHz with 66MHz bus speed and 350/400/450MHz with 100MHz bus speed
Supports all Intel® Celeron processors at 266/300/333 MHz with 66MHz speed
Supports 66MHz and 100MHz host bus speed
CPU core frequency = Bus speed x2.5, x3, x3.5, x4, x4.5, x5, x5.5
CPU core supply voltage adjustable from 1.3V to 3.5V through on- board switching voltage regulator with VID(Voltage ID)
Chipset
Intel® 440BX AGPset: 82443BX, 82371EB (PIIX4E)
Memory
Provides three 168 pin 3.3V unbuffered DIMM sockets
Supports both 66MHz/100MHz SDRAMs with SPD and 66MHz EDO DIMMs
Minimum memory size is 8MB, maximum memory size is 768MB
SDRAM 64 bit data interface with ECC support
Expansion Slots
3 x ISA slots
4 x PCI slots
1 x AGP slot
On-board IDE
Supports two PCI PIO and Bus Master IDE ports
Two fast IDE interfaces supporting four IDE devices including IDE hard disks and CD-ROM drives
Supports up to mode 4 timing
Supports "Ultra DMA/33" Synchronous DMA mode transferring up to 33 Mbytes/sec
Integrated 16x32bit buffer for IDE PCI Burst Transfers
Onboard I/O
Use Winbond W83977EF super I/O chip
One floppy port supporting up to two 3.5''or 5.25" floppy drives with 360K/720K/1.2M/1.44M/2.88M format
Two high speed 16550 fast compatible UARTs(COM1/COM2/COM3/COM4 selective) with 16-byte send/receive FIFOs
One enabled parallel port at the I/O address 378H/278H/3BCH with additional bi-direction I/O capability and multi-mode as SPP/EPP/ECP (IEEE 1284 compliant)
Circuit protection provided, preventing damage to the parallel port when a connected printer is powered up or operates at a higher voltage
Supports LS-120 floppy disk drive
All I/O ports can be enabled/disabled in the BIOS setup
Other Ports & Connectors
1 x CHSSEC connector; 1 x CMOS Jumper, 1 x JAV Write Flash connector; 1 x WOL connector; 1 x WOM connector; 1 x JKB Keyboard Power connector; 1 x 20-pin ATX Power connector; 1 x Front Panel header; 1 x CPU-FAN connector (3-pin); 1 x Chassis-FAN connector (3-pin); 1 x JFSB1 connector; 1 x IRDA connector; 1 x PC-PCI connector
Advanced features
Provides Trend ChipAwayVirus® On Guard
Provides on-board PS/2 mouse and PS/2 keyboard ports
Two USB ports supported
Provides infrared interface
Supports Windows 95/98 software power-down
Supports external modem ring power-on
Supports wake-up on LAN and wake-up on internal modem
Supports auto fan off when the system enters suspend mode
On-board LM80 supports system monitoring (monitors system temperature,voltages, chassis intrusion and fan speed) (manufacturing option)
On-board MAXIM1617 monitors the CPU temperature (manufacturing option)
Provides management application such as ManageEasy and LDCM(LANDesk Manager) (manufacturing option)
Supports keyboard password power-on function
Supports SecurityEasy function (manufacturing option)
System status resumes after AC power failure
BIOS
Licensed advanced AWARD BIOS, supports flash ROM BIOS with 2MB memory size, plug and play ready
Supports IDE CD-ROM or SCSI boot up
Green function
Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed Power Management)
Supports three green modes: Doze, Standby and Suspend
Form factor & Dimensions
ATX; ca. 305 x 194 mm
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
