Produktbeschreibung

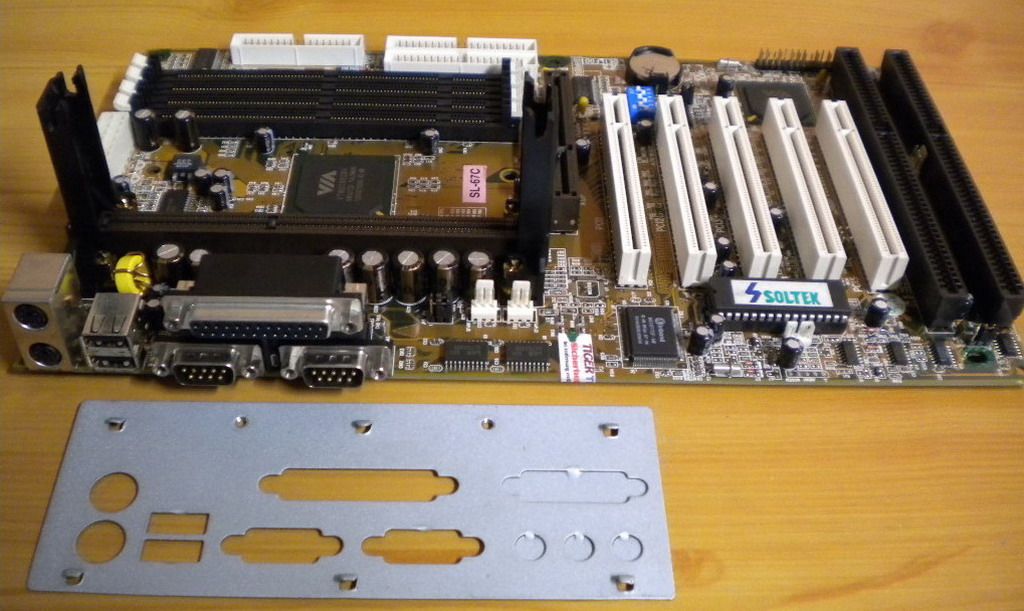

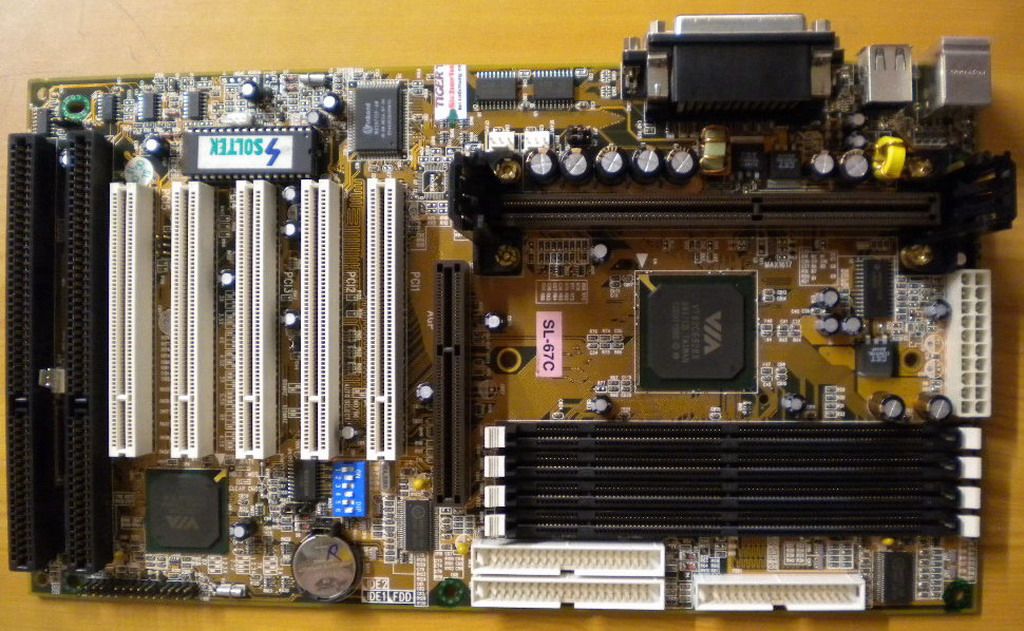

Soltek SL-67C Mainboard + Blende
2x ISA Slot 1 VIA 693 Chipsatz AGP PCI USB
Technische Daten
CPU
Supports Intel Pentium II, Deschutes, and Celeron (Mendocino) CPUs using SLOT1 at 233 ~ 533 MHz PII/Celeron (Mendocino) or 800MHz Deschutes
Supports CPU voltage autodetect circuit
Supports 66/100MHz Bus Clock with autodetect (BIOS provides 103/112 MHz Bus Clock without auto detect)
L2 Cache
PII (Deschutes) supports 256K/512k write back cache with Pipelined Burst SRAMs
CHIPSET
VIA 693 chipset
PCI Rev 2.1, 5V, 33MHz interface compliant
Supports AGP 1x/2x Mode, 3.3V AGP (Accelerated Graphics Port) slot
MEMORY
Memory range from 8MB (minimum) to 1GB (SDRAM) (maximum) with DRAM Table Free configurations
Supports SDRAM with 12/10/8ns DRAM speed
Supports 4 pcs 168pin DIMM sockets (3.3V Unbuffered type)
DRAM supports ECC or Parity function
EXPANSION SLOT
1 x AGP slot
5 x PCI slots
2 x ISA slots
Super I/O Function
Integrated USB (Universal Serial Bus) controller with two USB ports.
Supports 2 IDE channels with 4 IDE devices (including 120MB IDE floppy)
Provides PCI IDE Bus Master function and supports Ultra DMA33 function
One floppy port
Two high speed 16550 FIFO UART ports
One parallel port with EPP/ECP/SPP capabilities
PS/2 mouse connector
Built-in RTC, CMOS, keyboard controller on single I/O chip
Peripherals boot function (with ATX power)
Other Functions
Supports CPU temperature warning function (optional)
Provides DIP switch setting
Supports 66/100MHz Bus Clock
Supports keyboard Power On function
Supports Wake On LAN function
BIOS supports 103/112MHz Bus clock.
SYSTEM BIOS
AWARD Plug and Play BIOS
Supports Advanced Power Management Function
Flash Memory for easy upgrade
FORM FACTOR
ATX Size, ca. 30.5cm*17cm
Lieferumfang
Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
