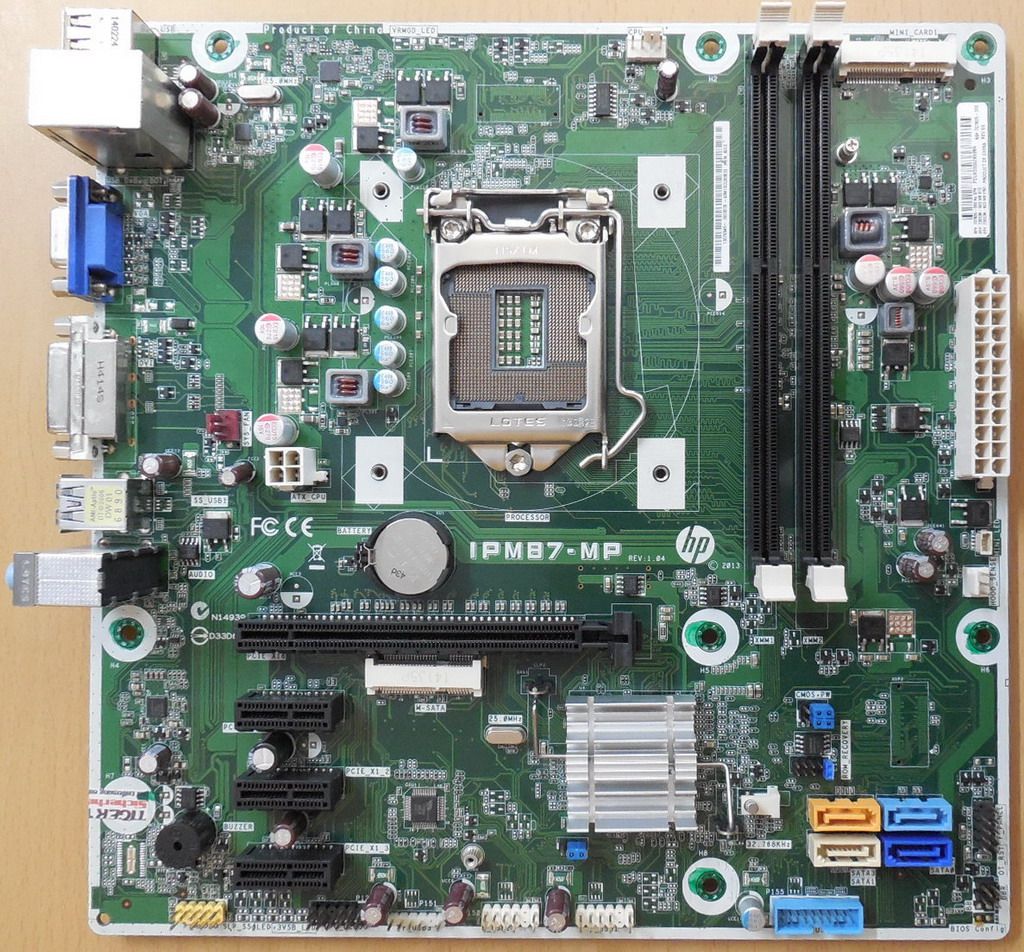

HP Memphis-S IPM87-MP Mainboard 707825-003 732239-503 732239-603 LGA 1150* m1093

HP Memphis-S IPM87-MP Rev 1.04 Mainboard 707825-003 732239-503 732239-603 Intel Sockel 1150

Technische Daten

Marke       HP

HP P/N       707825-003 / 732239-503 / 732239-603

HP Model       Memphis-S

Hersteller       Pegatron

Model       IPM87-MP Rev 1.04

Geeignet für       HP Pavilion 500 oder baugleich

Sockel       Intel LGA 1150

FSB       prozessorabhängig

Prozessor

Intel® Haswell Core™ i7 (i7-4770, i7-4771, i7-4790, i7-4790S), Core™ i5 (i5-4430, i5-4440, i5-4460, i5-4460S, i5-4570, i5-4670), Core™ i3 (i3-4130, i3-4150, i3-4160, i3-4330), Pentium® (G1840, G3220, G3240, G3250) und Celeron® (G1820)

Chipset       Intel® H87 Express-Chipsatz

Memory       2 x 240-Pin DDR3-RAM-Steckplätze, PC3-10600(DDR3-1333) / PC3-12800(DDR3-1600), unbuffered 1.5V; (Max 16GB); Dual-Channel unterstützt

Steckplätze       1 x PCI-Express x16 (Gen3.0); 3 x PCI-Express x1 (Gen2.0); 1 x mSATA; 1 x PCIe Mini Card Slot

VGA       prozessorabhängig

Audio       IDT 92HD65C 5.1 Channel High Definition Audio Codec

LAN       Realtek® RTL8151GH Gigabit Ethernet LAN solution 10/100/1000 Ethernet

Anschlüsse Intern

4 x SATA III 6Gb/s Connectors

1 x Front USB3.0 Connector

3 x Front USB2.0 Connectors

1 x Front Audio Connector

1 x Front Panel Connector

1 x Buzzer

1 x Mini_LED WLAN Activity LED Connector

1 x One Touch Reset connector

1 x HOOD_SENSE Connector

1 x 4-Pin CPU FAN Connector

1 x 3-Pin SYSTEM FAN Connector

1 x PSWD Jumper

1 x CMOS Jumper

1 x BBR Jumper

1 x FDO Jumper

1 x ROM_Recovery Header

1 x 24-pin ATX Mainboard Power Connector

1 x 4-pin 12V CPU Power Connector

1 x Mini Card Slot

Anschlüsse Extern       4 x USB2.0, 2 x USB3.0, 1 x LAN, 1 x VGA, 1 x DVI-D, 3 x 3,5 mm Klinke Audio Anschlüsse

Formfaktor       HP Pavilion 500 oder baugleich

Lieferumfang

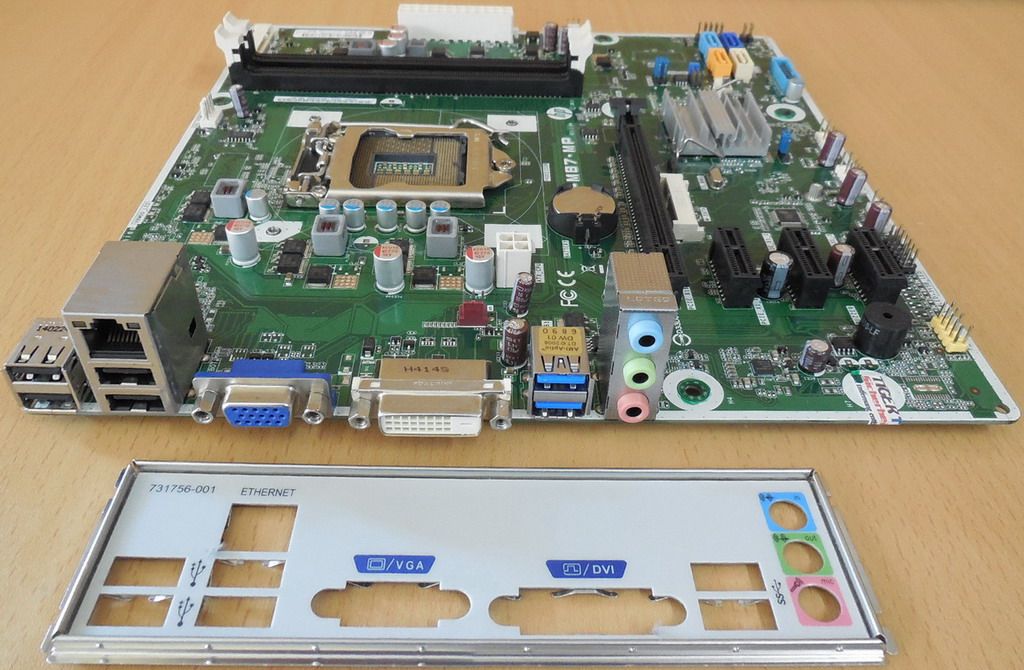

Das HP Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
