Produktbeschreibung

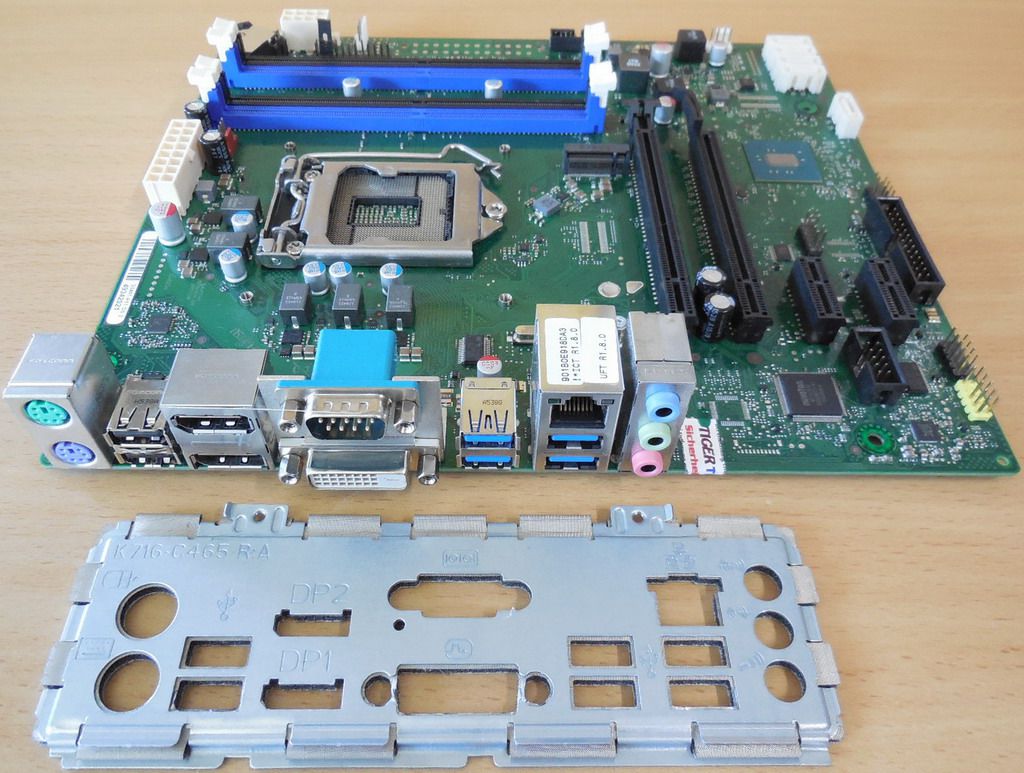

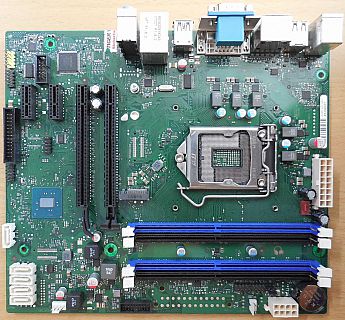

Fujitsu Esprimo P756 D3401-A11 GS2 Mainboard + Blende Intel Q150 Sockel 1151 DDR4
Technische Daten
Hersteller Fujitsu
Model D3401-A11 GS2
CPU-Unterstützung
Intel® Core™ i7 / i5 / i3 – (6 gen.) processor series
Intel® Pentium® / Celeron® processor series
(For details on supported processors please refer to the Fujitsu website)
Sockel Socket LGA1151 – up to 65W TDP
Chipsatz Intel® Q150 Express Chipset
RAM 4 x DIMM Sockets DDR4, max. 64GB, Dual Channel, 1866MHz / 2133MHz, UDIMM, 288-pin, non-ECC. Effective memory speed depends on installed processor.
(For details on recommended RAM, please refer to the Fujitsu website)
VGA Intel® HD Graphics (depends on installed CPU) controller, upgradeable with PCI Express x16 graphics card
LAN Intel 10/100/1000 MBit/s GbE Controller (Wake-on-LAN (WoL), Remote Boot)
Audio Realtek ALC671, 5.1-channel, High Definition Audio Codec
Erweiterungssteckplätze 1x PCI-E x16; 1x PCI-E x16 (4 Lanes); 2x PCI-E x1
Intern Echtzeituhr/Kalender mit Batteriepufferung
5 x SATA3 Ports (bis zu 6GBit/s; NCQ, AHCI)
1 x M.2 2280 SSD Connector
1 x 4-pin CPU FAN Connector
1 x 4-pin System FAN Connector
1 x Audio Front Panel Connector (AFP)
1 x COM2 Connector
1 x Parallel Connector
1 x Chassis Intrusion (Case Open) Connector
1 x LPC Connector
1 x Front USB3 connector
2 x USB2.0-Anschluss Connector für insgesamt 4 weitere USB2.0 Ports z.B. via Blende
1 x Front Panel connector
1 x 16-pin 12V Mainboard Power Connector
1 x 8-pin SATA Power
Externe Anschlüsse 1 x DVI-D; 2 x DisplayPort; 1 x PS/2 Maus, 1 x PS/2 Tastatur, 1 x Seriell, 1 x (RJ-45) LAN, 2 x USB2.0, 4 x USB3.1 Gen1, 1 x Line-In, 1 x Line-Out, 1 x Mic
Hardware Monitoring
FAN monitored and controlled System (FAN2); TEMP monitored CPU / ONB1 / ONB2 / ONB3
BIOS
modified and adapted by Fujitsu Siemens Computers; Recovery BIOS
Special Features
Silent Fan LT Independent temperature related processor fan and system fan control
System Guard View Silent Fan LT features
Silent Drive Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
Keyboard Power Button Fujitsu Technology Solutions Keyboard Power Button Support
Low Power Soft Off Reduced Energy consumption in shut down
USB Power Off Enable/Disable USB Power via BIOS in shut down mode
Support for FTS PCIe VGA adapter card - Optional D3453 VGA card must be equipped on PCIe x4 (mechanical x16) Slot
Low Power Active Mode
Special sleep mode, which replaces the conventional Windows sleepmode in order to significantly reduce the idle power consumption.Low Power Active Mode is managed with the Workplace Power andCommunication Settings utility, which can be found in the Control Panel inthe System and Security category.
Logo Boot Option / Intel On Screen Branding
Formfaktor μATX; 24.4 x 21.5 cm (z.B. Esprimo P756)
Lieferumfang
Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
