MSI Z270 Gaming Plus Mainboard NEU OVP Intel Sockel 1151 MS-7A75 Ver 1.0* m889

MSI Z270 Gaming Plus Mainboard NEU OVP Intel Sockel 1151 MS-7A75 Ver 1.0

Technische Daten

CPU

Supports 7th / 6th Gen Intel® Core™ i3 / i5 / i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151

Chipset

Intel® Z270 Chipset

Main Memory

4 x DDR4 memory slots, support up to 64GB

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

- 7th Gen processors support DDR4 3800(OC) / 3600(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2600(OC) / 2400 / 2133 MHz*

- 6th Gen processors support DDR4 3600(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2600(OC) / 2400(OC) / 2133 MHz*

*Please refer www.msi.com for more information on compatible memory.

Slots

2 x PCIe 3.0 x16 slots (supports x16/x4 mode)

4 x PCIe 3.0 x1 slots

Multi-GPU

Supports 2-Way AMD® CrossFire™ Technology

Onboard Graphics

1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x2160@60Hz, 1920x1200@60Hz

Storage

6 x SATA 6Gb/s ports*

1x M.2 slots (Key M)

- Support up to PCIe 3.0 x4 and SATA 6Gb/s

- Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**

- Supports 2242 / 2260 / 2280 / 22110 storage devices

- Intel® Optane™ Memory Ready for all M.2 slots

Supports Intel® Smart Response Technology for Intel Core™ processors

*The SATA1 port will become unavailable when M.2 SATA SSD has been installed in M.2 slot.

**The Turbo U.2 Host Card is not included, please purchase separately.

***Intel® Optane™ Technology is only supported when using 7th Gen processors. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID (optional)

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio

Realtek® ALC892 Codec

7.1-Channel High Definition Audio

LAN

Intel® I219-V Gigabit LAN controller

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)

2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

1 x 4-pin CPU fan connector

1 x 4-pin water pump fan connector

4 x 4-pin system fan connectors

1 x Front panel audio connector

2 x Front panel connectors

1 x TPM module connector

1 x Chassis Intrusion connector

1 x Serial port connector

1 x Parallel port connector

1 x Clear CMOS jumper

Back Panel I/O Ports

1 x PS/2 mouse & keyboard combo port

2 x USB 2.0 ports

1 x VGA port

1 x DVI-D port

1 x DisplayPort

1 x LAN (RJ45) port

4 x USB 3.1 Gen1 Type-A ports

6 x OFC audio jacks

Dimension

12.0 in. x 8.9 in. (30.5 cm x 22.5 cm)

ATX Form Factor

Mounting

6 mounting holes

Lieferumfang

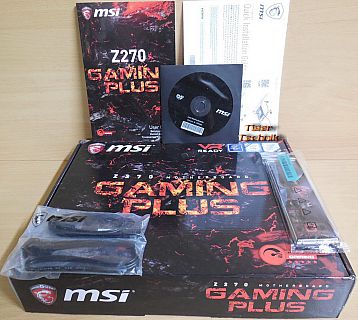

Mainboard mit Zubehör laut Handbuch * NEU & OVP *

Abbildung ähnlich
