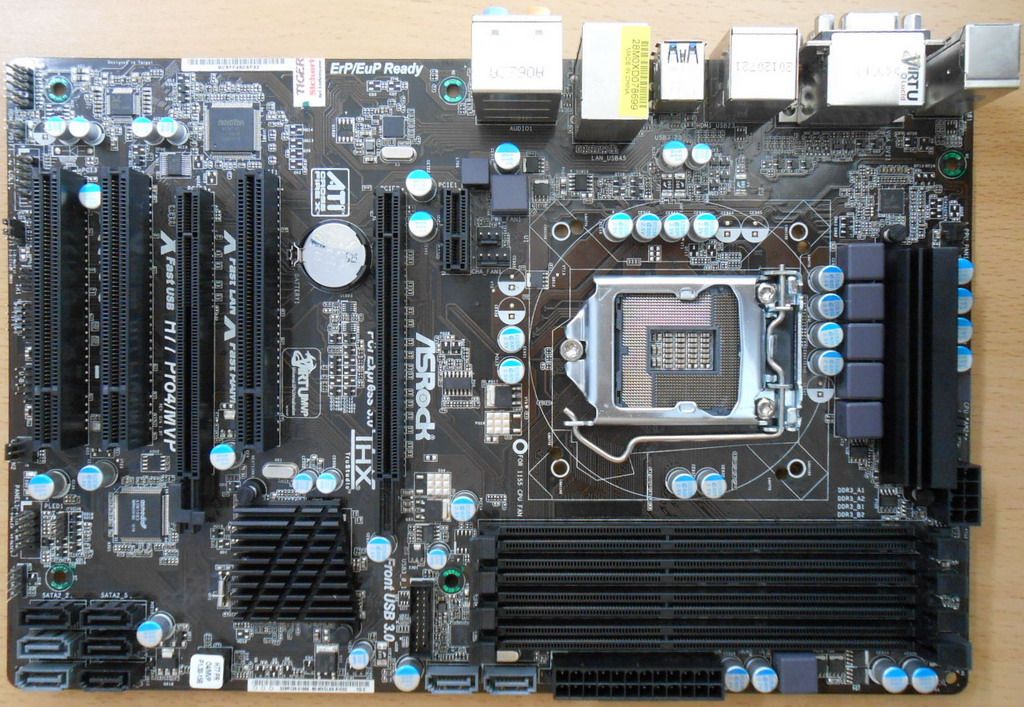

ASRock H77 Pro4 MVP Rev 1.07 Mainboard +Blende Intel H77 Sockel 1155 DDR3* m725

ASRock H77 Pro4 MVP Rev 1.07 Mainboard + Blende

Intel H77 Sockel 1155 DDR3

Technische Daten

CPU

- Supports 3rd and 2nd Generation Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1155 Package

- Digi Power Design

- 4 + 2 Power Phase Design

- Supports Intel® Turbo Boost 2.0 Technology

- Supports Hyper-Threading Technology

Chipsatz

- Intel® H77

- Supports Intel® Rapid Start Technology and Smart Connect Technology with Intel® Ivy Bridge CPU

*Intel® Rapid Start Technology and Smart Connect Technology are only supported under Windows® 7 OS or later versions.

Arbeitsspeicher

- Dual Channel DDR3 memory technology

- 4 x DDR3 DIMM slots

- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 32GB*

- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**The highest supported DRAM frequency depends on the CPU you’ve installed. For detailed CPU specifications, please refer to Intel® official website.

***In order to maximize the system memory, please install 8GB memory module with 16 cells

BIOS

- 64Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment

Grafik

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video 2.0, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 2500/4000 with Intel® Ivy Bridge CPU

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® HD Graphics 2000/3000, Intel® Advanced Vector Extensions (AVX) with Intel® Sandy Bridge CPU

- Pixel Shader 5.0, DirectX 11 with Intel® Ivy Bridge CPU. Pixel Shader 4.1, DirectX 10.1 with Intel® Sandy Bridge CPU

- Max. shared memory 1760MB with Intel® Ivy Bridge CPU. Max. shared memory 1759MB with Intel® Sandy Bridge CPU

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI and HDMI ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® Vista™ and Windows® 7.

***Intel® InTru™ 3D is only supported under Windows® 7 and Windows® 7 x64.

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Steckplätze

- 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)

- 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode)

- 1 x PCI Express 2.0 x1 slot

- 3 x PCI slots

- Supports AMD Quad CrossFireX™ and CrossFireX™

*PCIe Gen3 is supported on 3rd Generation of Intel® Core™ i5 and Core™ i7 CPUs.

SATA3

- 2 x SATA3 6.0 Gb/s connectors by Intel® H77, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions

- 2 x SATA3 6.0 Gb/s connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug functions

USB 3.0

- 2 x Rear USB 3.1 Gen1 ports, support USB 1.0/2.0/3.0 up to 5Gb/s

- 1 x Front USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports), supports USB 1.0/2.0/3.0 up to 5Gb/s

Anschluss

- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug functions

- 4 x SATA3 6.0 Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

- 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)

- 1 x Power Fan connector (3-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

Blende

I/O Panel

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 2 x Ready-to-Use USB 3.1 Gen1 Ports

- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Einzigartige Features

- ASRock Extreme Tuning Utility (AXTU)

- ASRock Instant Boot

- ASRock Instant Flash

- ASRock APP Charger

- ASRock XFast USB

- ASRock XFast LAN

- ASRock XFast RAM

- ASRock Crashless BIOS

- Lucid Virtu Universal MVP

- ASRock On/Off Play Technology

- ASRock OMG (Online Management Guard)

- ASRock Internet Flash

- ASRock Dehumidifier Function

- Hybrid Booster:

- ASRock U-COP

- Boot Failure Guard (B.F.G.)

- Combo Cooler Option (C.C.O.)

- Good Night LED

*Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated.

**LucidLogix Virtu MVP only supports Windows® 7 or Windows® 8.

Hardware überwachung

- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Formfaktor

- ATX Form Factor: 12.0-in x 7.9-in, 30.5 cm x 20.1 cm

- All Solid Capacitor design

Betriebssystem

- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / Vista™ 32-bit / Vista™ 64-bit / XP 32-bit / XP 64-bit

*Windows® 8.1 is supported with Intel® Ivy Bridge CPU for onboard VGA.

Zertifizierungen

- FCC, CE

- ErP/EuP Ready (ErP/EuP ready power supply is required)

Lieferumfang

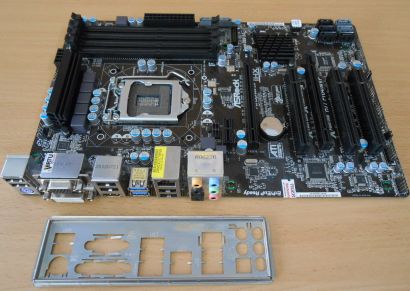

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
